Aedrome/Heliport VTBS

VTBS — Bangkok/ Suvarnabhumi International Airport

VTBS AD 2.1 AERODROME LOCATION INDICATOR AND NAME

VTBS — Bangkok/ Suvarnabhumi International Airport

VTBS AD 2.2 AERODROME GEOGRAPHICAL AND ADMINISTRATIVE DATA

1	ARP coordinates and site at AD	134109NTAD_HP;GEO_LAT;209 1004456ETAD_HP;GEO_LONG;209 Midpoint between taxiways GTTWY;TXT_DESIG;104, HTTWY;TXT_DESIG;99, H2TTWY;TXT_DESIG;101 and H3TTWY;TXT_DESIG;102
2	Direction and distance from (city)	25 km East of BangkokTAD_HP;AIRPORT_LOCATION;209
3	Elevation/Reference temperature	8 ftTAD_HP;UOM_DIST_VER;209 (2 m) / 32.4°CTAD_HP;UOM_REF_T;209
4	Geoid undulation at AD ELEV PSN	-94TAD_HP;VAL_GEOID_UNDULATION;209 ftTAD_HP;UOM_GEOID_UNDULATION;209 (-29 m)
5	MAG VAR/Annual change	0° 42' WTAD_HP;VAL_MAG_VAR;209 (2025TAD_HP;DATE_MAG_VAR;209) / 0° 2' ETAD_HP;VAL_MAG_VAR_CHG;209
6	AD Administration, address, telephone, telefax, telex, AFS	999 Moo 1 Nong Prue, Bangphli, Samut PrakanTPOSTAL_ADDR;TXT_ADDRESS;83 10540TPOSTAL_ADDR;TXT_POSTAL_CODE;83, ThailandTPOSTAL_ADDR;TXT_COUNTRY;83 Tel: +662 132 1888TTEL_CONTACT;TXT_PHONE;109 Fax: +662 132 1889 URL: https://suvarnabhumi.airportthai.co.th AFS: VTBSYDYXTONLINE_CONTACT;TXT_URL;139
7	Types of traffic permitted (IFR/VFR)	IFRTRULES_PROC;TXT_TITLE;462 / Authorized VFRTRULES_PROC;TXT_TITLE;461
8	Remarks	Operator: Airports of Thailand Public Company LimitedTORG_AUTH;TXT_NAME;103 (AOT)

VTBS AD 2.3 OPERATIONAL HOURS

1	Aerodrome operator	H24
2	Customs and immigration	H24
3	Health and sanitation	H24
4	AIS Briefing Office	H24
5	ATS Reporting Office (ARO)	H24
6	MET Briefing Office	H24
7	ATS	H24
8	Fuelling	H24
9	Handling	H24
10	Security	H24
11	De-icing	NIL
12	Remarks	AIS Briefing Office and ATS Reporting Office (ARO): Located at 2nd floor, the central block building, Don Mueang International Airport Tel: +66 2131 3901-3 Fax: +66 2131 3904 AFTN: VTBSZPZX E-mail: [email protected]

VTBS AD 2.4 HANDLING SERVICES AND FACILITIES

1	Cargo-handling facilities	Available from Thai Airways International Plc.TAD_HP_GND_SER;TXT_NAME;113and WFS-PG Cargo Co., Ltd. (BFS Cargo)TAD_HP_GND_SER;TXT_NAME;544
2	Fuel/oil types	Jet A1TFUEL;CODE_CAT;525
3	Fuelling facilities/capacity	Bangkok Aviation Fuel Service Public Company LimitedTUNIT;TXT_NAME;104 (BAFSTAD_HP_SPLY_SER;TXT_NAME;41) URL: www.bafsthai.comTONLINE_CONTACT;TXT_URL;1546 Email: [email protected]TONLINE_CONTACT;TXT_EMAIL;1547 Email: [email protected]TONLINE_CONTACT;TXT_EMAIL;1548 Tel: +662 834 8959TTEL_CONTACT;TXT_PHONE;1609 Fax: +662 929 5480TTEL_CONTACT;TXT_FAX;1609 Fuel Dispenser Truck: 42 Fuel Refueller Truck: 4 - 2 Capacity: 65,000 L - 1 Capacity: 40,000 L - 1 Capacity: 35,000 L Aircraft Service International Group (THAILAND) CO.,LTD. (ASIGTAD_HP_GND_SER;TXT_NAME;1153) URL: www.menziesaviation.comTONLINE_CONTACT;TXT_URL;1552 Email: [email protected]TONLINE_CONTACT;TXT_EMAIL;1552 [email protected] Tel: +662 327 3293-7TTEL_CONTACT;TXT_PHONE;1612 Fax: +662 327 3298TTEL_CONTACT;TXT_FAX;1612 Fuel Dispenser Truck: 10 Fuel Refueller Truck: 2 Capacity: 35,000 L
4	De-icing facilities	NIL
5	Hangar space for visiting aircraft	Limited, operated by Thai Airways International Plc.TAD_HP_GND_SER;TXT_NAME;113 For Hangar space, please contact: Mrs. Apicha Runglapho Administrative Secretary,SBIA MRO Operations Department E-mail: [email protected] Tel: +662 137 5031
6	Repair facilities for visiting aircraft	Major and minor repair available from Thai Airways International Plc. and line maintenance from International Airlines Technical Pool. For Repair facilities, please contact: Mrs. Apicha Runglapho Administrative Secretary,SBIA MRO Operations Department E-mail: [email protected] Tel: +662 137 5031
7	Remarks	The Airport has provided ground handling agents as following: Worldwide Flight Services Bangkok Air Ground Handling Co., Ltd. (BFS Ground)TORG_AUTH;TXT_NAME;178 URL: www.bangkokflightservices.comTONLINE_CONTACT;TXT_URL;766 Schedule Airlines and Seasonal Charter: Ekpol Mekvishai, Contracts Manager Email: [email protected]TONLINE_CONTACT;TXT_EMAIL;827 Tel: +668 5055 7671TTEL_CONTACT;TXT_PHONE;893 Ad Hoc Charter and Corporate Jet: Ekpol Mekvishai, Contracts Manager Email: [email protected]TONLINE_CONTACT;TXT_EMAIL;827 Tel: +668 5055 7671TTEL_CONTACT;TXT_PHONE;893 Fax: +662 131 5099 TTEL_CONTACT;TXT_FAX;893 General Inquiry: Email: [email protected]TONLINE_CONTACT;TXT_EMAIL;828 Tel: +662 131 5000TTEL_CONTACT;TXT_PHONE;894 Fax: +662 131 5077TTEL_CONTACT;TXT_FAX;894 Fax: +662 131 5099 TTEL_CONTACT;TXT_FAX;895 Thai Airways International Public Co.Ltd.TORG_AUTH;TXT_NAME;180 (TG) URL: www.thaiairways.comTONLINE_CONTACT;TXT_URL;751 Ground Handling Services: Email: [email protected]TONLINE_CONTACT;TXT_EMAIL;820 SITA: BKKKATGTONLINE_CONTACT;TXT_URL;820 Tel: +662 137 1610TTEL_CONTACT;TXT_PHONE;888 Fax: +662 137 1675TTEL_CONTACT;TXT_FAX;888 Ad Hoc Charter Handling Services: Email: [email protected]TONLINE_CONTACT;TXT_EMAIL;821 SITA: BKKZMTGTONLINE_CONTACT;TXT_URL;821 Tel: +662 134 5067-8TTEL_CONTACT;TXT_PHONE;889 Catering Services: URL: www.thaicatering.comTONLINE_CONTACT;TXT_URL;823 Email: [email protected]TONLINE_CONTACT;TXT_EMAIL;822 SITA: BKKDCTGTONLINE_CONTACT;TXT_URL;822 Tel: +662 137 2101-5TTEL_CONTACT;TXT_PHONE;890 Tel: +662 137 2410TTEL_CONTACT;TXT_PHONE;1613 Fax: +662 137 2450TTEL_CONTACT;TXT_FAX;890 LSG SKY CHEFSTORG_AUTH;TXT_NAME;179 URL: www.Isgskychefs.com TONLINE_CONTACT;TXT_URL;767 Email: [email protected]TONLINE_CONTACT;TXT_EMAIL;824 Tel: +662 131 1900TTEL_CONTACT;TXT_PHONE;785 Tel: +662 131 1952TTEL_CONTACT;TXT_PHONE;1088 (24 hrs) Tel: +668 7970 3884TTEL_CONTACT;TXT_PHONE;1089 (24 hrs) Bangkok Air Catering Co, Ltd. (BAC) URL: www.bangkokaircatering.comTONLINE_CONTACT;TXT_URL;829 Email: [email protected]TONLINE_CONTACT;TXT_EMAIL;829 Tel: +662 131 7500TTEL_CONTACT;TXT_PHONE;896 Fax: +662 131 7599 TTEL_CONTACT;TXT_FAX;896

VTBS AD 2.5 PASSENGER FACILITIES

1	Hotels	At AD and in the city.
2	Restaurants	At AD and in the city.
3	Transportation	Airport Rail Link, buses, taxis and car hire from the AD.
4	Medical facilities	Medical clinic which provides first aid and emergency response at AD is open 24 hours. Emergency number is +662 132 7777TTEL_CONTACT;TXT_PHONE;918.
5	Bank and Post Office	At AD.
6	Tourist Office	At AD.
7	Remarks	For further information visit Internet address : https://suvarnabhumi.airportthai.co.th

VTBS AD 2.6 RESCUE AND FIRE FIGHTING SERVICES

1	AD category for fire fighting	Category 10TAD_HP_GND_SER;CODE_CAT;557
2	Rescue equipment	Adequately provided as recommended by ICAOTAD_HP_GND_SER;Annotation:1282.eng;557
3	Capability for removal of disabled aircraft	Capable of handling all aircraft up to B744TAD_HP_GND_SER;Annotation:1283.eng;557 dimensions & weight, operated by Thai Airways International Plc.
4	Remarks	For removal of disabled aircraft, please contact: Airside Operations Department Tel: +662 132 6801 Tel: +668 9202 0341 (24 hrs) Fax: +662 132 6819 Email: [email protected]

VTBS AD 2.7 SEASONAL AVAILABILITY - CLEARING

1	Types of clearing equipment	NIL
2	Clearance priorities	NIL
3	Remarks	The AD is available all seasons.

VTBS AD 2.8 APRONS, TAXIWAYS AND CHECK LOCATIONS/POSITIONS DATA

1	Apron surface and strength	Surface: ConcreteTAPRON;CODE_COMPOSITION;44 Main Apron, East Apron and West Apron Strength: PCR 1360TAPRON;VAL_PCN_CLASS;44/RTAPRON;CODE_PCN_PAVEMENT_TYPE;44/DTAPRON;CODE_PCN_PAVEMENT_SUBGRADE;44/WTAPRON;CODE_PCN_MAX_TIRE_PRESSURE;44/TTAPRON;CODE_PCN_EVAL_METHOD;44 SAT-1 Apron Strength: PCR 1010TAPRON;VAL_PCN_CLASS;44/RTAPRON;CODE_PCN_PAVEMENT_TYPE;44/ATAPRON;CODE_PCN_PAVEMENT_SUBGRADE;2064/WTAPRON;CODE_PCN_MAX_TIRE_PRESSURE;44/TTAPRON;CODE_PCN_EVAL_METHOD;44
2	Taxiway width, surface and strength	Minimum Width: 25 m Taxiways: B2, B3, B4, B5, B6, B7, B8, B9, B10, B11, B12 and B13 Taxiways: C, C1, C2, C8, C9 and C10 Taxiways: D1, D2, D3, D4, D5, D6, D7, D8 and D9 Taxiways: E, E1, E2, E3, E5, E6, E7, E8, E9, E10, E12, E13, E15, E17, E19 and E21 H, H1 and H2 Taxilanes: T1, T2, T3, T4, T5, T10, T11, T12, T13 and T14 Surface: Asphalt Strength: PCR 1730TTWY;VAL_PCN_CLASS;51/FTTWY;CODE_PCN_PAVEMENT_TYPE;51/DTTWY;CODE_PCN_PAVEMENT_SUBGRADE;51/XTTWY;CODE_PCN_MAX_TIRE_PRESSURE;51/TTTWY;CODE_PCN_EVAL_METHOD;51 Taxiways: F3, F5, F6, F7, F9, F10 and F15 Surface: Asphalt Strength: PCR 870TTWY;VAL_PCN_CLASS;2362/FTTWY;CODE_PCN_PAVEMENT_TYPE;2362/CTTWY;CODE_PCN_PAVEMENT_SUBGRADE;2362/XTTWY;CODE_PCN_MAX_TIRE_PRESSURE;2362/TTTWY;CODE_PCN_EVAL_METHOD;2362 Taxiways: B1 Taxilanes: T6, T7, T8, T9, T15, T16 and T17 Surface: Concrete Strength: PCR 1660/R/D/W/T Taxiways: D10 and D11Surface: Concrete Strength: PCR 1220/R/C/W/T Taxiways: J, J1, J2, J3 and J4 Taxiways: K Taxilanes: T18 and T19 Surface: Concrete Strength: PCR 900/R/A/W/T Taxiways: B Taxiways: C3, C4, C5, C6 and C7 Taxiways: G Taxiways: H3 and H4 Taxilanes: T12 Surface: Asphalt Strength: PCR 1730/F/D/X/T Surface: Concrete Strength: PCR 1660/R/D/W/T Taxiways: D Surface: Asphalt Strength: PCR 1730/F/D/X/T Surface: Concrete Strength: PCR 1220/R/C/W/T Taxiways: H5 and H6 Surface: Asphalt Strength: PCR 1730/F/D/X/T Surface: Concrete Strength: PCR 900/R/A/W/T Taxiways: F, F1, F2, F4, F8, F11 and F12 Taxiways: W, Y and Z Surface: Asphalt Strength: PCR 870/F/C/X/T Surface: Concrete Strength: PCR 1220/R/C/W/T
3	Altimeter checkpoint location and elevation	Location : At Apron Elevation : 4 ft TAD_HP;Annotation:50.eng;209
4	VOR checkpoints	NIL
5	INS checkpoints	See Aircraft Parking/Docking Chart - ICAO (Versos) for coordinates of aircraft stand.
6	Remarks	NIL

VTBS AD 2.9 SURFACE MOVEMENT GUIDANCE AND CONTROL SYSTEM AND MARKINGS

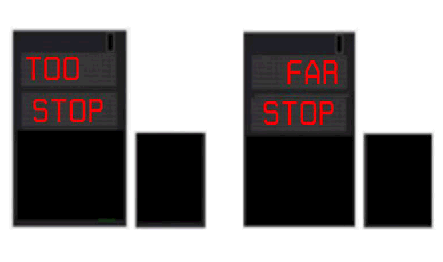

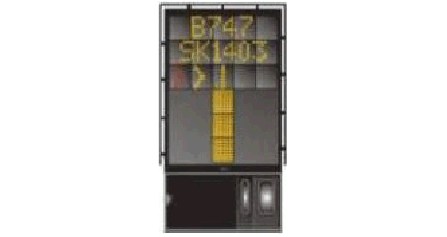

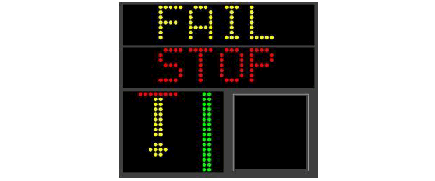

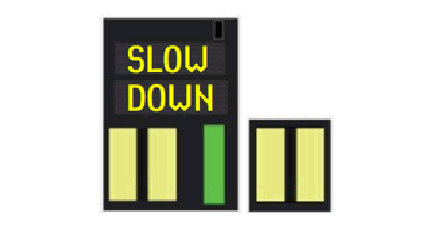

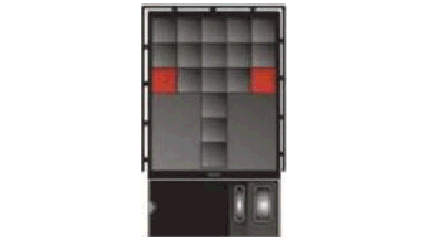

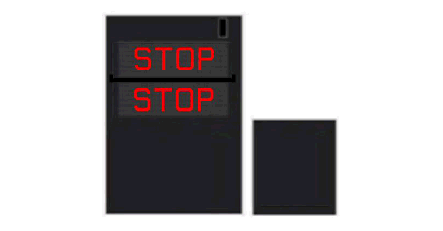

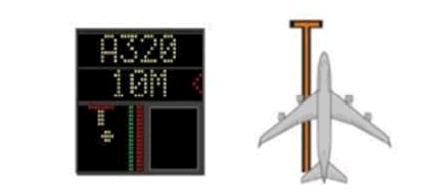

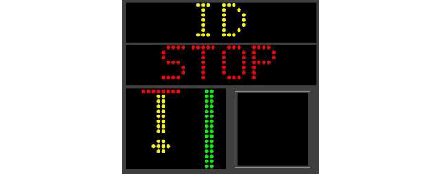

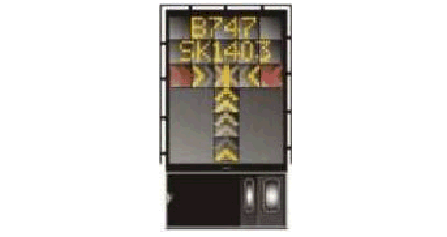

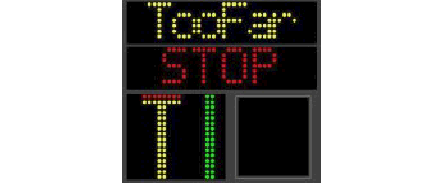

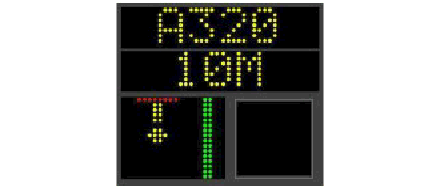

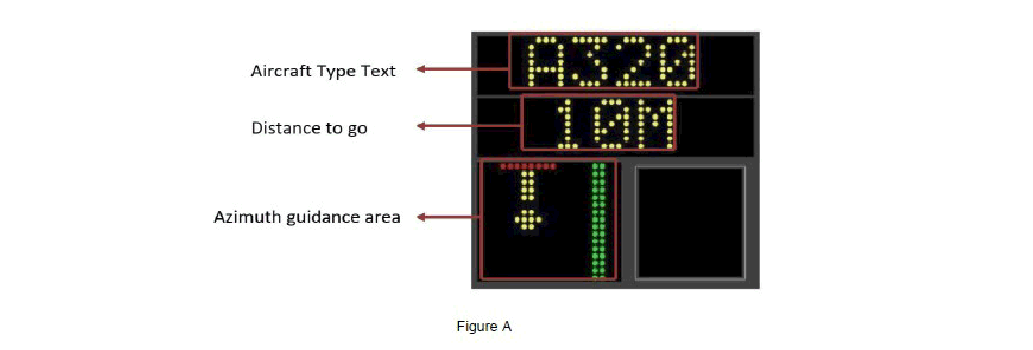

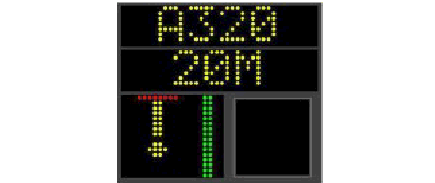

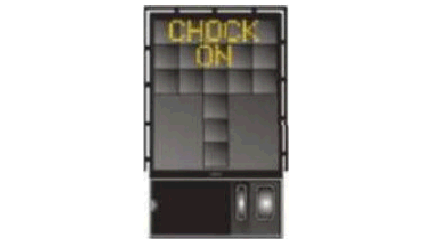

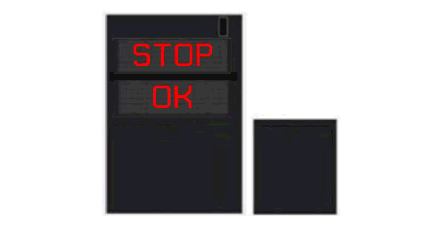

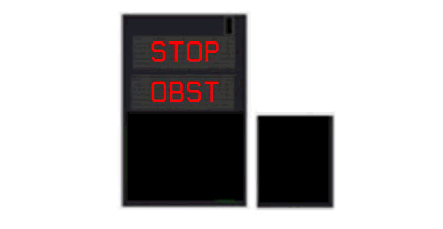

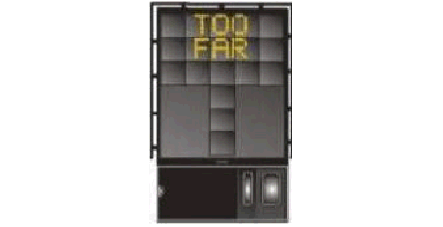

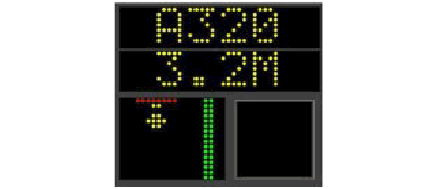

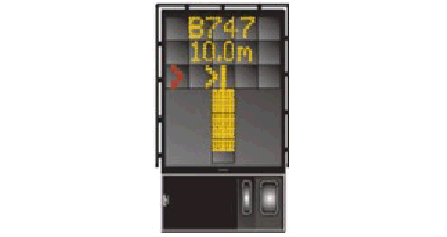

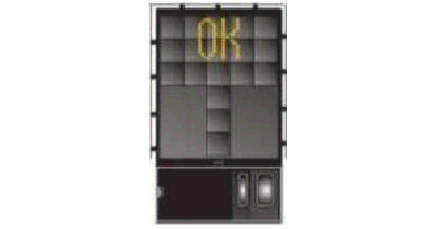

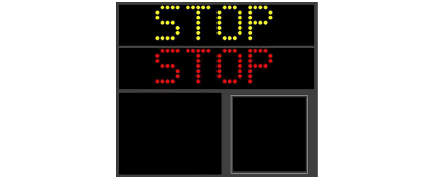

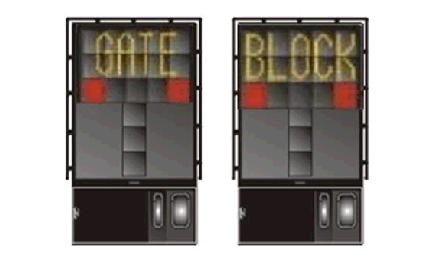

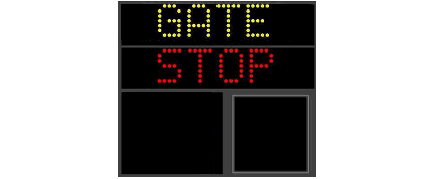

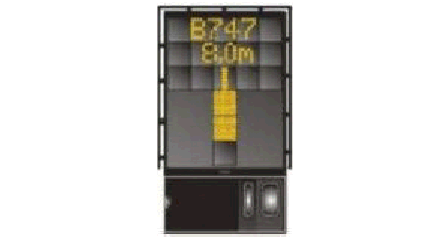

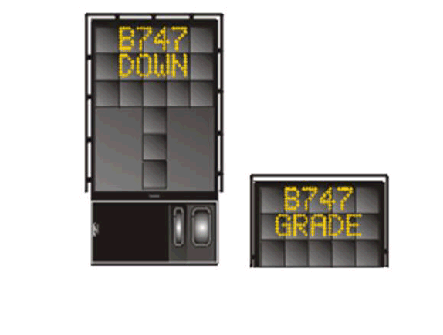

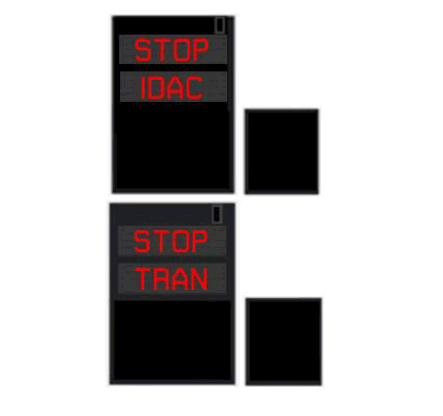

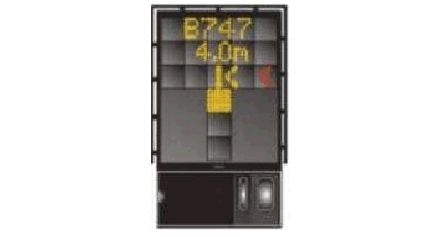

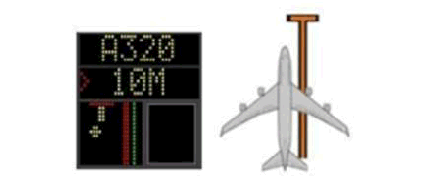

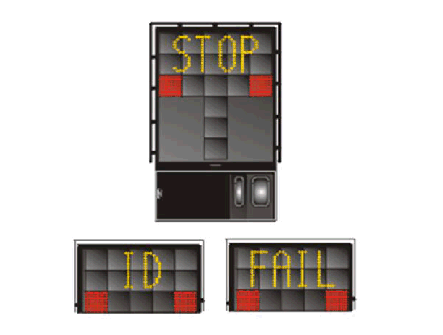

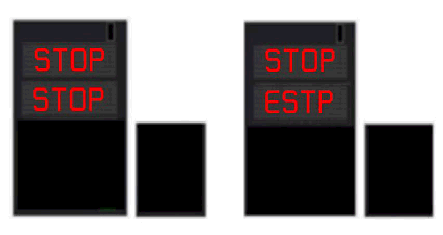

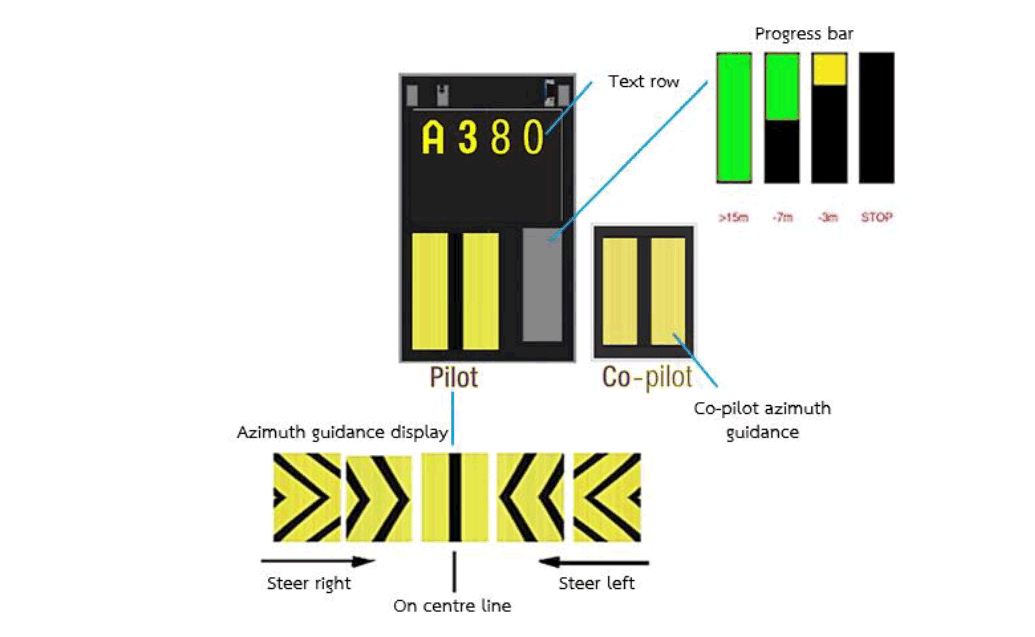

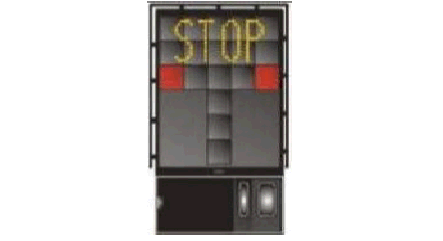

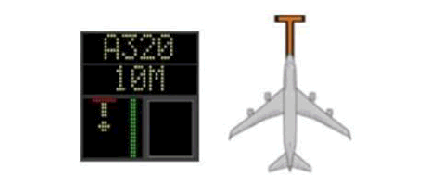

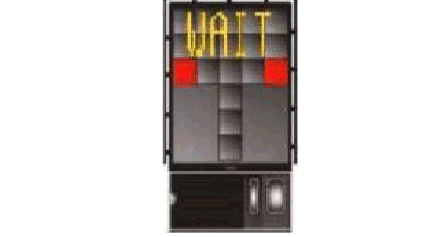

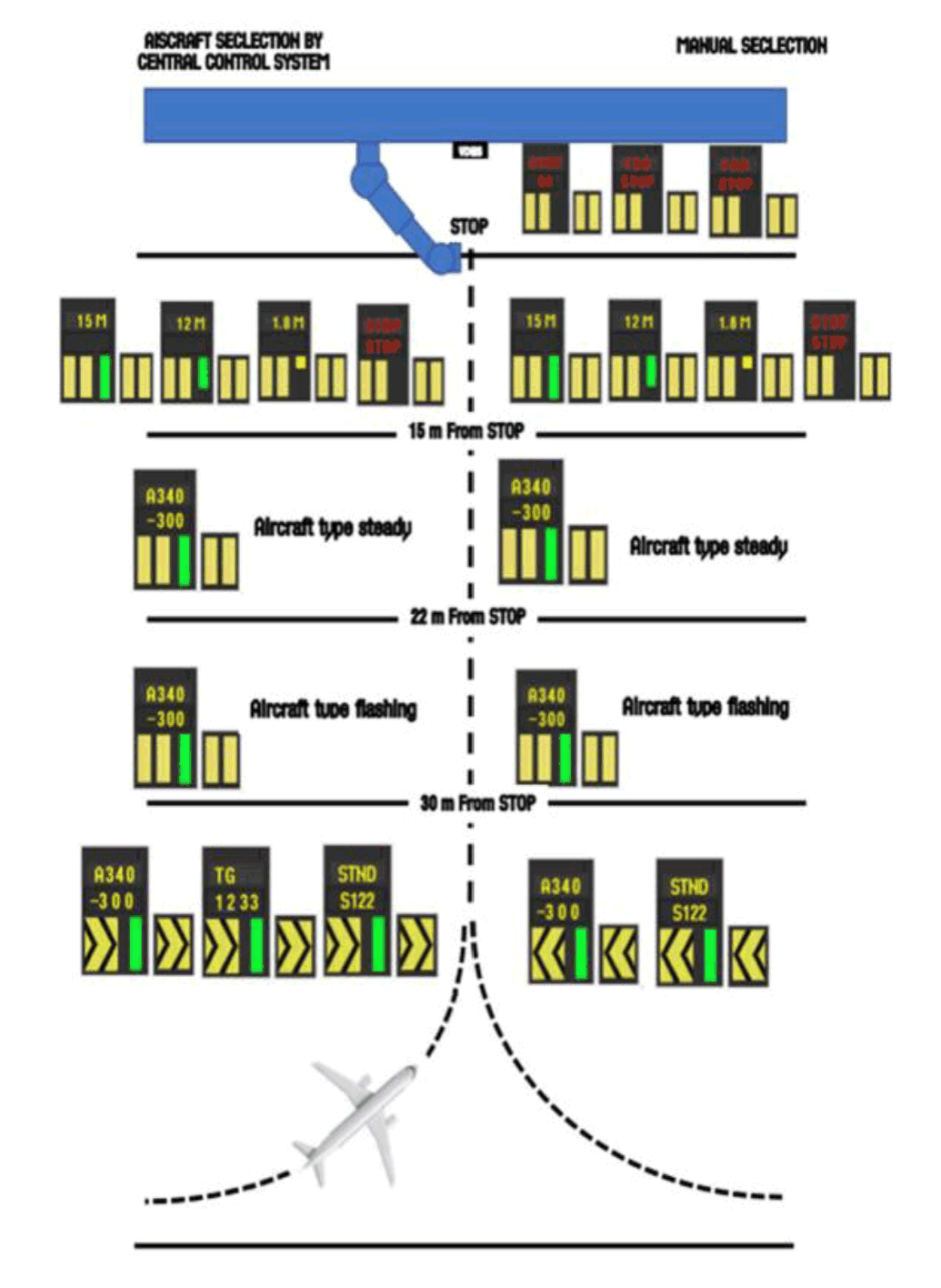

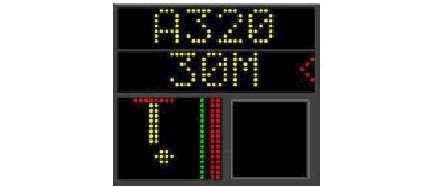

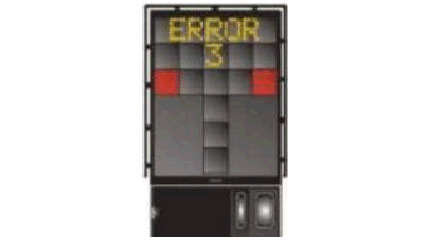

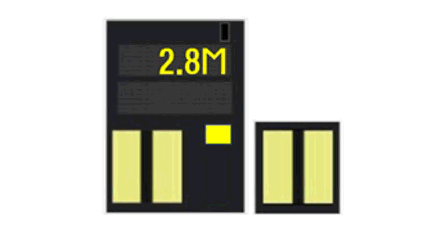

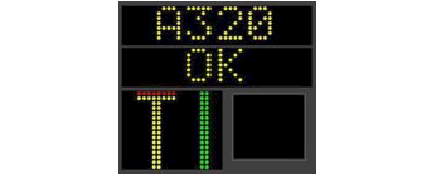

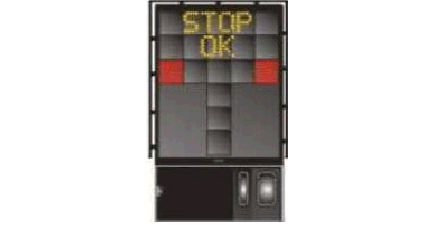

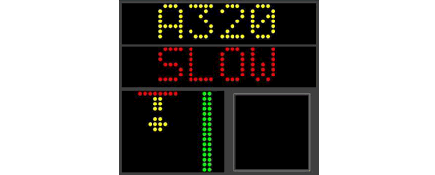

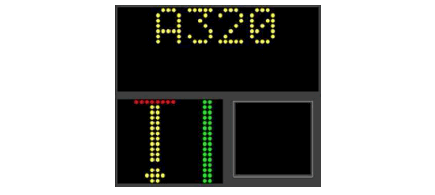

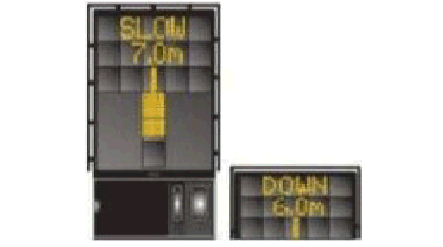

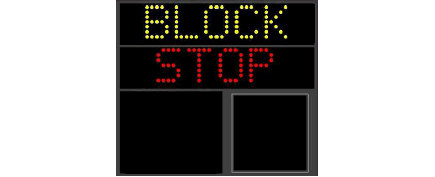

1	Use of aircraft stand ID signs, TWY guidelines and visual docking/parking guidance system of aircraft stands	Taxiing guidance signs at all intersections with TWY and RWY and at all holding positions. Guidelines at apron. Nose-in guidance at aircraft stands.
2	RWY and TWY markings and LGT	RWY: Designation, THRTRWY_MARKING;CODE_PSN;42, TDZTRWY_MARKING;CODE_PSN;43, Centre lineTRWY_MARKING;CODE_PSN;44, edgeTRWY_MARKING;CODE_PSN;45 and runway endTRWY_MARKING;CODE_PSN;46 marked and lighted. TWY: Centre lineTTWY_LGT_SYS;CODE_PSN;203 and edgeTTWY_LGT_SYS;CODE_PSN;204 marked and lighted.
3	Stop bars	Stop bars are installed at following locations: RWY 01/19TRWY;TXT_DESIG;154 - Taxiway B1TTWY;TXT_DESIG;52, B2TTWY;TXT_DESIG;53, B3TTWY;TXT_DESIG;54, B11TTWY;TXT_DESIG;62, B12TTWY;TXT_DESIG;63, B13TTWY;TXT_DESIG;64 RWY 02R/20LTRWY;TXT_DESIG;153 - Taxiway E1TTWY;TXT_DESIG;87, E2TTWY;TXT_DESIG;88, E3, E5TTWY;TXT_DESIG;89, E10, E15TTWY;TXT_DESIG;96, E17, E19TTWY;TXT_DESIG;97, E21TTWY;TXT_DESIG;98 - Taxiway WTTWY;TXT_DESIG;2369, YTTWY;TXT_DESIG;2370, ZTTWY;TXT_DESIG;2371 RWY 02L/20RTRWY;TXT_DESIG;2115 -Taxiway F1TTWY;TXT_DESIG;2363, F2TTWY;TXT_DESIG;2364, F3TTWY;TXT_DESIG;2353, F10TTWY;TXT_DESIG;2358, F11TTWY;TXT_DESIG;2367, F12TTWY;TXT_DESIG;2368, F15TTWY;TXT_DESIG;2359
4	Remarks	Intermediate holding positions are provided at some TWY/TWY intersections.

VTBS AD 2.10 AERODROME OBSTACLES

In approach/TKOF areas			In circling areas and at AD		Remarks
1			2		3
RWY/Area affected	Obstacle type Elevation Markings/LGT	Coordinates	Obstacle type Elevation Markings/LGT	Coordinates
a	b	c	a	b
19/TKOF	CCTV Pole 24.4 ft (7.4 m)	133858.4N 1004457.3E	Antenna on top of Building 197.5 ft (60.2 m)	134338.8N 1004633.5E
19/TKOF	CCTV Pole 20.8 ft (6.3 m)	133900.5N 1004457.2E	Institute Building 203.9 ft (62.1 m) LGTD	134339.2N 1004618.8E
19/TKOF	Vegetation 41.1 ft (12.5 m)	133849.6N 1004456.6E	Communication Tower 153.0 ft (46.6 m)	134104.1N 1004330.9E
19/TKOF	Sub-distribution Building 23.4 ft (7.1 m)	133858.4N 1004503.6E	Pole on top of Control Tower Building 466.4 ft (142.1 m) LGTD	134147.2N 1004458.5E
			Antenna on top of East Apron Control Tower Building 171.5 ft (52.3 m)	134124.0N 1004516.1E
			Antenna on top of West Apron Control Tower Building 170.4 ft (51.9 m)	134131.4N 1004446.5E
			Antenna on top of Building 169.2 ft (51.6 m)	134142.8N 1004511.2E
			Industrial Stack 166.5 ft (50.8 m) marked	133957.3N 1004719.8E
			Industrial Stack 185.9 ft (56.7 m) marked	133958.2N 1004720.1E
			Industrial Stack 169.0 ft (51.5 m) marked	133955.8N 1004719.1E
			Industrial Stack 169.3 ft (51.6 m) marked	133954.7N 1004718.6E
			Advertising Sign Board 178.2 ft (54.3 m)	134123.9N 1004346.0E
			Residential Building 165.2 ft (50.4 m) LGTD	133753.4N 1004347.5E
			Residential Building 158.8 ft (48.4 m) LGTD	133802.8N 1004342.9E
			Residential Building 158.1 ft (48.2 m) LGTD	133803.4N 1004340.8E	NIL
			Residential Building 157.3 ft (47.9 m) LGTD	133805.4N 1004339.4E
			Residential Building 157.7 ft (48.1 m) LGTD	133807.7N 1004339.4E
			Residential Building 156.7 ft (47.8 m) LGTD	133809.8N 1004339.5E
			Residential Building 158.2 ft (48.2 m) LGTD	133812.0N 1004340.1E
			Residential Building 153.8 ft (46.9 m) LGTD	134332.3N 1004618.1E
			Terminal Building 170.7 ft (52.0 m)	134127.1N 1004510.9E
			Office Building 151.5 ft (46.2 m) LGTD	134239.7N 1004530.1E
			Office Building 162.4 ft (49.5 m) LGTD	134227.1N 1004530.7E
			Secondary Surveillance Radar (SSR) Tower Building 168.6 ft (51.4 m) LGTD	134149.8N 1004615.7E
			Primary Surveillance Radar (PSR) Tower Building 156.8 ft (47.8 m)	134122.9N 1004613.2E
			Surface Movement Radar (SMR) Tower Building 152.8 ft (46.6 m)	134105.4N 1004433.6E
			Residential Building 163.6 ft (49.9 m) LGTD	133751.4N 1004358.0E
			Residential Building 161.1 ft (49.1 m) LGTD	133751.9N 1004356.0E
			Residential Building 160.5 ft (48.9 m) LGTD	133752.2N 1004353.8E
			Residential Building 162.4 ft (49.5 m) LGTD	133752.5N 1004351.8E	NIL
			Residential Building 163.8 ft (49.9 m) LGTD	133753.0N 1004349.6E
			Terminal Building 170.7 ft (52.0 m) LGTD	134127.5N 1004511.0E
			Hangar Building 162.4 ft (49.5 m) LGTD	134223.6N 1004539.4E
02R/TKOF	Lighting Pole 34.8 ft (10.6 m)	134258.3N 1004443.1E	Institute Building 203.9 ft (62.1 m) LGTD	134339.2N 1004618.8E
02R/TKOF	High Mast Lighting Pole 116.2 ft (35.4 m)	134335.4N 1004447.9E	Communication Tower 153.0 ft (46.6 m)	134104.1N 1004330.9E
02R/TKOF	High Mast Lighting Pole 69.6 ft (21.2 m)	134255.6N 1004449.9E	Pole on top of Control Tower Building 466.4 ft (142.1 m) LGTD	134147.2N 1004458.5E
02R/TKOF	High Mast Lighting Pole 73.4 ft (22.4 m)	134257.5N 1004448.4E	Antenna on top of East Apron Control Tower Building 171.5 ft (52.3 m)	134124.0N 1004516.1E
02R/TKOF	High Mast Lighting Pole 87.5 ft (26.7 m)	134303.8N 1004447.0E	Antenna on top of West Apron Control Tower Building 170.4 ft (51.9 m)	134131.4N 1004446.5E
02R/TKOF	High Mast Lighting Pole 73.0 ft (22.2 m)	134306.8N 1004447.6E	Antenna on top of Building 169.2 ft (51.6 m)	134142.8N 1004511.2E
02R/TKOF	High Mast Lighting Pole 73.7 ft (22.5 m)	134309.4N 1004447.8E	Advertising Sign Board 178.2 ft (54.3 m)	134123.9N 1004346.0E
02R/TKOF	High Mast Lighting Pole 90.0 ft (27.4 m)	134301.5N 1004444.2E	Residential Building 157.7 ft (48.1 m) LGTD	133807.7N 1004339.4E
02R/TKOF	High Mast Lighting Pole 85.7 ft (26.1 m)	134300.4N 1004447.0E	Residential Building 156.7 ft (47.8 m) LGTD	133809.8N 1004339.5E
02R/TKOF	High Mast Lighting Pole 91.9 ft (28.0 m)	134305.3N 1004450.0E	Residential Building 158.2 ft (48.2 m) LGTD	133812.0N 1004340.1E
02R/TKOF	High Mast Lighting Pole 88.5 ft (27.0 m)	134301.3N 1004449.9E	Residential Building 153.8 ft (46.9 m) LGTD	134332.3N 1004618.1E
02R/TKOF	Tree 29.6 ft (9.0 m)	134300.0N 1004444.3E	Terminal Building 170.7 ft (52.0 m)	134127.1N 1004510.9E
02R/TKOF	Tree 25.0 ft (7.6 m)	134256.0N 1004443.0E	Office Building 162.4 ft (49.5 m) LGTD	134227.1N 1004530.7E	NIL
02R/TKOF	Tree 44.1 ft (13.5 m)	134302.1N 1004449.0E	Secondary Surveillance Radar (SSR) Tower Building 168.6 ft (51.4 m) LGTD	134149.8N 1004615.7E
02R/TKOF	Tree 38.4 ft (11.7 m)	134302.7N 1004449.0E	Primary Surveillance Radar (PSR) Tower Building 156.8 ft (47.8 m)	134122.9N 1004613.2E
02R/TKOF	High Mast Lighting Pole 57.7 ft (17.6 m)	134307.3N 1004452.6E	Surface Movement Radar (SMR) Tower Building 152.8 ft (46.6 m)	134105.4N 1004433.6E
02R/TKOF	High Mast Lighting Pole 91.9 ft (28.0 m)	134304.3N 1004451.3E	Hangar Building 162.4 ft (49.5 m) LGTD	134223.6N 1004539.4E
02R/TKOF	High Mast Lighting Pole 88.5 ft (27.0 m)	134301.2N 1004449.0E	Transmission Tower 204.8 ft (62.4 m)	134058.2N 1004147.7E
02R/TKOF	High Mast Lighting Pole 73.4 ft (22.4 m)	134312.0N 1004447.8E	Transmission Tower 204.3 ft (62.3 m)	134044.8N 1004151.6E
02R/TKOF	High Mast Lighting Pole 75.3 ft (23.0 m)	134314.6N 1004447.8E	Transmission Tower 207.0 ft (63.1 m)	134035.9N 1004154.2E
02R/TKOF	High Mast Lighting Pole 75.3 ft (23.0 m)	134317.2N 1004447.8E	Transmission Tower 204.1 ft (62.2 m)	134027.7N 1004159.6E
02R/TKOF	High Mast Lighting Pole 75.3 ft (23.0 m)	134319.8N 1004447.8E	Transmission Tower 204.1 ft (62.2 m)	134017.7N 1004159.4E
02R/TKOF	High Mast Lighting Pole 108.5 ft (33.1 m)	134322.7N 1004448.7E	Transmission Tower 225.2 ft (68.6 m)	133955.6N 1004139.6E
02R/TKOF	High Mast Lighting Pole 108.5 ft (33.1 m)	134328.9N 1004448.6E	Transmission Tower 225.8 ft (68.8 m)	134007.0N 1004149.8E
02R/TKOF	Tree 44.8 ft (13.7 m)	134308.0N 1004445.3E	Hospital Building 190.2 ft (58.0 m)	134303.8N 1004222.8E
02R/TKOF	Transmission Pole 71.6 ft (21.8 m)	134320.9N 1004450.5E
02R/TKOF	Transmission Pole 71.6 ft (21.8 m)	134320.9N 1004450.3E
02R/TKOF	Transmission Pole 78.0 ft (23.8 m)	134322.6N 1004449.0E
02R/TKOF	Transmission Pole 77.9 ft (23.7 m)	134322.3N 1004449.3E
02R/TKOF	High Mast Lighting Pole 87.7 ft (26.7 m)	134326.0N 1004446.7E			NIL
02R/TKOF	Communication Tower 136.8 ft (41.7 m)	134351.2N 1004502.5E
02R/TKOF	Traffic Sign Board 62.2 ft (19.0 m)	134257.2N 1004448.5E
02R/TKOF	Traffic Sign Board 59.9 ft (18.2 m)	134302.2N 1004446.2E
02R/TKOF	Traffic Sign Board 64.1 ft (19.5 m)	134314.9N 1004448.0E
02R/TKOF	Traffic Sign Board 70.3 ft (21.4 m)	134320.5N 1004446.9E
02R/TKOF	Overpass 51.9 ft (15.8 m)	134307.6N 1004451.6E
02R/TKOF	Overpass 50.8 ft (15.5 m)	134306.1N 1004449.2E
02R/TKOF	Overpass 35.3 ft (10.7 m)	134301.3N 1004447.6E
02R/TKOF	Overpass 33.4 ft (10.2 m)	134301.4N 1004448.6E
02R/TKOF	Vegetation 33.2 ft (10.1 m)	134256.7N 1004445.0E
02R/TKOF	Vegetation 35.2 ft (10.7 m)	134255.7N 1004442.7E
02R/TKOF	Vegetation 39.0 ft (11.9 m)	134302.8N 1004445.5E
02R/TKOF	Vegetation 43.8 ft (13.4 m)	134302.3N 1004444.1E
02R/TKOF	Vegetation 51.5 ft (15.7 m)	134303.6N 1004451.5E
02R/TKOF	Vegetation 40.4 ft (12.3 m)	134304.8N 1004447.7E
02R/TKOF	Vegetation 115.7 ft (35.3 m)	134312.0N 1004447.8E
02R/TKOF	Vegetation 60.9 ft (18.6 m)	134313.4N 1004457.5E
02R/TKOF	Residential Building 65.9 ft (20.1 m)	134315.8N 1004453.4E
02R/TKOF	Residential Building 56.6 ft (17.3 m)	134306.7N 1004444.6E
02R/TKOF	Residential Building 54.0 ft (16.5 m)	134309.9N 1004444.2E			NIL
02R/TKOF	Residential Building 53.1 ft (16.2 m)	134312.6N 1004446.4E
02R/TKOF	College Building 60.2 ft (18.3 m)	134314.9N 1004445.5E
02R/TKOF	Vegetation 47.5 ft (14.5 m)	134309.4N 1004446.7E
02R/TKOF	Vegetation 64.4 ft (19.6 m)	134307.3N 1004444.6E
02R/TKOF	Vegetation 37.6 ft (11.5 m)	134304.7N 1004446.0E
02R/TKOF	Vegetation 49.1 ft (15.0 m)	134310.1N 1004445.9E
20L/APCH 02R/TKOF	Buildings 115.4 ft (35.2 m)	134305.9N 1004444.6E
20L/APCH	Resort Building 97.2 ft (29.6 m)	134259.1N 1004439.7E
20R/APCH 02L/TKOF	Meteorological Tower 65.1 ft (19.8 m) marked and LGTD	134228.0N 1004425.1E	Meteorological Tower 70.5 ft (21.5 m) marked and LGTD	134126.4N 1004401.6E
20R/APCH	Vegetation 59.4 ft (18.1 m)	134220.9N 1004417.2E	Office Building 53.8 ft (16.4 m)	134221.1N 1004415.0E
20R/APCH	Office Building 55.7 ft (17.0 m)	134220.0N 1004415.3E	Communication Tower 303.8 ft (92.6 m) marked and LGTD	133747.5N 1004226.1E
20R/APCH	Factory Building 147.2 ft (44.9 m) LGTD	134247.6N 1004413.8E	Transmission Tower 204.4 ft (62.3 m)	134111.3N 1004143.9E
			Transmission Tower 226.4 ft (69.0 m)	133944.6N 1004129.7E
			Communication Tower 163.4 ft (49.8 m) marked and LGTD	133806.3N 1004237.6E
			Residential Building 168.4 ft (51.3 m) LGTD	133809.4N 1004232.8E
			Industrial Building 164.8 ft (50.2 m) LGTD	133812.3N 1004226.6E
			Pole on top of Control Tower Building 466.4 ft (142.1 m) LGTD	134147.2N 1004458.5E
			Antenna on top of East Apron Control Tower Building 171.5 ft (52.3 m)	134124.0N 1004516.1E	NIL
			Antenna on top of West Apron Control Tower Building 170.4 ft (51.9 m)	134131.4N 1004446.5E
			Antenna on top of Building 169.2 ft (51.6 m)	134142.8N 1004511.2E
			Advertising Sign Board 178.2 ft (54.3 m)	134123.9N 1004346.0E
			Residential Building 165.2 ft (50.4 m) LGTD	133753.4N 1004347.5E
			Residential Building 158.8 ft (48.4 m) LGTD	133802.8N 1004342.9E
			Residential Building 158.1 ft (48.2 m) LGTD	133803.4N 1004340.8E
			Residential Building 157.3 ft (47.9 m) LGTD	133805.4N 1004339.4E
			Residential Building 157.7 ft (48.1 m) LGTD	133807.7N 1004339.4E
			Residential Building 156.7 ft (47.8 m) LGTD	133809.8N 1004339.5E
			Residential Building 158.2 ft (48.2 m) LGTD	133812.0N 1004340.1E
			Terminal Building 170.7 ft (52.0 m)	134127.1N 1004510.9E
			Office Building 162.4 ft (49.5 m) LGTD	134227.1N 1004530.7E
			Secondary Surveillance Radar (SSR) Tower Building 168.6 ft (51.4 m) LGTD	134149.8N 1004615.7E
			Primary Surveillance Radar (PSR) Tower Building 156.8 ft (47.8 m)	134122.9N 1004613.2E
			Residential Building 163.6 ft (49.9 m) LGTD	133751.4N 1004358.0E	NIL
			Residential Building 161.1 ft (49.1 m) LGTD	133751.9N 1004356.0E
			Residential Building 160.5 ft (48.9 m) LGTD	133752.2N 1004353.8E
			Residential Building 162.4 ft (49.5 m) LGTD	133752.5N 1004351.8E
			Residential Building 163.8 ft (49.9 m) LGTD	133753.0N 1004349.6E
			Terminal Building 170.7 ft (52.0 m) LGTD	134127.5N 1004511.0E
			Hangar Building 162.4 ft (49.5 m) LGTD	134223.6N 1004539.4E
			Transmission Tower 204.8 ft (62.4 m)	134058.2N 1004147.7E
			Transmission Tower 204.3 ft (62.3 m)	134044.8N 1004151.6E
			Transmission Tower 207.0 ft (63.1 m)	134035.9N 1004154.2E
			Transmission Tower 204.1 ft (62.2 m)	134027.7N 1004159.6E
			Transmission Tower 204.1 ft (62.2 m)	134017.7N 1004159.4E
			Transmission Tower 225.2 ft (68.6 m)	133955.6N 1004139.6E
			Transmission Tower 225.8 ft (68.8 m)	134007.0N 1004149.8E
			Hospital Building 190.2 ft (58.0 m)	134303.8N 1004222.8E

VTBS AD 2.11 METEOROLOGICAL INFORMATION PROVIDED

1	Associated MET Office	Aeronautical Meteorology Division, Thai Meteorological Department (TMD)
2	Hours of service MET Office outside hours	H24 NIL
3	Office responsible for TAF preparation Periods of validity	Aeronautical Meteorology Division 30 HRTSERVICE;TXT_TAF_VALIDITY;823
4	Trend forecast Interval of issuance	TRENDTSERVICE;Annotation:1478.eng;823 30 MinTSERVICE;Annotation:1479.eng;823
5	Briefing/consultation provided	Personal ConsultationTSERVICE;Annotation:1482.eng;823 Tel: +662 134 0006-07TSERVICE;Annotation:1480.eng;823 Fax: +662 134 0009TSERVICE;Annotation:1481.eng;823
6	Flight documentation Language(s) used	ChartsTSERVICE;Annotation:1288.eng;823, Tabular FormsTSERVICE;Annotation:1289.eng;823 and Abbreviated Plain Language Texts EnglishTSERVICE;TXT_MET_LANG;823
7	Charts and other information available for briefing or consultation	STSERVICE;Annotation:1290.eng;823, U85TSERVICE;Annotation:1291.eng;823, U70TSERVICE;Annotation:1292.eng;823, U50TSERVICE;Annotation:1293.eng;823, U40TSERVICE;Annotation:1294.eng;823, U30TSERVICE;Annotation:1295.eng;823, U25TSERVICE;Annotation:1296.eng;823, U20TSERVICE;Annotation:1297.eng;823, SWHTSERVICE;Annotation:1298.eng;823, SWMTSERVICE;Annotation:2101.eng;823, SWLTSERVICE;Annotation:1299.eng;823, P85TSERVICE;Annotation:1300.eng;823, P70TSERVICE;Annotation:1301.eng;823, P50TSERVICE;Annotation:1302.eng;823, P40TSERVICE;Annotation:1303.eng;823, P30TSERVICE;Annotation:1304.eng;823, P25TSERVICE;Annotation:1305.eng;823, P20TSERVICE;Annotation:1306.eng;823, P15TSERVICE;Annotation:1307.eng;823, satellite and radar picturesTSERVICE;Annotation:1308.eng;823
8	Supplementary equipment available for providing information	Automated Weather Observing System (AWOS), Low Level Wind Shear Alert System (LLWAS), WeatherRadar, Local Lightning Warning System (LLWS), and Light Detection and Ranging (LIDAR)TSERVICE;TXT_MET_SUP;823
9	ATS units provided with information	Suvarnabhumi TWR Bangkok APP Bangkok ACC
10	Additional information (limitation of service, etc.)	NIL

VTBS AD 2.12 RUNWAY PHYSICAL CHARACTERISTICS

Designations RWY NR	TRUE BRG	Dimensions of RWY(m)	Strength (PCR) and surface of RWY and SWY	THR coordinates RWY end coordinates THR geoid undulation	THR elevation and highest elevation of TDZ of precision APP RWY
1	2	3	4	5	6
;;02R	014.42°TRWY_DIRECTION;VAL_TRUE_BRG;78	3700TRWY;VAL_LEN;153x60TRWY;VAL_WID;153	1650TRWY;VAL_PCN_CLASS;153/FTRWY;CODE_PCN_PAVEMENT_TYPE;153/DTRWY;CODE_PCN_PAVEMENT_SUBGRADE;153/XTRWY;CODE_PCN_MAX_TIRE_PRESSURE;153/TTRWY;CODE_PCN_EVAL_METHOD;153 AsphaltTRWY;CODE_COMPOSITION;153	134016.60NTRWY_CLINE_POINT;GEO_LAT;50 1004404.79ETRWY_CLINE_POINT;GEO_LONG;50 -97.5 ft (-29.7 m)	THR/TDZ 4.2 ftTRWY_CLINE_POINT;UOM_DIST_VER;50 (1.3 m)
20LTRWY_DIRECTION;TXT_DESIG;79	194.42°TRWY_DIRECTION;VAL_TRUE_BRG;79	3700TRWY;VAL_LEN;153x60TRWY;VAL_WID;153	1650TRWY;VAL_PCN_CLASS;153/FTRWY;CODE_PCN_PAVEMENT_TYPE;153/DTRWY;CODE_PCN_PAVEMENT_SUBGRADE;153/XTRWY;CODE_PCN_MAX_TIRE_PRESSURE;153/TTRWY;CODE_PCN_EVAL_METHOD;153 AsphaltTRWY;CODE_COMPOSITION;153	134213.21NTRWY_CLINE_POINT;GEO_LAT;51 1004435.44ETRWY_CLINE_POINT;GEO_LONG;51 -97.5 ft (-29.7 m)	THR/TDZ 4.0 ftTRWY_CLINE_POINT;UOM_DIST_VER;51 (1.2 m)
01TRWY_DIRECTION;TXT_DESIG;80	014.42°TRWY_DIRECTION;VAL_TRUE_BRG;80	4000TRWY;VAL_LEN;154x60TRWY;VAL_WID;154	1650TRWY;VAL_PCN_CLASS;154/FTRWY;CODE_PCN_PAVEMENT_TYPE;154/DTRWY;CODE_PCN_PAVEMENT_SUBGRADE;154/XTRWY;CODE_PCN_MAX_TIRE_PRESSURE;154/TTRWY;CODE_PCN_EVAL_METHOD;154 AsphaltTRWY;CODE_COMPOSITION;154	133924.11NTRWY_CLINE_POINT;GEO_LAT;52 1004506.59ETRWY_CLINE_POINT;GEO_LONG;52 -97.1 ft (-29.6 m)	THR/TDZ 3.7 ft (1.1 m)
19TRWY_DIRECTION;TXT_DESIG;81	194.42°TRWY_DIRECTION;VAL_TRUE_BRG;81	4000TRWY;VAL_LEN;154x60TRWY;VAL_WID;154	1650TRWY;VAL_PCN_CLASS;154/FTRWY;CODE_PCN_PAVEMENT_TYPE;154/DTRWY;CODE_PCN_PAVEMENT_SUBGRADE;154/XTRWY;CODE_PCN_MAX_TIRE_PRESSURE;154/TTRWY;CODE_PCN_EVAL_METHOD;154 AsphaltTRWY;CODE_COMPOSITION;154	134130.17NTRWY_CLINE_POINT;GEO_LAT;53 1004539.72ETRWY_CLINE_POINT;GEO_LONG;53 -97.1 ft (-29.6 m)	THR/TDZ 3.7 ftTRWY_CLINE_POINT;UOM_DIST_VER;53 (1.1 m)
02LTRWY_DIRECTION;TXT_DESIG;2139	014.00°TRWY_DIRECTION;VAL_TRUE_BRG;2139	4000TRWY;VAL_LEN;2115x60TRWY;VAL_WID;2115	PCR 840TRWY;VAL_PCN_CLASS;2115/FTRWY;CODE_PCN_PAVEMENT_TYPE;2115/CTRWY;CODE_PCN_PAVEMENT_SUBGRADE;2115/XTRWY;CODE_PCN_MAX_TIRE_PRESSURE;2115/TTRWY;CODE_PCN_EVAL_METHOD;2115AsphaltTRWY;CODE_COMPOSITION;2115	133954.63NTRWY_CLINE_POINT;GEO_LAT;2212 1004345.28ETRWY_CLINE_POINT;GEO_LONG;2212-94 ft (-29 m)	THR 8TRWY_DIRECTION;VAL_ELEV_TDZ;2139 ftTRWY_DIRECTION;UOM_ELEV_TDZ;2139 (2 m)
20RTRWY_DIRECTION;TXT_DESIG;2140	194.00°TRWY_DIRECTION;VAL_TRUE_BRG;2140	4000TRWY;VAL_LEN;2115x60TRWY;VAL_WID;2115	PCR 840TRWY;VAL_PCN_CLASS;2115/FTRWY;CODE_PCN_PAVEMENT_TYPE;2115/CTRWY;CODE_PCN_PAVEMENT_SUBGRADE;2115/XTRWY;CODE_PCN_MAX_TIRE_PRESSURE;2115/TTRWY;CODE_PCN_EVAL_METHOD;2115AsphaltTRWY;CODE_COMPOSITION;2115	134200.68NTRWY_CLINE_POINT;GEO_LAT;2213 1004418.41ETRWY_CLINE_POINT;GEO_LONG;2213-94 ft (-29 m)	THR 8TRWY_DIRECTION;VAL_ELEV_TDZ;2140 ftTRWY_DIRECTION;UOM_ELEV_TDZ;2140 (2 m)

Slope of RWY-SWY	SWY dimensions (m)	CWY dimensions (m)	Strip dimensions (m)	RESA dimensions (m)	Location and description of arresting system	OFZ	Remarks
7	8	9	10	11	12	13	14
0TRWY_DIRECTION;VAL_SLOPE_TDZ;79%	NIL	1100TRWY_PROTECT_AREA;VAL_LEN;45x150TRWY_PROTECT_AREA;VAL_WID;45	3820TRWY;VAL_LEN_STRIP;153x300TRWY;VAL_WID_STRIP;153	240TRWY_PROTECT_AREA;VAL_LEN;46x150TRWY_PROTECT_AREA;VAL_WID;46	NIL	Yes	Runway 01/19 and 02R/20L, paved jet blast protection areas at runway ends; 120 m long and 75 m wide. Runway 02L/20R, pave jet blast protection areas at runway ends; 120 m long and 60 m wide. Runway 02R/20L surface is grooved; Runway 01/19 and 02L/20R surface is not grooved. Concrete drainage channels are located in the strips of runway 01/19 and 02R/20L, parallel to and at 120 m offset from the runway centre lines . No open drainage channel is located in the runway strip of runway 02L/20R.
0TRWY_DIRECTION;VAL_SLOPE_TDZ;79%	NIL	700TRWY_PROTECT_AREA;VAL_LEN;48x150TRWY_PROTECT_AREA;VAL_WID;48	3820TRWY;VAL_LEN_STRIP;153x300TRWY;VAL_WID_STRIP;153	240TRWY_PROTECT_AREA;VAL_LEN;47x150TRWY_PROTECT_AREA;VAL_WID;47	NIL	Yes
0TRWY_DIRECTION;VAL_SLOPE_TDZ;80%	NIL	NIL	4120TRWY;VAL_LEN_STRIP;154x300TRWY;VAL_WID_STRIP;154	240TRWY_PROTECT_AREA;VAL_LEN;49x150TRWY_PROTECT_AREA;VAL_WID;49	NIL	Yes
0TRWY_DIRECTION;VAL_SLOPE_TDZ;81%	NIL	550TRWY_PROTECT_AREA;VAL_LEN;50x150TRWY_PROTECT_AREA;VAL_WID;50	4120TRWY;VAL_LEN_STRIP;154x300TRWY;VAL_WID_STRIP;154	240TRWY_PROTECT_AREA;VAL_LEN;51x150TRWY_PROTECT_AREA;VAL_WID;51	NIL	Yes
0TRWY_DIRECTION;VAL_SLOPE_TDZ;2139%	NIL	NIL	4120TRWY;VAL_LEN_STRIP;2115x300TRWY;VAL_WID_STRIP;2115	240TRWY_PROTECT_AREA;VAL_LEN;2147x120TRWY_PROTECT_AREA;VAL_WID;2147	NIL	Yes
0TRWY_DIRECTION;VAL_SLOPE_TDZ;2140%	NIL	NIL	4120TRWY;VAL_LEN_STRIP;2115x300TRWY;VAL_WID_STRIP;2115	240TRWY_PROTECT_AREA;VAL_LEN;2148x120TRWY_PROTECT_AREA;VAL_WID;2148	NIL	Yes

VTBS AD 2.13 DECLARED DISTANCES

RWY Designator	TORA (m)	TODA (m)	ASDA (m)	LDA (m)	Remarks
1	2	3	4	5	6
02RTRWY_DIRECTION;TXT_DESIG;78	3700TRWY_DIRECTION_DECL_DIST;VAL_DIST;78	4800TRWY_DIRECTION_DECL_DIST;VAL_DIST;79	3700TRWY_DIRECTION_DECL_DIST;VAL_DIST;80	3700TRWY_DIRECTION_DECL_DIST;VAL_DIST;81	The TORA/ASDA when entering RWY from TWY E19TTWY;TXT_DESIG;97 is 3590 m.
20LTRWY_DIRECTION;TXT_DESIG;79	3700TRWY_DIRECTION_DECL_DIST;VAL_DIST;82	4400TRWY_DIRECTION_DECL_DIST;VAL_DIST;83	3700TRWY_DIRECTION_DECL_DIST;VAL_DIST;84	3700TRWY_DIRECTION_DECL_DIST;VAL_DIST;85	The TORA/ASDA when entering RWY from TWY E2TTWY;TXT_DESIG;88 is 3590 m.
01TRWY_DIRECTION;TXT_DESIG;80	4000TRWY_DIRECTION_DECL_DIST;VAL_DIST;86	4000TRWY_DIRECTION_DECL_DIST;VAL_DIST;87	4000TRWY_DIRECTION_DECL_DIST;VAL_DIST;88	4000TRWY_DIRECTION_DECL_DIST;VAL_DIST;89	The TORA/ASDA when entering RWY from TWY B12TTWY;TXT_DESIG;63 is 3890 m.
19TRWY_DIRECTION;TXT_DESIG;81	4000TRWY_DIRECTION_DECL_DIST;VAL_DIST;90	4550TRWY_DIRECTION_DECL_DIST;VAL_DIST;91	4000TRWY_DIRECTION_DECL_DIST;VAL_DIST;92	4000TRWY_DIRECTION_DECL_DIST;VAL_DIST;93	The TORA/ASDA when entering RWY from TWY B2TTWY;TXT_DESIG;53 is 3870 m.
02LTRWY_DIRECTION;TXT_DESIG;2139	4000TRWY_DIRECTION_DECL_DIST;VAL_DIST;2322	4000TRWY_DIRECTION_DECL_DIST;VAL_DIST;2321	4000TRWY_DIRECTION_DECL_DIST;VAL_DIST;2322	4000TRWY_DIRECTION_DECL_DIST;VAL_DIST;2323	The TORA/ASDA when entering RWY from TWY F11 is 3890 m.
20RTRWY_DIRECTION;TXT_DESIG;2140	4000TRWY_DIRECTION_DECL_DIST;VAL_DIST;2324	4000TRWY_DIRECTION_DECL_DIST;VAL_DIST;2325	4000TRWY_DIRECTION_DECL_DIST;VAL_DIST;2326	4000TRWY_DIRECTION_DECL_DIST;VAL_DIST;2326	The TORA/ASDA when entering RWY from TWY F2 is 3900 m.

VTBS AD 2.14 APPROACH AND RUNWAY LIGHTING

RWY Designator	APCH LGT type LEN INTST	THR LGT colour WBAR	VASIS (MEHT) PAPI	TDZ, LGT LEN	RWY Centre Line LGT Length, spacing, colour, INTST	RWY edge LGT LEN, spacing, colour INTST	RWY End LGT colour WBAR	SWY LGT LEN (m) colour	Remarks
1	2	3	4	5	6	7	8	9	10
02RTRWY_DIRECTION;TXT_DESIG;78	CAT IITRWY_DIRECTION_ALS;CODE_ICAO;44 900TRWY_DIRECTION_ALS;VAL_LEN;44 mTRWY_DIRECTION_ALS;UOM_LEN;44 5 steps LIHTRWY_DIRECTION_ALS;CODE_INTST;44; with FLG	GreenTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;79	PAPITVASIS;CODE_TYPE_VASIS;41 LEFTTVASIS;CODE_PSN_VASIS;41/3°TVASIS;VAL_SLOPE_ANGLE_GP_VASIS;41 (63.82TVASIS;VAL_MEHT;41 ftTVASIS;UOM_MEHT;41)	900 m	3700 m, 30 m WhiteTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;82, FM 2800 m Red / White FM 3400 m Red 5 steps LIHTRWY_DIRECTION_LGT_SYS;CODE_INTST;82	3700 m, 60 m WhiteTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;81, FM 3100 m Yellow 5 steps LIHTRWY_DIRECTION_LGT_SYS;CODE_INTST;81	RedTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;83	NIL	NIL
20LTRWY_DIRECTION;TXT_DESIG;79	CAT IITRWY_DIRECTION_ALS;CODE_ICAO;45 900TRWY_DIRECTION_ALS;VAL_LEN;45 mTRWY_DIRECTION_ALS;UOM_LEN;45 5 steps LIHTRWY_DIRECTION_ALS;CODE_INTST;45; with FLG	GreenTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;84	PAPITVASIS;CODE_TYPE_VASIS;42 LEFTTVASIS;CODE_PSN_VASIS;42/3°TVASIS;VAL_SLOPE_ANGLE_GP_VASIS;42 (63.82TVASIS;VAL_MEHT;42 ftTVASIS;UOM_MEHT;42)	900 m	3700 m, 30 m WhiteTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;86, FM 2800 m Red / White FM 3400 m Red 5 steps TRWY_DIRECTION_LGT_SYS;CODE_INTST;86LIH	3700 m, 60 m WhiteTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;87, FM 3100 m Yellow 5 steps LIH	RedTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;88	NIL	NIL
01TRWY_DIRECTION;TXT_DESIG;80	CAT IITRWY_DIRECTION_ALS;CODE_ICAO;46 900TRWY_DIRECTION_ALS;VAL_LEN;46 mTRWY_DIRECTION_ALS;UOM_LEN;46 5 steps LIHTRWY_DIRECTION_ALS;CODE_INTST;46; with FLG	GreenTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;89	PAPITVASIS;CODE_TYPE_VASIS;43 LEFTTVASIS;CODE_PSN_VASIS;43/3°TVASIS;VAL_SLOPE_ANGLE_GP_VASIS;43 (63.82TVASIS;VAL_MEHT;43 ftTVASIS;UOM_MEHT;43)	900 m	4000 m, 30 m WhiteTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;91, FM 3100 m Red/White FM 3700 m, Red 5 steps LIHTRWY_DIRECTION_LGT_SYS;CODE_INTST;91	4000 m, 60 m WhiteTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;92, FM 3400 m Yellow 5 steps LIHTRWY_DIRECTION_LGT_SYS;CODE_INTST;92	RedTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;93	NIL	NIL
19TRWY_DIRECTION;TXT_DESIG;81	CAT IITRWY_DIRECTION_ALS;CODE_ICAO;46 900TRWY_DIRECTION_ALS;VAL_LEN;46 mTRWY_DIRECTION_ALS;UOM_LEN;46 5 steps LIHTRWY_DIRECTION_ALS;CODE_INTST;46; with FLG	GreenTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;94	PAPITVASIS;CODE_TYPE_VASIS;44 LEFTTVASIS;CODE_PSN_VASIS;44/3°TVASIS;VAL_SLOPE_ANGLE_GP_VASIS;44 (63.82TVASIS;VAL_MEHT;44 ftTVASIS;UOM_MEHT;44)	900 m	4000 m, 30 m WhiteTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;96, FM 3100 m Red/White FM 3700 m, Red 5 steps LIHTRWY_DIRECTION_LGT_SYS;CODE_INTST;96	4000 m, 60 m WhiteTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;97, FM 3400 m Yellow 5 steps LIHTRWY_DIRECTION_LGT_SYS;CODE_INTST;97	RedTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;98	NIL	NIL
02LTRWY_DIRECTION;TXT_DESIG;2139	CAT IITRWY_DIRECTION_ALS;CODE_ICAO;2107 900TRWY_DIRECTION_ALS;VAL_LEN;2107 mTRWY_DIRECTION_ALS;UOM_LEN;2107 5 steps LIHTRWY_DIRECTION_ALS;CODE_INTST;2107	GreenTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;94	PAPITVASIS;CODE_TYPE_VASIS;44 LEFTTVASIS;CODE_PSN_VASIS;44/3°TVASIS;VAL_SLOPE_ANGLE_GP_VASIS;44 (63.82TVASIS;VAL_MEHT;44 ftTVASIS;UOM_MEHT;44)	900TRWY_DIRECTION_ALS;VAL_LEN;2107 mTRWY_DIRECTION_ALS;UOM_LEN;2107	4000 m, 30 m WhiteTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;91, FM 3100 m Red/White FM 3700 m, Red 5 steps LIHTRWY_DIRECTION_LGT_SYS;CODE_INTST;91	4000 m, 60 m WhiteTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;92, FM 3400 m Yellow 5 steps LIHTRWY_DIRECTION_LGT_SYS;CODE_INTST;92	RedTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;98	NIL	NIL
20RTRWY_DIRECTION;TXT_DESIG;2140	CAT IITRWY_DIRECTION_ALS;CODE_ICAO;2106 900TRWY_DIRECTION_ALS;VAL_LEN;2106 mTRWY_DIRECTION_ALS;UOM_LEN;2106 5 steps LIHTRWY_DIRECTION_ALS;CODE_INTST;2106	GreenTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;94	PAPITVASIS;CODE_TYPE_VASIS;44 LEFTTVASIS;CODE_PSN_VASIS;44/3°TVASIS;VAL_SLOPE_ANGLE_GP_VASIS;44 (63.82TVASIS;VAL_MEHT;44 ftTVASIS;UOM_MEHT;44)	900TRWY_DIRECTION_ALS;VAL_LEN;2107 mTRWY_DIRECTION_ALS;UOM_LEN;2107	4000 m, 30 m WhiteTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;96, FM 3100 m Red/White FM 3700 m, Red 5 steps LIHTRWY_DIRECTION_LGT_SYS;CODE_INTST;96	4000 m, 60 m WhiteTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;97, FM 3400 m Yellow 5 steps LIHTRWY_DIRECTION_LGT_SYS;CODE_INTST;97	RedTRWY_DIRECTION_LGT_SYS;CODE_COLOUR;98	NIL	NIL

VTBS AD 2.15 OTHER LIGHTING, SECONDARY POWER SUPPLY

1	ABN/IBN location, characteristics and hours of operation	ABN: On top of ATC towerTAERO_GND_LGT;Annotation:1309.eng;47 (134147NTAERO_GND_LGT;GEO_LAT;47 1004458ETAERO_GND_LGT;GEO_LONG;47), H24, Flashing White/Green every 2 - 3 secondsTAERO_GND_LGT;Annotation:45.eng;47 IBN: NIL
2	LDI location and LGT Anemometer location and LGT	6 WDIs are lighted and installed at following locations: - 4 WDIs 300 m from THR 01, THR 19, THR 02R, THR 20L, 115 m off-set from RWY Centre Line.TAD_HP;Annotation:46.eng;209 - 1 WDI 280 m from THR 02L, 120 m off-set from RWY Centre Line. - 1 WDI 300 m from THR 20R, 120 m off-set from RWY Centre Line. 6 Anemometers are lighted and installed at following locations: - 4 Anemometers 350 m from THR 01, THR 19, THR 02R, THR 20L.TAD_HP;Annotation:1484.eng;209 - 2 Anemometers 421 m from THR 02L, THR 20R.
3	TWY edge and centre line lighting	All Taxiways
4	Secondary power supply/switch-over time	Secondary power supply to all airfield lighting at AD Switch-over time: Lights Associated to Runway 0 sec (UPS) include - Approach Lights Systems - Runway Edge Lights - Runway Touchdown Zone Lights - Runway Centre Line Lights - Precision Approach Path Indicator Systems - Stop Bars - Runway Guard Lights - Runway End Lights - Runway Threshold Lights : Other lighting 15 secTAD_HP;Annotation:47.eng;209
5	Remarks	NIL

VTBS AD 2.16 HELICOPTER LANDING AREA

1	Coordinates TLOF or THR of FATO Geoid undulation	NIL
2	TLOF and/or FATO elevation M/FT	NIL
3	TLOF and FATO area dimensions, surface, strength, marking	NIL
4	True BRG of FATO	NIL
5	Declared distance available	NIL
6	APP and FATO lighting	NIL
7	Remarks	NIL

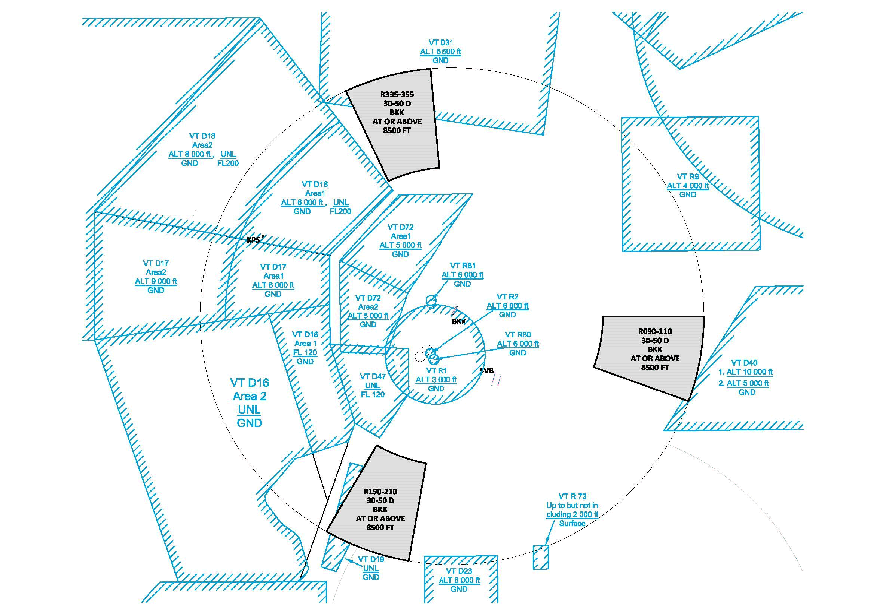

VTBS AD 2.17 ATS AIRSPACE

1	Designation and lateral limits	Suvarnabhumi Aerodrome Traffic ZoneTAIRSPACE;TXT_NAME;116 (ATZ) a circle, radius 5TAIRSPACE_VERTEX;VAL_RADIUS_ARC;300 NMTAIRSPACE_VERTEX;UOM_RADIUS_ARC;300 centred on 134109NTAIRSPACE_VERTEX;GEO_LAT_ARC;300~~134108.59N~~ 1004456ETAIRSPACE_VERTEX;GEO_LONG_ARC;300~~1004456.24E~~ (ARP)
2	Vertical limits	SFCTAIRSPACE_VOLUME;VAL_DIST_VER_LOWER;123 to 2000TAIRSPACE_VOLUME;VAL_DIST_VER_UPPER;123 ftTAIRSPACE_VOLUME;UOM_DIST_VER_UPPER;123. MSL
3	Airspace classification	CTAIRSPACE_LAYER_CLASS;CODE_CLASS;55
4	ATS unit call sign Language(s)	Suvarnabhumi TowerTCALLSIGN_DETAIL;TXT_CALL_SIGN;100 EnglishTCALLSIGN_DETAIL;CODE_LANG;100, Thai
5	Transition altitude	11000TAD_HP;VAL_TRANSITION_ALT;209 ftTAD_HP;UOM_TRANSITION_ALT;209 MSL
6	Remarks	See VTBS AD 2.20 section 1

VTBS AD 2.18 ATS COMMUNICATION FACILITIES

Service designation	Call sign	Frequency	Hours of operation	Remarks
1	2	3	4	5
APPTSERVICE;CODE_TYPE;141	Bangkok ApproachTCALLSIGN_DETAIL;TXT_CALL_SIGN;98	122.35TFREQUENCY;VAL_FREQ_TRANS;186 MHzTFREQUENCY;UOM_FREQ;186 / 274.5TFREQUENCY;VAL_FREQ_TRANS;193 MHzTFREQUENCY;UOM_FREQ;193 124.35TFREQUENCY;VAL_FREQ_TRANS;187 MHzTFREQUENCY;UOM_FREQ;187 / 274.5TFREQUENCY;VAL_FREQ_TRANS;193 MHzTFREQUENCY;UOM_FREQ;193 125.2TFREQUENCY;VAL_FREQ_TRANS;188 MHzTFREQUENCY;UOM_FREQ;188 / 274.5TFREQUENCY;VAL_FREQ_TRANS;193 MHzTFREQUENCY;UOM_FREQ;193 133.4 MHzTFREQUENCY;UOM_FREQ;1381 / 274.5TFREQUENCY;VAL_FREQ_TRANS;193 MHzTFREQUENCY;UOM_FREQ;193 119.1TFREQUENCY;VAL_FREQ_TRANS;1385 MHzTFREQUENCY;UOM_FREQ;1385 / 274.5TFREQUENCY;VAL_FREQ_TRANS;223 MHzTFREQUENCY;UOM_FREQ;223 120.3TFREQUENCY;VAL_FREQ_TRANS;1386 MHzTFREQUENCY;UOM_FREQ;1386 / 274.5TFREQUENCY;VAL_FREQ_TRANS;223 MHzTFREQUENCY;UOM_FREQ;223 125.8TFREQUENCY;VAL_FREQ_TRANS;190 MHzTFREQUENCY;UOM_FREQ;1902) 121.5TFREQUENCY;VAL_FREQ_TRANS;191 MHzTFREQUENCY;UOM_FREQ;1911) / 243.0TFREQUENCY;VAL_FREQ_TRANS;192 MHzTFREQUENCY;UOM_FREQ;1921)	H24	1)Emergency frequency 2)Clearance delivery for aircraft departing to adjacent aerodromes and helicopters operating within BKK CTR 3)For RWY 01/19TRWY;TXT_DESIG;154 4)For RWY 02R/20LTRWY;TXT_DESIG;153 and RWY 02L/20RTRWY;TXT_DESIG;153 5)Arrival ATIS 6)Departure ATIS
APP	Suvarnabhumi DepartureTCALLSIGN_DETAIL;TXT_CALL_SIGN;99	119.25TFREQUENCY;VAL_FREQ_TRANS;194 MHzTFREQUENCY;UOM_FREQ;194 / 274.5TFREQUENCY;VAL_FREQ_TRANS;1394 MHzTFREQUENCY;UOM_FREQ;1394 121.5TFREQUENCY;VAL_FREQ_TRANS;1393 MHzTFREQUENCY;UOM_FREQ;13931) / 243.0TFREQUENCY;VAL_FREQ_TRANS;1395 MHzTFREQUENCY;UOM_FREQ;13951)	H24
ARR	Suvarnabhumi ArrivalTCALLSIGN_DETAIL;TXT_CALL_SIGN;101	121.1TFREQUENCY;VAL_FREQ_TRANS;202 MHzTFREQUENCY;UOM_FREQ;202 / 274.5TFREQUENCY;VAL_FREQ_TRANS;1392 MHzTFREQUENCY;UOM_FREQ;1392 126.3TFREQUENCY;VAL_FREQ_TRANS;201 MHzTFREQUENCY;UOM_FREQ;201 / 274.5TFREQUENCY;VAL_FREQ_TRANS;1392 MHzTFREQUENCY;UOM_FREQ;1392 121.5TFREQUENCY;VAL_FREQ_TRANS;203 MHzTFREQUENCY;UOM_FREQ;2031) / 243.0TFREQUENCY;VAL_FREQ_TRANS;200MHzTFREQUENCY;UOM_FREQ;2001)	H24
TWR	Suvarnabhumi TowerTCALLSIGN_DETAIL;TXT_CALL_SIGN;100	118.2TFREQUENCY;VAL_FREQ_TRANS;195 MHzTFREQUENCY;UOM_FREQ;1953) / 262.5TFREQUENCY;VAL_FREQ_TRANS;196 MHzTFREQUENCY;UOM_FREQ;196 119.0TFREQUENCY;VAL_FREQ_TRANS;197 MHzTFREQUENCY;UOM_FREQ;1974) 121.5TFREQUENCY;VAL_FREQ_TRANS;198 MHzTFREQUENCY;UOM_FREQ;1981) / 243.0TFREQUENCY;VAL_FREQ_TRANS;199 MHzTFREQUENCY;UOM_FREQ;1991)	H24
SMC	Suvarnabhumi GroundTCALLSIGN_DETAIL;TXT_CALL_SIGN;102	121.65TFREQUENCY;VAL_FREQ_TRANS;204 MHzTFREQUENCY;UOM_FREQ;204 / 275.8TFREQUENCY;VAL_FREQ_TRANS;205 MHzTFREQUENCY;UOM_FREQ;205 121.7TFREQUENCY;VAL_FREQ_TRANS;206 MHzTFREQUENCY;UOM_FREQ;206 121.75TFREQUENCY;VAL_FREQ_TRANS;206 MHzTFREQUENCY;UOM_FREQ;206 121.95TFREQUENCY;VAL_FREQ_TRANS;207 MHzTFREQUENCY;UOM_FREQ;207	H24
CDC	Suvarnabhumi DeliveryTCALLSIGN_DETAIL;TXT_CALL_SIGN;1070	128.7TFREQUENCY;VAL_FREQ_TRANS;1396 MHzTFREQUENCY;UOM_FREQ;1396 133.8TFREQUENCY;VAL_FREQ_TRANS;1397 MHzTFREQUENCY;UOM_FREQ;1397	H24
ATISTSERVICE;CODE_TYPE;146	Suvarnabhumi AirportTCALLSIGN_DETAIL;TXT_CALL_SIGN;103	133.6TFREQUENCY;VAL_FREQ_TRANS;208 MHzTFREQUENCY;UOM_FREQ;2085)/ 278.6TFREQUENCY;VAL_FREQ_TRANS;209 MHzTFREQUENCY;UOM_FREQ;2095)/ 127.65TFREQUENCY;VAL_FREQ_TRANS;1101 MHzTFREQUENCY;UOM_FREQ;11016)	H24	D-ATIS Synthesis Voice Broadcast

VTBS AD 2.19 RADIO NAVIGATION AND LANDING AIDS

Type of aid, MAG VAR CAT of ILS/MLS (For VOR/ILS/MLS, give declination)	ID	Frequency	Hours of operation	Position of transmitting antenna coordinates	Elevation of DME transmitting antenna	Remarks
1	2	3	4	5	6	7
DVOR/DMETNAVAID;CODE_TYPE;118	SVBTNAVAID;CODE_ID;118	111.4TVOR;VAL_FREQ;88 MHzTVOR;UOM_FREQ;88 CH 51XTDME;CODE_CHANNEL;51	H24	133932.4NTVOR;GEO_LAT;88 133932.5NTVOR;GEO_LAT;88 1004353.2ETVOR;GEO_LONG;88	0 m (0 ft) -	DVOR/DME restriction due to terrain surround DVOR/DME station, coverage check does not provide adequate signal 40 NM at required altitude in various areas as follows: Radial 131°-150° altitude should not below 4 000 ft. Radial 151°-250° altitude should not below 2 000 ft. Radial 251°-130° altitude should not below 2 500 ft.
ILS CAT II LOC RWY 02RTRWY_DIRECTION;TXT_DESIG;78	I-SWSTNAVAID;CODE_ID;119	109.1TILS_LLZ;VAL_FREQ;45 MHzTILS_LLZ;UOM_FREQ;45	H24	134222.3NTILS_LLZ;GEO_LAT;45 1004437.8ETILS_LLZ;GEO_LONG;45	-	RWY 02RTRWY;TXT_DESIG;153 ILS LOC coverage expanded service volume up to 25 DME altitude not below 2 500 ft. AMSL.
DME 02R		CH 28XTDME;CODE_CHANNEL;52	H24	134221.5NTDME;GEO_LAT;52 134221.6NTDME;GEO_LAT;52 1004440.8ETDME;GEO_LONG;52	~~6 m.~~ 0 m (0 ft)
GP 02R		331.4TILS_GP;VAL_FREQ;43 MHzTILS_GP;UOM_FREQ;43	H24	134027.7NTILS_GP;GEO_LAT;43 134027.8NTILS_GP;GEO_LAT;43 1004403.6ETILS_GP;GEO_LONG;43	-
ILS CAT II LOC RWY 20LTRWY_DIRECTION;TXT_DESIG;79	I-SWNTNAVAID;CODE_ID;120	109.5TILS_LLZ;VAL_FREQ;46 MHzTILS_LLZ;UOM_FREQ;46	H24	134007.5NTILS_LLZ;GEO_LAT;46 1004402.3ETILS_LLZ;GEO_LONG;46~~1004402.4E~~	-	RWY 20L ILS LOC coverage expanded service volume up to 25 DME altitude not below 2 500 ft. AMSL.
DME 20L		CH 32XTDME;CODE_CHANNEL;53	H24	134006.6NTDME;GEO_LAT;53 1004405.3ETDME;GEO_LONG;53 1004405.4ETDME;GEO_LONG;53	0 m (0 ft) ~~6 m.~~
GP 20L		332.6TILS_GP;VAL_FREQ;44 MHzTILS_GP;UOM_FREQ;44	H24	134203.9NTILS_GP;GEO_LAT;44 134204.0NTILS_GP;GEO_LAT;44 1004428.8ETILS_GP;GEO_LONG;44~~1004428.9E~~	-
ILS CAT II LOC 01TRWY_DIRECTION;TXT_DESIG;80	I-SESTNAVAID;CODE_ID;121	110.1TILS_LLZ;VAL_FREQ;47 MHzTILS_LLZ;UOM_FREQ;47	H24	134139.3NTILS_LLZ;GEO_LAT;47 1004542.1ETILS_LLZ;GEO_LONG;47	-	RWY01 ILS LOC coverage expanded service volume up to 25 DME altitude not below 2 500 ft. AMSL.
DME 01		CH 38XTDME;CODE_CHANNEL;54	H24	134139.9NTDME;GEO_LAT;54 1004539.1ETDME;GEO_LONG;54	~~6 m.~~ 0 m (0 ft)
GP 01		334.4TILS_GP;VAL_FREQ;45 MHzTILS_GP;UOM_FREQ;45	H24	133933.3NTILS_GP;GEO_LAT;45 133933.4NTILS_GP;GEO_LAT;45 1004513.1ETILS_GP;GEO_LONG;45	-
ILS CAT II LOC RWY 19TRWY_DIRECTION;TXT_DESIG;81	I-SENTNAVAID;CODE_ID;122	110.5TILS_LLZ;VAL_FREQ;48 MHzTILS_LLZ;UOM_FREQ;48 CH 42XTDME;CODE_CHANNEL;55	H24	133914.9NTILS_LLZ;GEO_LAT;48 133915.0NTILS_LLZ;GEO_LAT;48 1004504.1ETILS_LLZ;GEO_LONG;48~~1004504.2E~~	-	RWY 19 ILS LOC coverage expanded service volume up to 25 DME altitude not below 2 500 ft. AMSL.
DME 19		CH 42XTDME;CODE_CHANNEL;55	H24	133915.7NTDME;GEO_LAT;55 1004501.2ETDME;GEO_LONG;55	~~6 m.~~ 0 m (0 ft)
GP 19		329.6TILS_GP;VAL_FREQ;46 MHzTILS_GP;UOM_FREQ;46	H24	134118.9NTILS_GP;GEO_LAT;46 134119.0NTILS_GP;GEO_LAT;46 1004540.9ETILS_GP;GEO_LONG;46	-

VTBS AD 2.20 LOCAL AERODROME REGULATIONS

1. Airport Regulations

1.1 Suvarnabhumi Aerodrome Traffic Zone (ATZ) airspace is classified as class C.

1.2 IFR and only authorized VFR flights are permitted. All flights are provided with air traffic control service and IFR flights are separated from other IFR flights and from VFR flights. VFR flights are separated from IFR flights and receive traffic information in respect of other VFR flights.

1.3 To retain the defined value of runway capacity at Suvarnabhumi International Airport, and to provide efficient separation between aircraft for the safety of flight and orderly flow of air traffic, only aircraft category B or above with the minimum final approach speed of 110 KT. are permitted to use Suvarnabhumi International Airport. However, other aircraft may be authorized to operate within Suvarnabhumi ATZ if:

1.3.1 The aircraft is being used for or in connection with:

a search and rescue operation;
a medical emergency; or
a flight inspection of air navigation facilities.

1.3.2 The pilot of the aircraft has declared an in-flight emergency.

1.3.3 The aircraft constitutes VIP flight.

1.3.4 The aircraft is as may be determined by the appropriate authority.

1.4 The following school and training flights are not permitted:

school and training flights;
continuous take-off and landing exercises;
solo flight during basic flight training.

2. Provision of Aerodrome Air Traffic Services

2.1 Aerodrome control services are generally sectorized as follows:

2.1.1 Tower Control on frequency 118.2 MHz for the operations on the following areas:

Runway 01/19

2.1.2 Tower Control on frequency 119.0 MHz for the operations on the following areas:

Runway 02R/20L
Runway 02L/20R
Including:
Taxiway F, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, F15
Taxiway W, Y, Z

2.1.3 Ground Control on frequency 121.65 MHz for operations on the following areas:

Aircraft parking stands:
- A1, A2, A3, A4, A5, A6
- B1, B2, B3, B4, B5, B6
- C1, C3, C5, C7, C9
- 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 121, 122, 123, 124, 125, 126, 127, 128, 129, 130, 131, 132, 133, 134
- 201, 202, 203
Including:
Taxiway B, B1, B2, B3, B4, B5, B6, B7, B8, B9, B10, B11, B12, B13
Taxiway C, C1, C2, C3, C4, C5, C6, C7, C8, C9, C10
Taxiway G between taxiway C and taxiway H4
Taxiway H between taxiway C and taxiway H4
Taxiway H4
Aircraft stand taxilane T1, T2, T3, T4, T5, T6, T7

2.1.4 Ground Control on frequency 121.75 MHz for operations on the following areas:

Aircraft parking stands:
- C2, C4, C6, C8, C10
- D1, D2, D3, D4, D5, D6, D7, D8
- E1, E3, E5, E7, E9
- 301, 302, 303, 304, 305, 306, 307, 308
Including:
Taxiway G between taxiway H1 and taxiway H4
Taxiway H between taxiway H1 and taxiway H4
Taxiway H, H2, H3, H5, H6
Aircraft stand taxilane T8, T9, T10, T11, T12

2.1.5 Ground Control on frequency 121.95 MHz for operations on the following areas:

Aircraft parking stands:
- E2, E4, E6, E8, E10
- F1, F2, F3, F4, F5, F6
- G1, G2, G3, G4, G5
- 401, 402, 403
- 501, 502, 503, 504, 505, 506, 507, 508, 509, 510, 511, 512, 513, 514, 515, 516, 517, 518, 519, 520, 521, 522, 523, 524, 525
Including:
Taxiway D, D1, D2, D3, D4, D5, D6, D7, D8, D9, D10, D11
Taxiway E, E1, E2, E3, E5, E6, E7, E8, E9, E10, E12, E13, E15, E17, E19, E21
Taxiway G between taxiway D and taxiway H1
Taxiway H between taxiway D and taxiway H1
Taxiway H1
Aircraft stand taxilane T13, T14, T15, T16, T17

2.1.6 Ground Control on frequency 121.7 MHz for operations on the following areas:

Aircraft parking stands:
- S101, S102, S103, S104, S105, S106, S107, S108, S109, S110, S111, S112, S113, S114, S115, S116, S117, S118, S119, S120, S121, S122, S123, S124, S125, S126, S127, S128
Including:
Taxiway J, J1, J2, J3, J4
Taxiway K
Aircraft stand taxilane T18, T19

3. Ground Movement

3.1 General

3.1.1 All surface movement of aircraft, vehicles and personnel on the manoeuvring area is subject to prior permission from ATC.

3.1.2 Within the movement area, pilots will be cleared to and from the aircraft stands under general direction from Ground Control. Pilots are reminded of the extreme importance of maintaining a careful look out at all times.

3.1.3 Directions issued by ATC should be followed specifically. RTF transmissions shall be brief, concise and kept to the minimum number.

3.2 Operation of mode S transponders on the ground

3.2.1 Suvarnabhumi International Airport is equipped with an Advanced Surface Movement Radar utilizing mode S multilateration. Aircraft operators intending to use Suvarnabhumi International Airport should ensure that mode S transponders are able to operate when the aircraft is on the ground.

3.2.2 For aircraft that are capable of reporting aircraft identification (i.e. call signs used in flight), the aircraft identification should also be entered via FMS or control panel. The ICAO defined format for aircraft identification (i.e. same format as used in ICAO flight plan e.g. THA640, CPA701, SIA068) shall be used.

3.2.3 Flight crew should select XPDR or the equivalent according to specific installation. It shall also be ensured that the transponder is operating (i.e. OUT OF STAND-BY or OFF POSITION) and the assigned mode A code is selected in accordance with the following:

for a departing flight, upon received airway clearance; except that subject to ATFM measures or departure time restrictions, the action should be done when starting up engine.
for an arriving flight, continuously until the aircraft is fully parked at the stand.

3.2.4 To prevent possible interference to radar surveillance systems, TCAS should be functioned:

for departure, when aircraft are entering the runway or line up clearance is received;
for arrival, until aircraft have vacated the runway.

3.2.5 During on ground, pilot of aircraft not equipped with mode S transponder shall operate the transponder and select mode A code as individually directed by the ATC unit:

for departure, when starting up engine;
for arrival, until aircraft have completely parked.

3.2.6 Tracking and identifications of airport surface vehicles

To provide tracking and identification of authorized movements, any authorized vehicle intended to be used on the manoeuvring area at Suvarnabhumi International Airport shall be equipped with mode S squitter box to inform mode S multilateration system of its position.

4. Push Back Procedures

4.1 Scope

The procedure covers and details the activities to be carried out by ATC staff, AOT staff and airport agencies staff when involved in the process of an aircraft start up and push back at Suvarnabhumi International Airport.

4.2 Objective

4.2.1 The procedure “Aircraft start up and push back” applies to all persons involved in handling the process of aircraft start up and push back.

4.2.2 The procedure also implies conditions for operations during low visibility conditions at the airport.

4.3 General

4.3.1 Aircraft which are parked either nose in to the terminal building on a stand attached to a Passenger Loading Bridge or nose in on a remote stand will need to be pushed back from the stand towards the taxilane centre line taking into account the standard taxiway routing.

4.3.2 Once the pilot-in-command of an aircraft has decided that the aircraft is fully ready for departure he/she will contact Ground Control for start-up, stating the parking position and after that for push back permission.

Note: fully ready in this sense means all passengers, hold and cargo doors are closed, the Passenger Loading Bridge is disconnected and back in its rest position, the tug is connected to the aircraft and the ground engineer is in position and in contact with the pilot-in-command.

4.3.3 When the anti-collision beacons of the aircraft have been switched on no vehicular movement is permitted behind the aircraft.

4.3.4 ATC may deviate from the standard push back procedure as stated below for reasons such as traffic or work in progress. The deviation will be given in the push back permission and the pilot-in-command has to make sure that the ground engineer fully understands the deviation.

4.3.5 The pilot-in-command shall use minimum break away power and minimum taxi power when operating on the aprons and taxilanes.

4.3.6 Nose wheel positions have been marked on the taxilane centre line to indicate to the tug/tractor driver where the push or pull manoeuvre has to be stopped and the tug can be disconnected.

4.3.7 A340-600 aircraft may only be pushed back using a towbarless tow tractor. This is to avoid blocking the road in front of the aircraft by a tractor with towbar.

4.3.8 To avoid jet blast in the apron areas pilots are urgently requested to adhere strictly to the start-up and push back procedures and to use minimum break away power and taxi power when operating on the aprons and taxilanes. Furthermore, the aircraft shall be pushed back and towed forward on the yellow taxilane centre line marking.

4.4 Push Back Procedures

4.4.1 Aircraft parking at East Apron (54 stands)

Aircraft stands	Ground Control Frequency	Push Back Instructions
A1, A2	121.65 MHz	Aircraft shall be pushed back to face south onto aircraft standtaxilane T5 until nose wheel is on marking 1.
A3, A4, A5, A6	121.65 MHz	Aircraft shall be pushed back to face south onto aircraft stand taxilane T5.
101	121.65 MHz	Aircraft shall be pushed back to face south onto aircraft stand taxilane T5 then towed forward until nose wheel is on marking 2.
102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114	121.65 MHz	Aircraft shall be pushed back to face south onto aircraft stand taxilane T5.
115, 116, 117	121.65 MHz	Aircraft shall be pushed back to face south onto aircraft stand taxilane T5.
118	121.65 MHz	Aircraft shall be pushed back to face south onto aircraft stand taxilane T5 then towed forward until nose wheel is on marking 2.
119, 120,121, 122, 123, 124, 125, 126, 127, 128, 129	121.65 MHz	Aircraft shall be pushed back to face south onto aircraft stand taxilane T5.
130	121.65 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T1.
131, 132, 133	121.65 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T1, towed forward until abeam stand 131.
134	121.65 MHz	Aircraft shall be pushed back to face north onto aircraft stand taxilane T5.
B1, B3	121.65 MHz	Aircraft shall be pushed back to face south onto aircraft stand taxilane T5 until nose wheel is on marking 1.
B5	121.65 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T4 then towed forward until nose wheel is on marking on taxilane.
B2, B4	121.65 MHz	Aircraft shall be pushed back to face west onto aircraft stand taxilane T6 until nose wheel is on marking on taxilane.
B6	121.65 MHz	Aircraft shall be pushed back to face west onto aircraft stand taxilane T6 then towed forward until nose wheel is on marking on taxilane.
C1	121.65 MHz	Aircraft shall be pushed back to face west onto aircraft stand taxilane T6 then towed forward until nose wheel is on marking on taxilane.
C3, C5	121.65 MHz	Aircraft shall be pushed back to face south onto aircraft stand taxilane T7 then towed forward until nose wheel is on marking 2.
C7, C9	121.65 MHz	Aircraft shall be pushed back to face south onto aircraft stand taxilane T7 then towed forward until nose wheel is on marking 1.
201, 202	121.65 MHz	Aircraft shall be pushed back to face south onto aircraft stand taxilane T7 then towed forward until nose wheel is on marking 2.
203	121.65 MHz	Aircraft shall be pushed back to face south onto aircraft stand taxilane T7 then towed forward until nose wheel is on marking 1.

4.4.2 Aircraft parking at Main Apron (26 stands)

Aircraft stands	Ground Control Frequency	Push Back Instructions
C2	121.75 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T12 until nose wheel is on marking 1.
C4, C6	121.75 MHz	Aircraft shall be pushed back to face south onto aircraft stand taxilane T8 then towed forward until nose wheel is on marking 2.
C8, C10	121.75 MHz	Aircraft shall be pushed back to face south onto aircraft stand taxilane T8 then towed forward until nose wheel is on marking 1.
301	121.75 MHz	Aircraft shall be pushed back to face north onto aircraft stand taxilane T9 until nose wheel is on marking 1.
302	121.75 MHz	Aircraft shall be pushed back to face north onto aircraft stand taxilane T9 then towed forward until nose wheel is on marking 1.
303	121.75 MHz	Aircraft shall be pushed back to face north onto aircraft stand taxilane T9 until nose wheel is on marking 2.
304	121.75 MHz	Aircraft shall be pushed back to face north onto aircraft stand taxilane T9 then towed forward until nose wheel is on marking 2.
305	121.75 MHz	Aircraft shall be pushed back to face north onto aircraft stand taxilane T10 until nose wheel is on marking 1.
306	121.75 MHz	Aircraft shall be pushed back to face north onto aircraft stand taxilane T10 then towed forward until nose wheel is on marking 1.
307	121.75 MHz	Aircraft shall be pushed back to face north onto aircraft stand taxilane T10 until nose wheel is on marking 2.
308	121.75 MHz	Aircraft shall be pushed back to face north onto aircraft stand taxilane T10 then towed forward until nose wheel is on marking 2.
D1	121.75 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T12 until nose wheel is on marking 1.
D2	121.75 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T12 then towed forward until nose wheel is on marking 1.
D3	121.75 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T12 until nose wheel is on marking 2.
D4	121.75 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T12 then towed forward until nose wheel is on marking 2.
D5	121.75 MHz	Aircraft shall be pushed back to face west onto aircraft stand taxilane T12 then towed forward until nose wheel is on marking 3.
D6	121.75 MHz	Aircraft shall be pushed back to face west onto aircraft stand taxilane T12 until nose wheel is on marking 3.
D7	121.75 MHz	Aircraft shall be pushed back to face west onto aircraft stand taxilane T12 then towed forward until nose wheel is on marking 4.
D8	121.75 MHz	Aircraft shall be pushed back to face west onto aircraft stand taxilane T12 until nose wheel is on marking 4.
E1	121.75 MHz	Aircraft shall be pushed back to face west onto aircraft stand taxilane T12 until nose wheel is on marking 4.
E3, E5	121.75 MHz	Aircraft shall be pushed back to face south onto aircraft stand taxilane T11 then towed forward until nose wheel is on marking 2.
E7, E9	121.75 MHz	Aircraft shall be pushed back to face south onto aircraft stand taxilane T11 then towed forward until nose wheel is on marking 1.

4.4.3 Aircraft parking at West Apron (44 stands)

Aircraft stands	Ground Control Frequency	Push Back Instructions
E2	121.95 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T14 until nose wheel is on marking on taxilane.
E4, E6	121.95 MHz	Aircraft shall be pushed back to face south onto aircraft stand taxilane T13 then towed forward until nose wheel is on marking 2.
E8, E10	121.95 MHz	Aircraft shall be pushed back to face south onto aircraft stand taxilane T13 then towed forward until nose wheel is on marking 1.
401, 402	121.95 MHz	Aircraft shall be pushed back to face south onto aircraft stand taxilane T13 until nose wheel is on marking 2.
403	121.95 MHz	Aircraft shall be pushed back to face south onto aircraft stand taxilane T13 then towed forward until nose wheel is on marking 1.
F1, F3	121.95 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T14 until nose wheel is on marking on taxilane.
F5	121.95 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T14 then towed forward until nose wheel is on marking on taxilane.
F2, F4	121.95 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T15 until nose wheel is on marking on taxilane.
F6	121.95 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T15 then towed forward until nose wheel is on marking on taxilane.
G1, G2	121.95 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T15 until nose wheel is on marking on taxilane.
G3, G4	121.95 MHz	Aircraft shall be pushed back to face north onto aircraft stand taxilane T17 then towed forward until nose wheel is on marking 2.
G5	121.95 MHz	Aircraft shall be pushed back to face north onto aircraft stand taxilane T17 then towed forward until nose wheel is on marking 1.
501	121.95 MHz	Aircraft shall be pushed back to face north onto aircraft stand taxilane T17 then towed forward until nose wheel is on marking 1.
502, 503	121.95 MHz	Aircraft shall be pushed back to face north onto aircraft stand taxilane T17 then towed forward until nose wheel is on marking 2.
504, 505	121.95 MHz	Aircraft shall be pushed back to face north onto aircraft stand taxilane T17 then towed forward until nose wheel is on marking 1.
506, 507, 508, 509, 510, 511, 512, 513, 514, 515, 516, 517, 518, 519, 520, 521	121.95 MHz	Aircraft shall be pushed back to face south onto taxiway D.
522, 523, 524, 525	121.95 MHz	Aircraft shall be pushed back to face south onto taxiway D, then towed forward until abeam stand 522 with nose wheel is on marking on taxiway.

4.4.4 Aircraft parking at SAT-1 Apron (28 stands)

Aircraft Stands	Ground Control Frequency	Push Back Instructions
S101	121.7 MHz	Aircraft shall be pushed back to face west onto aircraft stand taxilane T18.
S102	121.7 MHz	Aircraft shall be pushed back to face west onto aircraft stand taxilane T19.
S103	121.7 MHz	Aircraft shall be pushed back to face west onto aircraft stand taxilane T18.
S104	121.7 MHz	Aircraft shall be pushed back to face west onto aircraft stand taxilane T19.
S105	121.7 MHz	Aircraft shall be pushed back to face west onto aircraft stand taxilane T18.
S106	121.7 MHz	Aircraft shall be pushed back to face west onto aircraft stand taxilane T19.
S107	121.7 MHz	Aircraft shall be pushed back to face west onto aircraft stand taxilane T18.
S108	121.7 MHz	Aircraft shall be pushed back to face west onto aircraft stand taxilane T19.
S109	121.7 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T18.
S110	121.7 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T19.
S111	121.7 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T18.
S112	121.7 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T19.
S113	121.7 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T18.
S114	121.7 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T19.
S115	121.7 MHz	Aircraft shall be pushed back to face west onto aircraft stand taxilane T18.
S116	121.7 MHz	Aircraft shall be pushed back to face west onto aircraft stand taxilane T19.
S117	121.7 MHz	Aircraft shall be pushed back to face west onto aircraft stand taxilane T18.
S118	121.7 MHz	Aircraft shall be pushed back to face west onto aircraft stand taxilane T19.
S119	121.7 MHz	Aircraft shall be pushed back to face west onto aircraft stand taxilane T18.
S120	121.7 MHz	Aircraft shall be pushed back to face west onto aircraft stand taxilane T19.
S121	121.7 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T18.
S122	121.7 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T19.
S123	121.7 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T18.
S124	121.7 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T19.
S125	121.7 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T18.
S126	121.7 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T19.
S127	121.7 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T18.
S128	121.7 MHz	Aircraft shall be pushed back to face east onto aircraft stand taxilane T19.

4.5 Responsibilities

4.5.1 Responsibilities of the pilot-in-command

When the aircraft is fully ready the pilot-in-command is responsible to obtain the start-up and push back permission, stating the parking position.

4.5.2 Responsibilities of the ground engineer

The ground engineer of the Airline or Ground Handling Agent is responsible for a safe process of aircraft start up and push back and to report to the pilot-in-command when he/she and the tug are clear of the taxiway in the event of low visibility condition.

4.5.3 Responsibilities of the tug driver

The tug driver is responsible to ensure that the aircraft is pushed back (and pulled forward if required) toward the right direction onto the taxilane.

4.5.4 Responsibilities of the Apron Control Tower

The Apron Controller is responsible to monitor the engine start up and push back activities and to ensure that the aircraft will be pushed back toward the right direction onto the taxilane.

4.6 Actions to be taken

4.6.1 Actions to be taken by the pilot-in-command

When the aircraft is fully ready the pilot-in-command shall:

Ensure that the area behind an aircraft is clear of vehicles, equipment and other obstructions before the start-up or push back of aircraft commences. This is to be done using standard phraseology in communication with the ground operations headset operator.
Ensure that prior to the start-up, the pilot shall be certain that the propellers or the air flows caused by the engine cannot cause injuries or damage to persons or properties on ground. This is to be done by using standard phraseology in communication with the ground operations headset operator.
Contact Ground Control for permission to start up the engine(s). In normal operations, the engine start-up at the aircraft parking position is not allowed.
Ensure that the ground engineer, or the person responsible for ground to cockpit communications who is in direct intercom-radio contact with the pilot-in-command, acknowledges the start-up permission. In the event intercom-radio contact is not available, the use of standard hand signals will be used.
Ensure that the anti-collision beacons of the aircraft have been switched on before pushing back or starting the engine and to obtain an “all-clear” signal from the ground operations headset operator.
During push back operations, all aircraft shall be pushed back with its fuselage longitudinally centred over, and parallel to, a taxiway centre line before commencing the engine start. Should the engine start be performed at the aircraft parking positions, ensure that the requirements for such engine start up conditions are met.
Ensure that the ground engineer or ground operations headset operator acknowledges the permission.
Ensure that the aircraft is being pushed back in the right direction onto the taxilane.
Request permission from Ground Control to taxi when the tug has been disconnected as confirmed by the ground engineer and the ground engineer or ground operations headset operator has given the “all clear” signal .

4.6.2 Actions to be taken by the ground engineer

The ground engineer of the Airline or Handling Agent shall:

Ensure that the stand area is clear of any obstacle and FOD.
Ensure that the tug is connected to the aircraft and that the tug driver is completely ready to perform the push-back.
Acknowledge the Ground Control permission to start up the engine(s) to the pilot-in-command.
Ensure that the anti-collision beacons of the aircraft are switched on.
Monitor the engine(s) start up sequence.
Acknowledge the Ground Control permission for push back to the pilot-in-command.
Ensure that the tug driver understood the push back permission (by hand -signaling to the tug driver) and starting the push back manoeuvre.
Ensure that the aircraft is pushed back toward the right direction onto the taxilane.
Make sure that during the push back manoeuvre he/she will be in contact with the pilot-in-command at all times.
Ensure that the tug has been disconnected from the aircraft on the taxilane stop position and confirm so to the pilot-in-command.
When disconnected from the radio contact with the pilot-in-command, give the “all clear” signal to the pilot-in-command, being well clear of the aircraft’s path of taxiing.
Return to the stand area.

During low visibility conditions (CAT II) the ground engineer will, together with the tug driver, return behind the double white marking line on the apron surface as soon as possible and will indicate to the pilot-in-command that both of them are clear of the taxiway.

Note: CAT II: Runway Visual Range of less than 550 m or cloud base of less than 200 ft.

4.6.3 Actions to be taken by the tug driver

The tug driver of the Airline or Handling Agent shall:

Ensure that the tug is properly connected to the aircraft
Start the push back manoeuvre when permission to do so has been given by the ground engineer.
Make sure that the aircraft is pushed back toward the right direction onto the taxilane stop position.
Disconnect the tug from the aircraft when in position on the taxilane.
Return to the stand area.

During low visibility conditions (CAT II) the tug driver will, together with the ground engineer, return behind the red clearance line marking on the apron surface as soon as possible.

Note: CAT II: Runway Visual Range of less than 550 m or cloud base of less than 200 ft.

4.6.4 Actions to be taken by the Apron Control Tower

The Apron Controller will:

Monitor the engine(s) start up and push back activities.
Ensure that the aircraft will be pushed back toward the right direction onto the taxilane.

5. Taxi Procedures

5.1 Taxi Instructions

5.1.1 For departing aircraft, Ground Controller shall issue taxi instructions containing the following items in the order listed:

a) holding position;
b) runway designator;
c) taxi routes;
d) any other pertinent information.

For example:

“…C/S… TAXI TO HOLDING POINT RUNWAY ONE NINE VIA TANGO FOUR, CHARLIE, CHARLIE THREE, BRAVO ONE.”

5.1.2 For arriving aircraft, Ground Controller shall issue taxi instructions containing the following items in the order listed:

a) taxi routes;
b) parking stand;
c) any other pertinent information.

For example:

“…C/S… TAXI VIA ECHO, DELTA SEVEN, GOLF, TANGO ONE ZERO, TANGO ONE TWO, YOUR STAND DELTA SIX.”

5.2 Extra caution is required when crossing service roads in the manoeuvring area.

5.3 On the main apron where additional 180 degrees turn markings are established. The markings T9A and T9B connect taxilane T9
with taxilane T8 and the markings T10A and T10B connect taxilane T10 with taxilane T11 are provided. The routes may only be used when instructed to do so by ATC (ATC discretion).

5.4 Taxilanes T8, T9, T10, T11 and T12 are able to accommodate aircraft up to code E (wingspan less than 65 m).

6. Runway Utilization Procedures

6.1 Runway-in-use

The runway-in-use is selected by Suvarnabhumi Control Tower as the best for general purpose. If it is unsuitable for a particular operation, the pilot can obtain permission from ATC to use another but must accept that he may thereby incur a delay.

6.2 Runway Friction Measurement

6.2.1 The friction coefficient of runway surface is measured periodically by the use of a Surface Friction Tester (SFT) Vehicle, SAAB or VOLVO. This tester which is equipped with self wetting features uses the fifth wheel with a tire that meets the requirements of ASTM E1551 incorporating with measuring system and computerized data processing and records.

6.2.2 The test will be performed on the surface at a speed of 95 km/h with 1 mm thick water depth underneath the testing wheel, it will be carried out in two directions over the usable length of runway at approximately 3 and 6 m each side of the runway centre line. The test results provide average of friction values of 100 m segments along the length of the runway. Should the friction value fall to 0.34 or less, NOTAM will be promulgated to notify that the runway may be slippery when wet.

Friction Value

Determination of the value

>0.34

Normal

≤0.34

(NOTAM will be promulgated)

May be slippery when wet

6.3 Departure sequence

6.3.1 Departure shall normally be cleared in the order in which they are ready for take-off, except that deviations may be made from this order of priority to facilitate the maximum number of departures with the least average delay.

6.3.2 To increase runway capacity and to comply with slot times if required, ATC may re-order departure sequence at any time. In addition, intersections will be assigned for departure. Pilots unable to accept the reduced take-off run available for the assigned intersection, shall inform ATC directly.

6.4 Departure clearance

6.4.1 The order in which aircraft are given take-off clearances will be determined on the basis of normal traffic priorities, the application of wake turbulence standard separation and departure slot allocations and management.

6.4.2 Under normal circumstances all departing aircraft will be issued with SIDs. If, for traffic management reason, a SID has to be cancelled, the pilot will be given a specific departure instruction.

6.5 Intersection departure

Departing aircraft will normally be directed by ATC to use the full length of the runway for take-off. Pilots-in-command may request or ATC may propose an intersection departure to resolve a particular runway or manoeuvring area conflict. The final decision whether to make an intersection departure rests with the pilot-in-command.

6.6 Clearance for immediate take-off

A pilot receiving an immediate take-off instruction is required to act as follows:

if waiting clear of the runway, taxi immediately on to it and begin his take off run without stopping his aircraft;
if already lined up on the runway, take off without delay;
if unable to comply with the instruction, inform ATC immediately.

6.7 Departures – Minimum Runway Occupancy Time

6.7.1 On receipt of line-up clearance pilots should ensure, commensurate with safety and standard operation procedures, that they are able to taxi into the correct position at the hold and line up on the runway as soon as the preceding aircraft has commenced its take off roll.

6.7.2 Whenever possible, cockpit checks should be completed prior to line up and any checks requiring completion whilst on the runway should be kept to the minimum required. Pilots should ensure that they are able to commence the take off roll immediately after take off clearance is issued.

6.7.3 Pilots not able to comply with these requirements should notify ATC as soon as possible.

6.7.4 Pilots shall prepare for the following take-off run available (TORA):

RUNWAY 01	TORA (m)
B13	4 000
B12	3 890

RUNWAY 19	TORA (m)
B1	4 000
B2	3 870

RUNWAY 02R	TORA (m)
E21	3 700
E19	3 590

RUNWAY 20L	TORA (m)
E1	3 700
E2	3 590

RUNWAY 02L	TORA (m)
F12	4 000
F11	3 890

RUNWAY 20R	TORA (m)
F1	4 000
F2	3 900

6.7.5 In order to expedite departure traffic, the runway declared distance at each additional available departing point when entering from taxiway, are as follows:

RUNWAY 01	TORA (m)
B11	2780

RUNWAY 19	TORA (m)
B3	2970

RUNWAY 02R	TORA (m)
E15	2670
E17	3220

RUNWAY 20L	TORA (m)
E5	2780
E3	3220

RUNWAY 02L	TORA (m)
F10	3220

RUNWAY 20R	TORA (m)
F3	3080

Remarks: The aircraft take-off from these points shall be approved when traffic permitted in VMC only.

6.8 Arrivals – Minimum Runway Occupancy Time

6.8.1 Pilots are reminded that rapid exit from the landing runway enables ATC to apply minimum spacing on final approach that will achieve maximum runway utilization and will minimize the occurrence of ‘go-arounds’.

6.8.2 The procedures for Minimum Runway Occupancy Time shall be strictly applied in order to achieve the highest possible rate for arrivals and departures.

6.9 High Intensity Runway Operation

6.9.1 To achieve the highest possible rate/hour for arrivals and departures, runway occupancy times are to be reduced to a minimum, as a rule. Runways shall be vacated via high speed turn-offs.

6.9.2 Whenever runway conditions permit, pilots should prepare their landing so as to vacate the runways via the following high speed turn-offs.

RUNWAY 01	DISTANCE TO TURN OFF (m)
B7	1770
B5	2350
B3	2740

RUNWAY 19	DISTANCE TO TURN OFF (m)
B8	1640
B10	2050
B11	2560

RUNWAY 02R	DISTANCE TO TURN OFF (m)
E12	1360
E7	2050
E5	2560

RUNWAY 20L	DISTANCE TO TURN OFF (m)
E9	1470
E13	2050
E15	2440

RUNWAY 02L	DISTANCE TO TURN OFF (m)
F6	1700
F4	2210
F3	2860

RUNWAY 20R	DISTANCE TO TURN OFF (m)
F5	1650
F7	2100
F9	2500
F10	3000

Remarks: Distance to turn off is the distance of the respective runway to turn-off intersection.

6.9.3 Taxi procedures for arriving aircraft runway 02L/20R

After landing runway 02L/20R, aircraft are not to stop on rapid exit taxiway to awaiting instructions from ATC, but should continue taxi via the following taxi procedures, unless otherwise instructed by ATC.

6.9.3.1 Runway 02L: All landing aircraft should continue taxi to TWY F and W then hold short of RWY 02R. Remain on the TWR FREQ (119.0 MHz). Explicit runway crossing clearance required.

6.9.3.2 Runway 20R: All landing aircraft should continue taxi to TWY F and Z then hold short of RWY 20L. Remain on the TWR FREQ (119.0 MHz). Explicit runway crossing clearance required.

6.9.4 The procedures for Minimum Runway Occupancy Time shall be strictly applied in order to achieve the highest possible rate for arrivals and departures.

7. Low Visibility Operations

7.1 General

7.1.1 Low visibility procedures will be established for operation in a visibility of less than RVR 550 m or a cloud base of less than 200 ft.

7.1.2 Special ATC procedures and safeguarding will be applied during CAT II operations to protect aircraft operating in low visibility and to avoid interference to the ILS signals in accordance with ICAO Doc 9365: Manual of all-weather operations. Pilots will be informed when these procedures are in operation by ATIS or RTF.

7.1.3 Runway 19/01 and runway 20L/02R, subject to serviceability of the required facilities, are suitable for Cat II operations by operators whose minima have been accepted by The Civil Aviation Authority of Thailand (CAAT).

7.1.4 Due to ILS system runway 20R/02L not available, runway 20R/02L shall be used for departure only.

7.2 Arrival

7.2.1 Cat II approach and landing

7.2.1.1 Pilots who wish to carry out an ILS Cat II approach shall inform Bangkok Approach on initial contact.

7.2.1.2 Pilots may carry out a practice ILS Cat II approach at any time. But the full safeguarding procedures will not be applied and pilots should anticipate the possibility of ILS signal interference.

7.2.1.3 When low visibility procedures are in operation, a much reduced landing rate can be expected due to the requirement for increased spacing between arriving aircraft.

7.2.1.4 Aircraft will be vectored to intercept the ILS localizer at least 10 NM from touchdown.

7.2.2 Runway exits

7.2.2.1 All runway exits are equipped with green/yellow coded taxiway centre line lights to indicate the boundary of the localizer sensitive area.

7.2.2.2 Pilots are required to make a “RUNWAY VACATED” call giving due allowance for the size of the aircraft to ensure that the entire aircraft has vacated the localizer sensitive area.

7.2.2.3 Aircraft shall vacate the runway via the first convenient exist taxiways which are designated as follows:

Runway 19 via B8, B10, B11,B12, B13
Runway 01 via B7, B5, B3, B2, B1
Runway 20L via E9, E13, E15, E17, E19, E21
Runway 02R via, E12, E7, E5, E2, E1

Pilots not able to comply with these requirements should notify ATC immediately.

7.3 Departure

7.3.1 Runway holding positions

7.3.1.1 ATC will require departing aircraft to use the Cat II holding positions listed below:

Runway 19: B1, B2
Runway 01: B13, B12
Runway 20L: E1, E2
Runway 02R: E21, E19
Runway 20R: F1, F2
Runway 02L: F12, F11

7.3.1.2 Except as described above, other intersection take-offs are not permitted.

7.3.2 Low visibility take-off

7.3.2.1 Pilots wishing to conduct an ILS guided take-off shall inform ATC on start up in order to ensure that the protection of the localizer sensitive area is provided.

7.4 Taxiing aircraft

7.4.1 Taxiing aircraft must follow the lighted taxiway centre line in relation to the standard taxi route provided by ATC. The deviation from the standard taxi route may be approved for traffic reason.

7.4.2 When low visibility operating procedures are in operation pilots-in-command shall adjust aircraft taxiing speeds to ensure that they are able to comply with ATC instructions.

7.5 Towing of aircraft

7.5.1 Aircraft towing will be restricted when the RVR down to less than 550 m.

7.6 Aircraft guidance under all-weather operations category II

7.6.1 Taxiway centre line lights

7.6.1.1 As soon as the operation of category II low visibility procedures is announced, aircraft will be only permitted to taxi on taxiways with operating centre line lights.

7.6.1.2 Taxiway centre line lights within the ILS sensitive area are colour-coded (Green/Yellow) from runway 19/01 to taxiway B and from runway 20L/02R to taxiway E. To indicate that the aircraft has vacated the ILS sensitive area, pilots are to delay the call “RUNWAY VACATED” until the aircraft has completely passed the end of the Green/Yellow colour–coded taxiway centre line lights.

7.6.2 Stop bars

7.6.2.1 Taxiing across stop bars is strictly prohibited as long as they are in operation. No kind of clearance includes permission to taxi across a stop bar in operation.

7.6.2.2 Stop bar is provided to assist in preventing inadvertent incursions of aircraft and vehicles onto the runway.

7.6.2.3 Stop bars are installed at following locations:

Taxiway B1, B2, B3, B11, B12, B13
Taxiway E1, E2, E3, E5, E10, E15, E17, E19, E21
Taxiway F1, F2, F3, F10, F11, F12, F15
Taxiway W, Y, Z

7.6.3 No-entry bar

7.6.3.1 No-entry bar is provided across a taxiway which is intended to be used as an exit only taxiway to assist in preventing inadvertent access of traffic to that taxiway.

7.6.3.2 No-entry bar is provided to prevent traffic from entering the taxiway in the wrong direction.

7.6.3.3 No-entry bars are installed at following locations:

Taxiway B5, B7, B8, B10
Taxiway E7, E9, E12, E13
Taxiway F4, F5, F6, F7, F8, F9

7.6.4 Intermediate holding position lights

7.6.4.1 Taxiing across intermediate holding position lights is allowed.

7.6.4.2 Intermediate holding position lights are installed at some intermediate holding position.

7.6.4.3 Intermediate holding position lights consist of three fixed unidirectional lights showing yellow in the direction of approach to intermediate holding position.

7.7 Adverse weather warning

7.7.1 Aircraft will not be refused permission to land or take off at Suvarnabhumi International Airport solely because of adverse weather conditions. The pilot-in-command of a commercial air transport aircraft shall be responsible for operation in accordance with applicable company weather minima.

8. Adverse Weather Condition & Procedures

Adverse Weather Condition Warning at Suvarnabhumi International Airport : Adverse weather condition that causes thunderstorms and/or strong wind and even lightning may endanger airside operation to a large extent. Therefore, when it is predicted to occur, the effective warning system shall be deployed for airside workers and vehicle operators. The objective of this warning is to elaborate how the situations of each phase are and to alert all the airside personnel to work more carefully and safely in the airfield. Adverse Weather Condition Warning at Suvarnabhumi International airport can be defined into 3 levels;

Level 1 Thunderstorms Observations Reporting: The report is used when thunderstorms are detected within 50 km from Aerodrome Reference Point (ARP) and their directions are heading Suvarnabhumi International airport.

Level 2 Thunderstorms and/or Strong Wind Warning: This warning is used when thunderstorms and/or strong wind are more than 25 kt within 16 km from Aerodrome Reference Point (ARP) and their directions are towards or over Suvarnabhumi International airport.

Level 3 Lightning Warning: The warning is employed when thunderstorms are over Suvarnabhumi International airport and lightning characteristic is obviously detected.

8.1 Level 1 : Thunderstorms Observation Reporting

Suvarnbhumi International airport will notify all concerned units by announcing “Thunderstorms Warning” when adverse weather condition level 1 takes place. The details how the announcement is made has already distributed to the operators concerned by means of official letter.
When the condition of adverse weather condition level 1 terminates, Suvarnabhumi International airport will announce “Thunderstorms Warning Terminated”.

Airlines, Ground Service Providers, and Airside Operator’s Procedures

When receive the adverse weather condition level 1;

Report the situation to their staff.
Operate with carefulness, be alert of the aircraft and vehicle’ safety and tightly secure all ground service equipments.

8.2 Level 2 : Thunderstorm and/or strong wind warning

When thunderstorms and/or strong wind are more than 25 kt within 16 km from Aerodrome Reference Point (ARP) and their direction are towards or over the aerodrome, Suvarnabhumi International airport will notify all concerned units by announcing “Thunderstorms and Strong Wind Warning”
And when receive the cancellation of adverse weather condition, Suvarnabhumi International airport will announce as “Thunderstorms and Strong Wind Warning Terminated”

Airlines, Ground Service providers, and Airside Operator’s Procedures

When receive the adverse weather condition level 2;

Report the situation to their staff.
Remove the stair from the aircraft and tie the gantry securely to the ground and also close the front part of stair.
Ensure aircraft parking brake is applied during on the parking stand.
Ensure aerobridge is parked on the assigned markings and close the front part of it.
Bond the aircraft ground receptacle.
Ensure that light aircraft are parked facing head wind and secured to the ground.

8.3 Level 3 : Lightning warning

When thunderstorms are over Suvarnabhumi International airport and may likely cause lightning, Suvarnabhumi International airport will notify all concerned units by announcing “Lightning Warning” and instantly turn on the red warning light and siren.
And when receive the cancellation of adverse weather condition, turn off the red warning light and siren and announce as “Lightning Warning Terminated”.

Suvarnabhumi Air Traffic Control Center’s Procedures

When receive the adverse weather condition warning level 3 from Airside Operations Control Center (AOCC), keep monitoring the situation and inform Flight Operation of the airlines concerned about the adverse weather condition warning level 3 at Suvarnabhumi International airport and/or announce through Automatic Terminal Information Service (ATIS).

Airlines, Ground Service Providers, and Airside Operator’s Procedures

When receive the adverse weather condition level 3;

Restrain from operating and stay in the nearby buildings, or vehicles, or lightning shelters, or high mass light poles within 22.60 m, or under aircraft with ground receptacle bonded and monitor the weather conditions outside periodically.
Avoid contacting or staying near the aircraft without ground receptacle connected.
When receive the lightning warning while being outside the building, do not lie down on the floor. Do sit on feet together with knees up in order to least contact with the ground and decrease the overall body height which might induce electricity through the body from the lightning currents.
Refrain from refueling the aircraft.
Airlines informs ground service providers the adverse weather condition warning level 3 and recommend them the temporary suspension of ground operations and cease the communication with pilot.

Arrival Aircraft

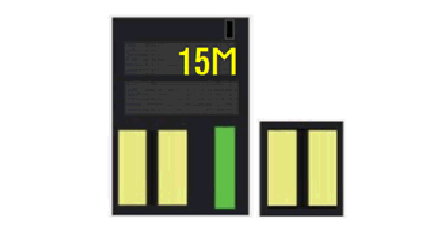

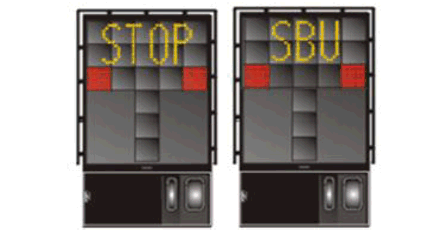

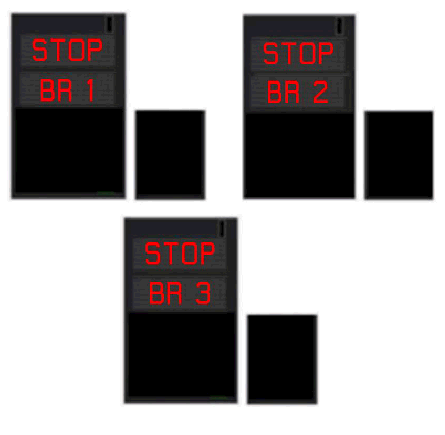

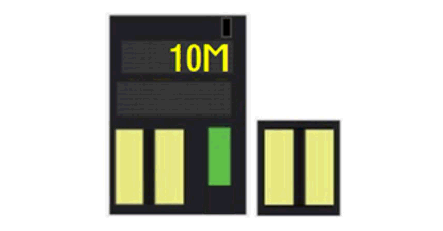

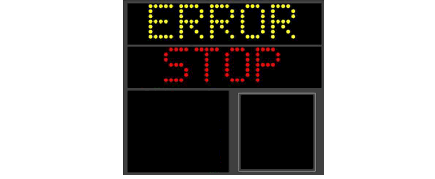

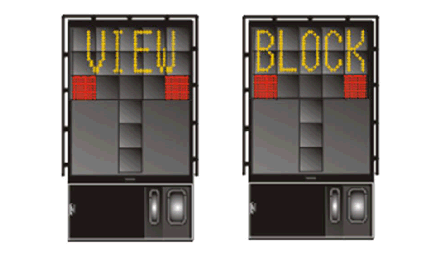

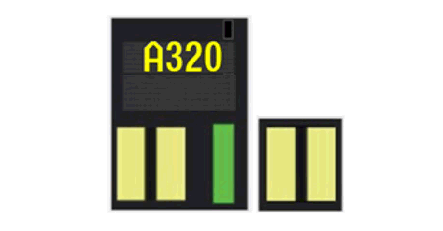

Aircraft designated to park at parking bay with Visual Docking Guidance System: VDGS;
1. While the aircraft is approaching to the parking bay, the License Mechanic who is responsible for aircraft conveyance shall monitor the aircraft movement in order to make sure the moving aircraft is safe. This should be done while he/she is in the safe area.
2. When the aircraft reaches the parking bay and is in the right position of stand markings, the License Mechanic shall coordinate with pilots to apply parking brake and bond the aircraft’s nose gear and aircraft ground receptacle. Also, wait for the cancellation of adverse weather condition warning from Suvarnabhumi International airport. Then, the operations could be done as normal.
Aircraft arranged to park at parking bay without Visual Docking Guidance System: VDGS;
1. Airlines and ground service providers must provide the License Mechanic who is responsible for aircraft conveyance to perform as Marshaller leading the aircraft to its parking bay.
2. When the aircraft reaches the parking bay and is in the right position of stand markings, the License Mechanic shall coordinate with pilots to apply parking brake and bond the aircraft’s nose gear and aircraft ground receptacle. And also, wait for the cancellation of adverse weather condition warning from Suvarnabhumi International airport. Then, the operations should be done as normal.

Departure Aircraft

Departure aircraft operating at parking bay should be done as follows;

While the aircraft is being pushed back from parking bay and/or being on the taxilane ready to take off with all engines started, operate a normal procedures until they are completed and the aircraft has taken off.
In case the aircraft is being pushed back but the engine is not started yet. If the ground service providers consider bringing the aircraft back to its parking bay and wait for the cancellation of adverse weather condition warning from Suvarnabhumi International airport, airline or ground service providers must inform AOCC of that decision. This is because the airport is needed to rearrange the parking bay for another arriving aircraft.
For the aircraft in no.2 which arranged to park at the Contact Gate that has passenger loading bridges, while waiting for the adverse weather condition warning to be cancelled and airline or ground service provider considers that the aircraft bridge is needed again, inform the Airside Operations Control Center (AOCC) accordingly. Also, follow the procedures for facility request from Suvarnabhumi International airport properly.

Suspending the operations of airlines and/or ground service providers is conducted solely for the sake of safety of all operators which was mutually decided between airline members/ ground service providers and the airport operator. Therefore, in case of flight delays, airlines and ground service providers shall not claim any compensation from Suvarnabhumi International airport or concerned units.

9. Operations on parallel runways

There are three runways at Suvarnabhumi International Airport. When all runways are available, the operations of parallel runways are as follows:

9.1 South Flow (Runway 19, Runway 20)

Runway 19 is used for departures and arrivals
Runway 20L is used for departures
Runway 20R is used for arrivals

9.2 North Flow (Runway 01, Runway 02)

Runway 01 is used for departures and arrivals
Runway 02R is used for departures
Runway 02L is used for arrivals

10. Removal of disabled aircraft.

10.1 When the aircraft is involved in an accident at Suvarnabhumi International Airport, the aircraft operator or the registered owner is responsible for removal of its disabled aircraft. If the accident is likely to cause danger or obstruction to the movement of other aircraft or vehicles, the General Manager of Suvarnabhumi International Airport or his authorized representative may order the aircraft operator or the registered owner to remove its disabled aircraft without delay.

10.2 If the aircraft operator or the registered owner does not comply with such order, the General Manager of Suvarnabhumi International Airport or authorized representative shall empower to remove the aircraft himself. The expense incurred in removing such aircraft shall be recovered from aircraft operator or the registered owner. The General Manager of Suvarnabhumi International Airport or authorized representative shall not be responsible for any damage occurring to the aircraft during its removal.

11. Hot Spot (HS) Areas.

11.1 HS1 – Due to several intersections around this area which connect to rapid exit taxiways, all aircraft are required to hold, as instructed by ATC, at intermediate holding position marking/lights. As taxiing from taxiway D8 to E for runway 02R is 90 degrees turn, pilot should be aware of unintentionally executing runway incursion through taxiway E12.

11.2 HS2 – Due to several intersections around this area which connect to rapid exit taxiways, all aircraft are required to hold, as instructed by ATC, at intermediate holding position marking/lights. As taxiing from taxiway C7 to B for runway 01 is 90 degrees turn, pilot should be aware of unintentionally executing runway incursion through taxiway B5.

11.3 HS3 - Caution: Possible misidentification of rapid exit taxiway. When instructed by ATC to vacate runway 20L via taxiway E13, pilot should ensure that vacating on correct rapid exit taxiway.

11.4 HS4 - Caution: Aircraft on taxiway W from taxiway F after landing runway 02L do not cross the runway holding position marking/lights without a clearance. Explicit runway crossing clearance required.

11.5 HS5 - In case of vacating runway 02L via taxiway F4, aircraft shall turn left to taxiway F toward northbound, unless otherwise instructed by ATC.

11.6 HS6 - Caution: Aircraft on taxiway Z from taxiway F after landing runway 20R do not cross the runway holding position marking/lights without a clearance. Explicit runway clearance required.

12. Starting and Running of Aircraft Engine Procedures.

12.1 Starting or Running of Aircraft Engine(s)

12.1.1 In normal operations, engine start up at the aircraft parking position is not allowed. Aircraft operators wishing to start or run aircraft engine at the aircraft parking positions, shall ensure that the following conditions are met:

12.1.1.1 The aircraft engine(s) are running at minimum idle power.

12.1.1.2 The aircraft is properly parked with its fuselage longitudinally centred over the lead line and nose gear on top of the parking position painted nose block marking.

12.1.1.3 The aircraft operator shall provide additional ground staff as wing walkers to lookout on both sides of the aircraft; he/she shall keep an eye on specific parts of the aircraft when it is moving and safeguard the rear movement of the aircraft to ensure safe clearance and to prevent collision. He/she shall be in constant communications with the person in charge of the operation.

12.1.1.4 The aircraft operator seeks permission from the Ground Control prior to starting the engine(s).

12.1.1.5 No other aircraft despite ground crew in attendance is on the taxiway centre line or about to push back from an adjacent stand on to the centre line behind the aircraft waiting to start.

12.1.1.6 The pilot-in-command receives an “all-clear” visual and audible signal from the ground engineer or the ground operations headset operator that it is safe to start the engine(s). The pilot-in-command shall bear in mind that even though the start engine permission is received from the Ground Control, the ground engineer or the ground operations headset operator has the final authority that the environment around the aircraft is safe for the engine(s) to be started.

12.1.1.7 The ground crew shall ensure that the area behind an aircraft is clear of vehicles, equipment and other obstructions before the start-up or push back of aircraft commences.

12.1.1.8 Minimum power idle engine runs are limited to ten (10) minutes in duration. Otherwise, the operations shall be done at the run up area or aircraft parking position with no operations conducted in the adjacent area, or as stipulated/directed by the Airside Operations Control Center (AOCC) Tel: +66 2 132 4110.

12.1.2 For the purpose of noise and carbon emission reduction on the apron area, any aircraft that is designated to park at the stand served with passenger loading bridges shall utilize the fixed ground power supply (400Hz) and fixed pre-conditioned air supply provided by the airport if serviceable.

12.1.2.1 Fixed ground power supply (400Hz) - Operators are recommended to reduce electric load immediately after parking. If fixed ground power supply is out of service, mobile GPU or APU may be used with consent from AOCC.

12.1.2.2 APU shall not be used more than 10 minutes before off-block time and 5 minutes after parking.

12.1.2.3 If the operator needs to run an APU more than the mentioned time length, they shall seek approval from the AOCC. Any acts of non-compliance by the aircraft operator will result in actions being taken by the airport authority, including the assignment of parking stand to a remote area.

12.1.2.4 Aircraft operators that would like to run an APU for an extended period of time shall notify the ground staff to ensure that they are prepared for the effect of extra ground noise or exhaust fumes.

12.1.2.5 Fixed Pre-Conditioned Air (PCA) supply -Operators are recommended to turn off the cabin air re-circulation system to prevent outside air mixing with PC-Air. If fixed PCA is out of service, mobile ACU may be used with consent from AOCC.

12.1.3 No aircraft engine shall be started or run unless a licensed pilot or certified mechanic is attending the aircraft controls. Wheel blocks equipped with ropes or other suitable means of chocking the wheels of an aircraft to deter movement shall always be placed in front of the main landing wheels before starting the engine(s), unless the aircraft is locked into position by functioning locking brakes.

12.1.4 All aircraft shall be started and run-up in locations, including leased premises, designated for such purposes by the AOCC (Tel. +662 132 4110). Maintenance run of aircraft engines shall not be performed in the passenger ramp, apron, cargo and public parking areas.

12.1.5 During push back operations, all aircraft should be pushed back with its fuselage longitudinally centred over, and parallel to a taxiway centre line before commencing engine start. If the pilot-in-command wishes to start the engine(s) during push-back, he/she shall coordinate with the ground crew.

12.1.6 Running an aircraft engine is prohibited unless reasonably necessary for maintenance purposes, testing or repairing of such engine. The instruction of mechanics or pilots, or the movement/flight operation of such aircraft shall be done with strict compliance to Suvarnabhumi International Airport Noise Abatement and safety procedures.

12.1.7 Turbo jet and turbo fan cross-bleed engine air-start of multi-engine jet aircraft may be conducted on taxiways, provided that the following conditions are met:

12.1.7.1 The aircraft Auxiliary Power Units (APU) is inoperative.

12.1.7.2 The aircraft operator seeks permission from the Ground Control prior to starting engines.

12.1.7.3 Cross-bleed engine start procedure is conducted while the aircraft is longitudinally centred over and parallel to a taxiway centre line while the engine start is being performed.

12.1.8 Aircraft of departing flights on aircraft parking positions that are subject to delay are prohibited from running the engine(s). Aircraft power supply shall be provided by either: the Passenger Boarding Bridge, APU, or other Ground Power Unit (GPU).

12.1.9 The starting or operating of aircraft engines inside any hangar or within 7.5 m radius of any building or other structures is prohibited.

12.1.10 No aircraft engine exhaust, blast, and/or propeller wash shall be directed in such a manner that may cause injury, damage, or hazard to any person, aircraft, vehicles, equipment, or structure. If it is impossible to taxi the aircraft without compliance with the above, the engine(s) shall be shut off and the aircraft shall be towed.

12.1.11 Aircraft engines shall not be operated during refueling or defueling operations; or, during a fuel spill unless otherwise approved by the Aircraft Rescue and Fire Fighting (ARFF) Officer in Charge.

12.2 Run-Up of Aircraft Engines

12.2.1 High power run of aircraft engines is strictly prohibited at all aircraft parking positions.

12.2.2 All preflight engine run-ups shall be conducted during the hours of 07.00 – 22.00 local time at the run up area located at the north end of Taxiway E between D1 – D2.

12.2.3 Aircraft engines shall not be run in hangars, except in approved engine test areas. Aircraft engines shall be run-up only in designated areas. At no times shall engines be run-up when aircraft is inside any hangar or within 7.5 m radius of any building or other structures, or when persons in observation areas are in the proximity of the propeller slipstream or jet blast.

12.2.4 Aircraft operators shall obtain location approval and instructions from AOCC (Tel. +662 132 4110), before conducting an extended run of any aircraft engine above minimum idle power; high power engine operation, or engine run.

12.2.5 Leak checks, one (1) engine power at idle thrust only per start, may be performed at aircraft parking areas that is limited to ten (10) minutes, provided that the operator provides adequate measures to protect personnel and equipment operating behind the aircraft, and the leak check does not interfere with the use of adjacent gate operations.

12.2.6 Idle engine checks and auxiliary power units are to be operated at the minimum time required to accomplish the necessary maintenance or preflight check.

13. VISUAL DOCKING GUIDANCE SYSTEM

13.1 Introduction

13.1.1 Suvarnabhumi International Airport is equipped with 3 types of Visual Docking Guidance System (VDGS), installed at aircraft parking stands as follow:

13.1.1.1 A1, A2, A3, A4, A5, A6
B1, B2, B3, B4, B5, B6
C1, C2, C3, C4, C5, C6, C7, C8, C9, C10
D1, D2, D3, D4, D5, D6, D7, D8
E1, E2, E3, E4, E5, E6, E7, E8, E9, E10
F1, F2, F3, F4, F5, F6
G1, G2, G3, G4, G5
115, 116, 117, 118, 119, 120, 121, 122, 123, 124, 125, 126, 127, 128, 129
201, 202, 203
301, 302, 303, 304, 305, 306, 307, 308
401, 402, 403
501, 502, 503, 504, 505, 506, 507, 508, 509, 510, 511, 512, 513, 514, 515, 516, 517, 518, 519, 520, 521, 522, 523, 524, 525
Description of system see VTBS AD 2.20 item 13.2.1

13.1.1.2 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114
Description of system see VTBS AD 2.20 item 13.2.2

13.1.1.3 S101, S102, S103, S104, S105, S106, S107, S108, S109, S110, S111L, S111, S111R, S112L, S112, S112R, S113L, S113,
S113R, S114L, S114, S114R, S115L, S115, S115R, S116L, S116, S116R, S117L, S117, S117R, S118L, S118, S118R
S119, S120, S121, S122, S123, S124, S125, S126, S127, S128
Description of system see VTBS AD 2.20 item 13.2.3

13.2 Description of system

13.2.1 The Advanced Visual Docking Guidance System (A-VDGS) is provided at aircraft parking stands A1-A6, B1-B6, C1-C10, D1-D8,
E1-E10, F1-F6, G1-G5, 115-129, 201-203, 301-308, 401-403 and 501-525.

13.2.1.1 System Overview

The RLG GIS206-2 Laser Guided Docking System is a fully automatic aircraft docking guidance system for various types of modern aircraft.

The system utilises 2-axis laser scanning technique to track both the lateral and longitudinal positions of the incoming aircraft and guide the aircraft to the programmed stopping position. In addition, the system also has aircraft ID verification feature to identify the incoming aircraft and check it against the one selected by the operator. If the incoming aircraft fails to match the expected aircraft, an ‘ID FAIL’ indication is immediately issued via display information.

Aircraft type, continuous closing distance, and azimuth guidance, etc., are presented on a single console clearly visible to both the pilot and co-pilot, simultaneously. Figure A shows the Aircraft Display console, mounted on the terminal in front of the aircraft stand.

The system is operated only in the automatic mode. If the system fails, the aircraft must then be marshalled into the stand manually.

13.2.1.2 General warning

Pilot must stop the aircraft immediately if he or she sees that:

The docking system is not activated.
A wrong aircraft type is displayed.
The word STOP is displayed.
A wrong type of aircraft indicates ‘ID FAIL’ is displayed.

13.2.1.3 Docking Procedure

During the docking process, pilot shall confirm that the correct aircraft is displayed on the LED Display Console and proceed slowly forward to parking position.

The following Display Guide shows the azimuth guidance bars at the lower centre of VDGS LED Display Console and interprets the guidance as shown.

Caution: Always steer and follow to the GREEN AZIMUTH CENTRE BAR.

Aircraft left of centre line, steer towards GREEN	Aircraft on centre line	Aircraft right of centre line, steer towards GREEN

The figure below shows the azimuth guidance status on the LED Display Console indicating the aircraft azimuth position when an aircraft approaching to parking position.

	Green light bar illuminates, the aircraft is on centre line. Keep straight ahead.
	If red light bar appears on the left side of the green light bar, the aircraft is off centre line to left. It should be moved rightwards.
	If red light bar appears on the right side of the green light bar, the aircraft is off centre line to right. It should be moved leftwards.

The pilot display of the Advanced Visual Docking Guidance System (A-VDGS) is shown below:

PARKING SEQUENCE:

	In this picture the aircraft is at a distance greater than 30 m from the stop position and is directly at the centre line. Note that the digital close-in distance is not displayed when the aircraft is greater than 30 m away from the stop position. An Airbus A320 aircraft is expected.
	In this picture the aircraft is at exactly 30 m from the stop position, but is off to the right of the centre line. Starting at 30 m, the digital close-in distance (second line of display) is displayed, in 1 m decrements. The progress meter (lower left) will also be activated at this distance.
	The aircraft is at 20 m from the stop position and has returned to the centre line. Note: the position of progress meter. The arrow will advance one position every 2.5 m.
	In this picture the aircraft is at 10 m and is on the centre line.
	The aircraft is now at 3.2 m from the stop position and is on the centre line. Note that at below 5 m, the close-in distance is displayed in 0.2 m decrements.
	Finally the aircraft is perfectly parked at the stop position, and perfectly centred. The word “STOP” is displayed in red. Note also the merging of the arrow and the stop line on the progress meter.
	The word “OK” is displayed in yellow. Docking is successful.

SLOW:

During the docking process, the pilot must taxi into
the aircraft stand at minimum speed. If the system detects that the aircraft is moving too quickly, exceeding the
preset speed limit for accurate detection, it will display "SLOW".

Once the aircraft's speed is reduced to the acceptable range, the "SLOW" message will be switched back to the numerical close-in distance.

ID FAIL:

For this aircraft type ID verification features, the incoming aircraft must be identified and verified at least 12 m before the stop position or otherwise, the system will display “ID FAIL” alternating ID/FAIL on the first row of the display.

The second row of the docking screen will indicate “STOP”. At this point, the aircraft must be manually guided in by a marshaller.

TOO FAR:

If the aircraft overshoots the preset range (more than
1 m), the word “TooFar” will be displayed on the first row of the display.

The second row of the docking screen will indicate “STOP”.

The aircraft shall stop immediately.

ERROR STOP:

The system will display "ERROR" on the first row of the display as indicated if the system detects any hardware error that might affect the normal docking process.

The second row of the display will indicate “STOP”.

At this point, the aircraft must be manually guided in by a marshaller.

GATE BLOCKED:

If an object is found blocking the view from the VDGS to the planned stop position for the aircraft, the docking procedure will be halted with "GATE BLOCK" message.

The second row of the display will indicate "STOP".

At this point, the aircraft must be manually guided in by a marshaller.

EMERGENCY STOP:

The first and second row of the display will show “STOP”.

The docking is aborted and aircraft must be manually guided in by a marshaller.

13.2.2 The Visual Docking Guidance System (VDGS) is provided at aircraft parking stands 101-114.

13.2.2.1 System Overview

13.2.2.2 General Warning

The VDGS System has built in error detection program to inform the aircraft pilot of impending dangers during the docking procedure.

Warning: If the pilot is unsure of the information, being shown on the VDGS display unit, he must immediately stop the aircraft and obtain further information for clearance.

13.2.2.3 Items to check before entering the stand area

Warning: The pilot shall not enter the stand area unless the docking system first is showing the vertical running arrows. The pilot must not proceed beyond the bridge unless these arrows have been superseded by the closing rate bar.

Warning: The pilot shall not enter the stand area unless the aircraft type displayed is equal to the approaching aircraft. The correctness of other information, such as “Door 2” shall also be checked.

13.2.2.4 Docking Procedure

START-OF-DOCKING:

Pressing one of the aircraft type buttons on the Operator Panel starts the system. When the button has been pressed, "WAIT" will be displayed.

CAPTURE:

The floating arrows indicate that the system is activated and in capture mode, searching for an approaching aircraft.
The pilot shall check that the correct aircraft type isdisplayed. The lead-in line shall be followed.
The flight number for the approaching aircraft is displayed on the second line of the display if the information is available.
The pilot must not proceed without manual guidance (aircraft marshalling) unless the arrows have been superseded by the closing rate bar.

TRACKING:

When the laser has caught the aircraft, the floating arrowsare replaced by the yellow centre line indicator.
A flashing red arrow indicates the direction to turn.
The vertical yellow arrow shows position in relation tothe centre line. This indicator gives correct positionand azimuth guidance.

CLOSING RATE:

Display of digital countdown will start when the aircraft is20 m from stop position. This information is shown insteadof the flight number.
When the aircraft is less than 12 m from the stop position,the closing rate is indicated by turning off one row ofthe centre line symbol per 0.5 m of the remaining distance,covered by the aircraft toward the stop position of the stand.
The picture illustrates the aircraft 10 m from stop position,slightly left of the centre line. The red arrow indicatesthe direction to steer.

ALIGNED TO CENTRE:

The aircraft is 8 m from the stop position. The absence of direction arrow indicates an aircraft on the centre line.

SLOW DOWN:

If the aircraft is approaching faster than the accepted speed, the system will show "SLOW DOWN" alternating SLOW/DOWN as a warning to the pilot.

AZIMUTH GUIDANCE:

The yellow arrow indicates an aircraft to the right ofthe centre line, and the red flashing arrow indicatesthe direction to turn.
The aircraft is 4 m from the stop position in this example.

STOP POSITION REACHED:

When the correct stop position is reached, the displaywill show STOP and red lights will be lit.

DOCKING COMPLETED:

When the aircraft has parked, "OK" will be displayed.

OVERSHOOT:

If the aircraft has overshot the stop position more than
1 m, "TOO FAR" will be displayed.

The aircraft shall stop immediately.

STOP SHORT:

If the aircraft is found standing still but has not reached
the intended stop position, the message "STOP OK" will be shown after a while.

Also the red lights are lit.

BAD WEATHER CONDITION:

During heavy fog or rain, the visibility for the dockingsystem can be reduced.

When the system is activated and in capture mode, and a downgrade condition is detected, the pilot display will start flashing the aircraft type, show a " DOWN GRADE " alternating DOWN/GRADE and replace the rolling arrows with a blank lead-in display.

The blank lead-in display will be replaced with the normallead-in bar, once Safedock has been able to acquire a lockonto the aircraft. The DOWN GRADE messageand the flashing aircraft type will remain in the displaythroughout the docking procedure.
