ContactAeronautical Information Management Department Tel: +662 568 8831 Fax: +662 576 1903 AFS: VTBAYOYX Email: [email protected] Email: [email protected] | AIP Supplement for Thailand | AIRAC AIP SUP B 18/26 Effective from 03 SEP 2026 to 25 FEB 2027 Published on 23 JUL 2026 |

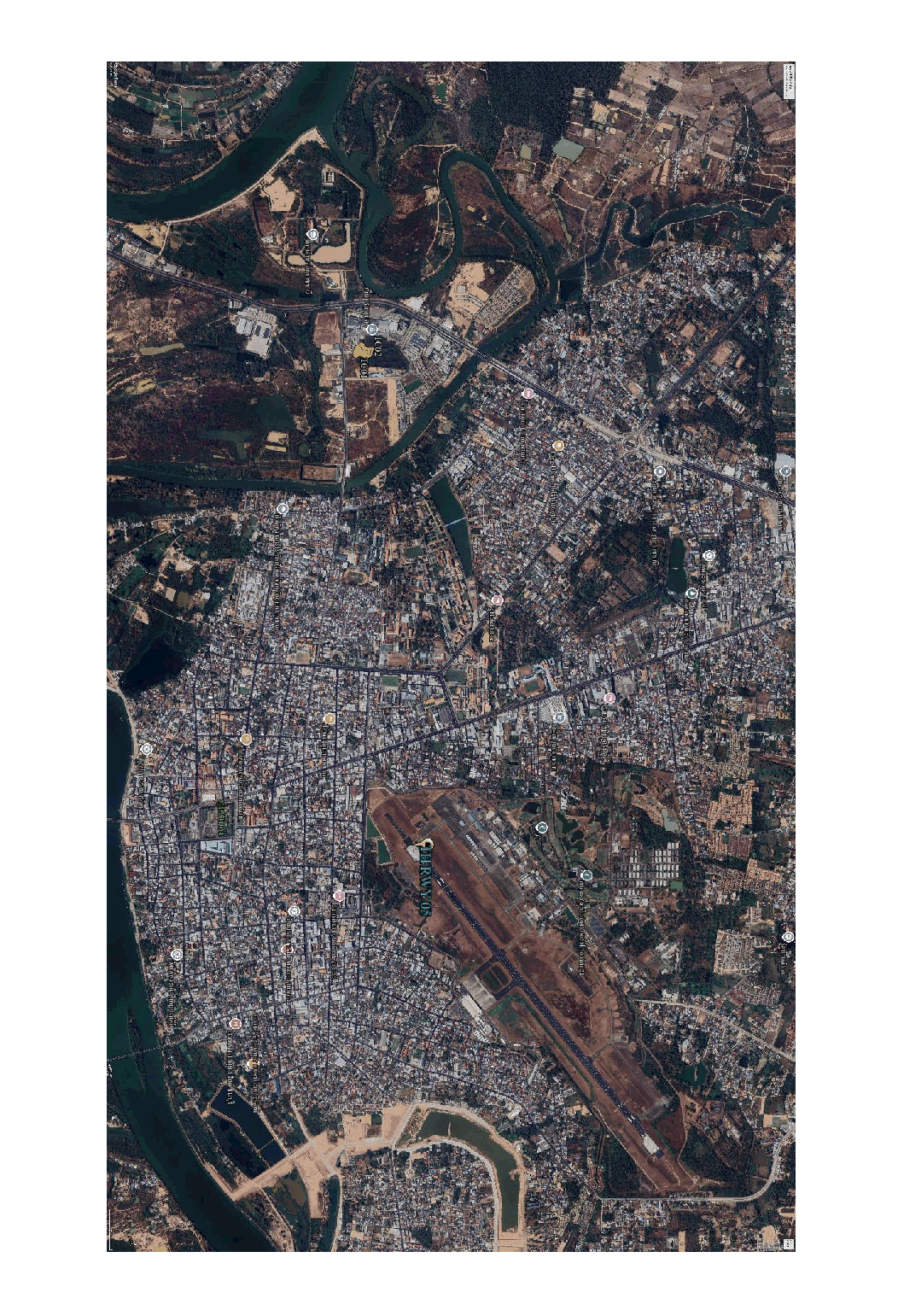

With effect from 3 September 2026 at 2200 UTC until 25 February 2027 at 1530 UTC, this AIRAC AIP Supplement is issued to notify all concerned that the construction of Escent Ubon Ratchathani 2 Condominium near Central Ubon Ratchathani Shopping Centre and the installation of tower cranes will be carried out within the Air Navigation Safety Zone in the vicinity of Ubon Ratchathani Airport (VTUU).
| Item | Lat/Long | Height Data (Resolution) | Distance |
|---|---|---|---|
| Condominium | 15 14 18.90N 104 49 29.00E | 56 m (184 ft) | - |
| Tower crane TC01 | 15 14 18.80N 104 49 29.80E | 115 m (377 ft) | TC01 is located 3,310 m before THR RWY 05 and 1,937 m left of the extended RCL. The tower crane has a maximum jib radius of 50 m. |
| Tower crane TC02 | 15 14 19.60N 104 49 29.00E | 95 m (312 ft) | TC02 is located 3,310 m before THR RWY 05 and 1,972 m left of the extended RCL. The tower crane has a maximum jib radius of 40 m. |
| Remarks: Each tower crane is marked with red flags and equipped with red obstruction lights at the top. | |||
This AIRAC AIP Supplement will remain current until 25 February 2027 at 1530 UTC. Any changes to the information contained herein will be notified by NOTAM.
