AIP Supplement for Thailand

AIRAC AIP SUP

A 40/25

Effective from 02 OCT 2025

to 02 FEB 2027

Published on 21 AUG 2025

THE PARTIAL CLOSURE OF TAXIWAY C AND TAXIWAY K
AT SUVARNABHUMI INTERNATIONAL AIRPORT (VTBS)

1 INTRODUCTION

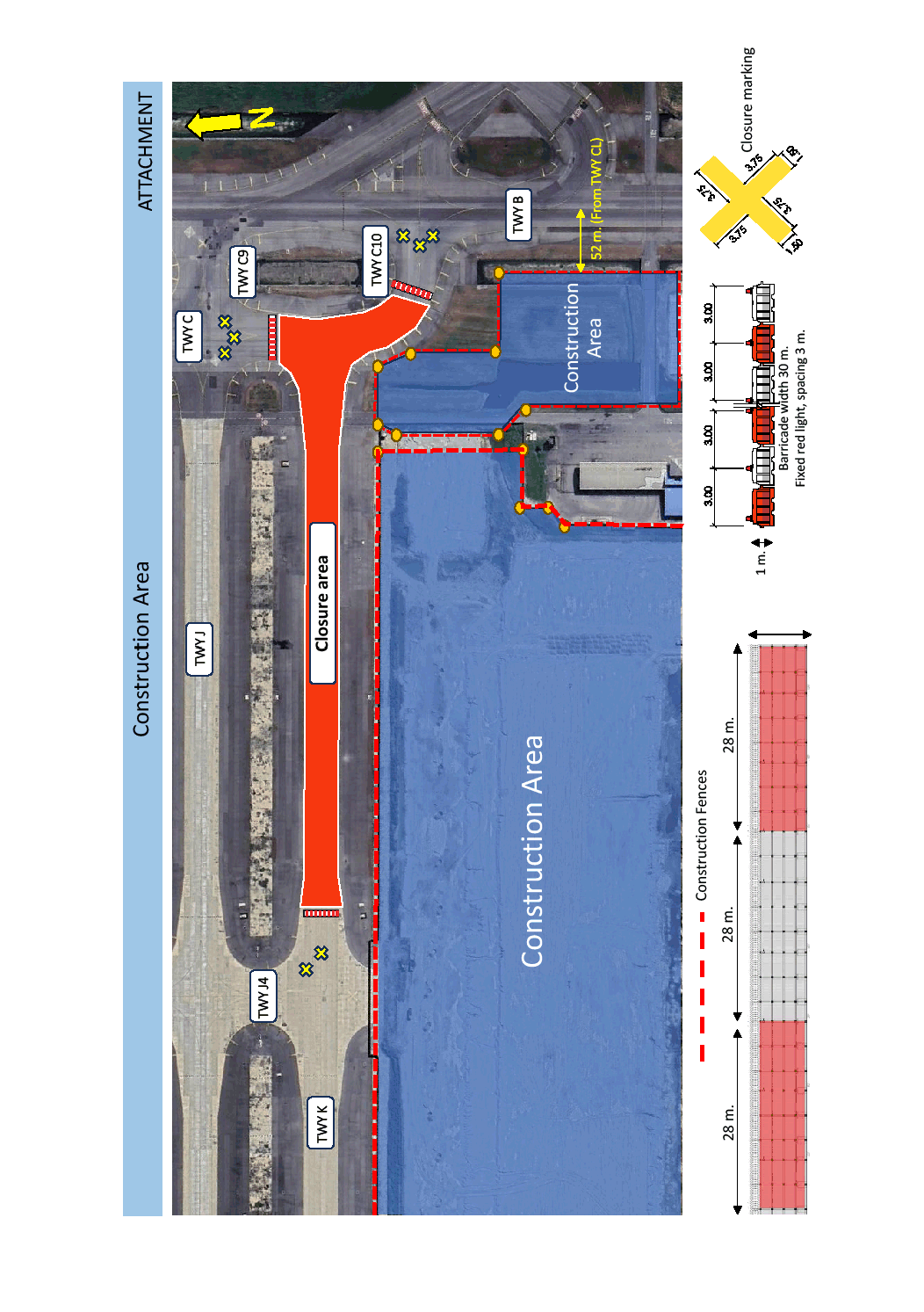

With effect from 2 October 2025 at 0000 UTC to 2 February 2027 at 0100 UTC, the purpose of this AIRAC AIP Supplement is to inform all concerned regarding the closure of taxiway C between taxiway C9 and taxiway C10, taxiway C10 and taxiway K between taxiway C and taxiway J4 at Suvarnabhumi International Airport. (See attachment)

2 DETAILS

2.1 THE CLOSURE OF TAXIWAYS

As a result of the construction area, the following taxiways will be closed:

- Taxiway C between taxiway C9 and taxiway C10

- Taxiway C10

- Taxiway K between taxiway C and taxiway J4

2.2 MARKINGS AND LIGHTING

2.2.1 The details of markings and lighting on associated areas are as follows:

2.2.1.1 Closure markings (yellow crosses) are displayed on a closed portion of taxiways.

2.2.1.2 Taxiway centre line lights, taxiway edge lights and taxiway signage leading to and on taxiway C between taxiway C9 and taxiway C10, taxiway C10 and taxiway K between taxiway C and taxiway J4 will be unserviceable.

2.2.2 The closure area will be blocked off by 1 metre-high frangible barricades painted in alternate band of red and white, barricades will be lighted by omni-directional fixed red lights spacing every 3 M at night and during limited visibility conditions.

2.2.3 The dimension of construction fences is 3 metre-high painted in alternate band of red and white, fences will be lighted by omni-directional fixed red lights spacing every 7.5 M at night and during limited visibility condition.

3 OTHERS

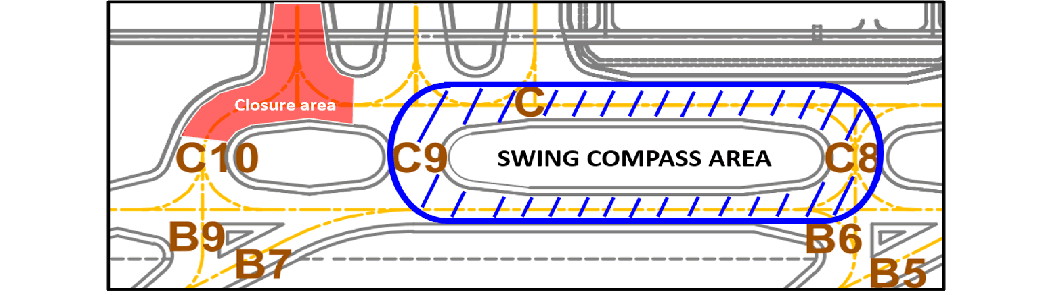

3.1 During construction period, the swing compass area is as specified below:

3.2 Pilots are advised to take precautions when operating near the construction areas.

3.3 There is a presence of machineries operating in the construction area which heights do not exceed the obstacle limitation surfaces (OLS).

4 CONTACT

For further information contact via the following:

Unit: Aeronautical Information Service Sub-Division of Suvarnabhumi International Airport

Tel: +662 132 6931-4

Mobile: +666 2598 0608

E-mail: [email protected]
