AIP Supplement for Thailand

AIP SUP

A 44/25

Effective from 25 AUG 2025

to UFN

Published on 21 AUG 2025

THE TRIAL BASIS OF VOR CHECKPOINTS AT CHIANG MAI INTERNATIONAL AIRPORT (VTCC)

1 INTRODUCTION

With effect from 25 August 2025 at 0100 UTC the purpose of this AIP Supplement is to inform all concerned regarding the trial basis of VOR Checkpoints at Chiang Mai International Airport.

2 DETAILS

2.1 The location of VOR Checkpoints details as follows:

VOR Aerodrome Checkpoints
Location	Radio frequency(DVOR/DME CMA)	Radial/Distance
AT Taxiway G	116.9 MHZ	168 Degree / 0.7 NM
AT Taxiway B	116.9 MHZ	011 Degree / 0.9 NM

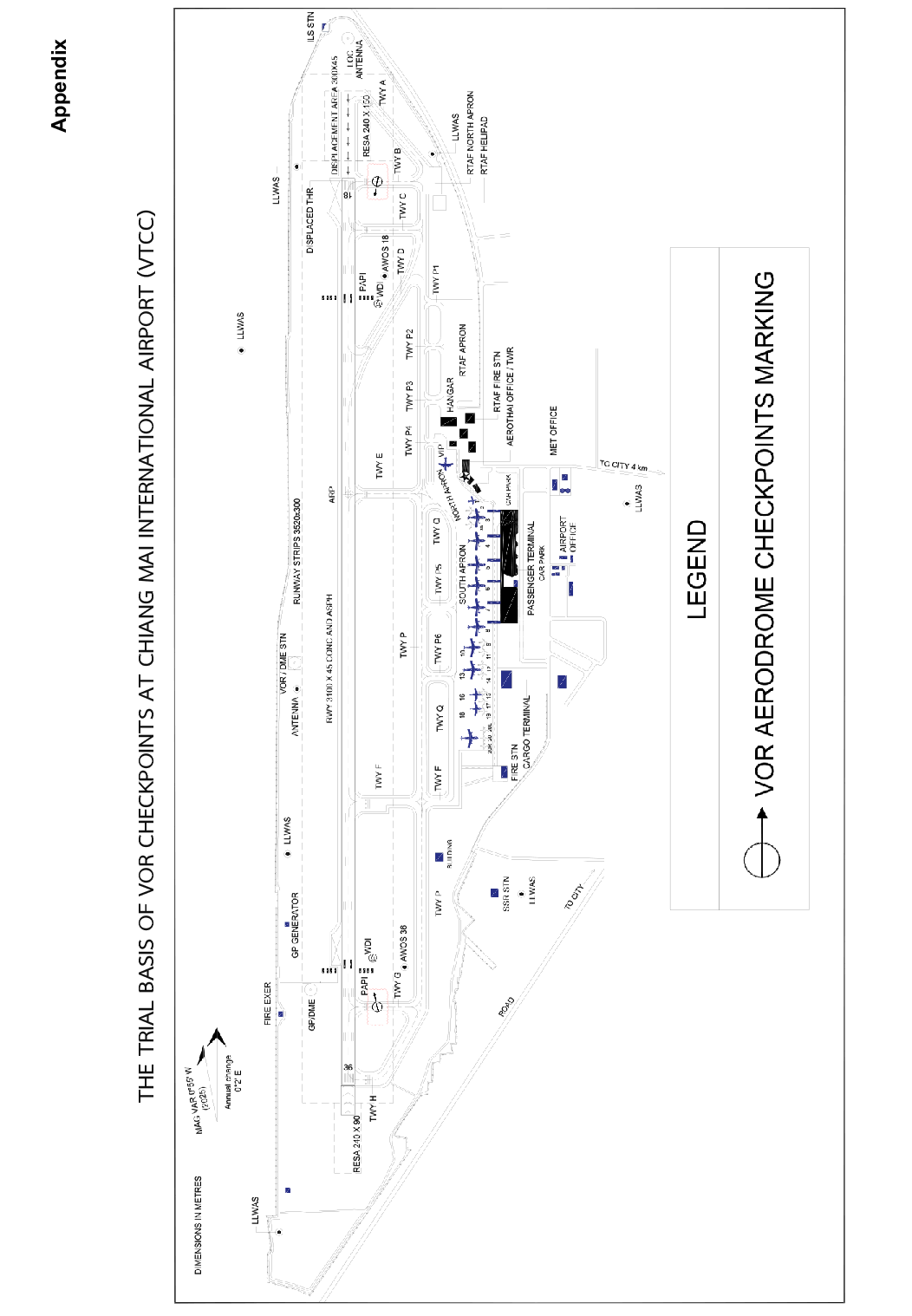

2.2 The area layout is shown in appendix.

3 CONTACT

For further information contact via the following: Unit: Aeronautical Information service Sub-Division of Chiang Mai International AirportTel: +665 392 2000 ext.23061E-mail: [email protected]

4 VALIDITY

This AIP Supplement superseded NOTAM A2943/24 (C4263/24) and will remain current until its contents have been incorporated in AIP-Thailand. Any changes of this AIP Supplement will be notified through NOTAM.
