AIP Supplement for Thailand

AIRAC AIP SUP

A 27/25

Effective from 10 JUL 2025

to UFN

Published on 29 MAY 2025

PENETRATING THE OBSTACLE LIMITATION SURFACE
OF PHUKET INTERNATIONAL AIRPORT (VTSP)

1 INTRODUCTION

With effect from 10 July 2025 at 0100 UTC, this AIRAC AIP Supplement is to inform pilots and aircraft operators concerning about the obstacle exceeded height the obstacle limitation surface at Phuket International Airport.

2 OBSTACLES DETAILS

2.1 The Aerodrome Obstacles information details as follow:

Obstacles	Coordinates	Location (Approximately Distance)	Elevation(AMSL)
Pole(Approach Surface)	08 06 47.70 N 098 19 59.55 E	282 M BEFORE THR RWY 27 AND172 M LEFT SIDE FM RCL	110.86 FT(33.79 M)
Pole(Approach Surface)	08 06 37.76 N 098 18 08.53 E	132 M BEFORE THR RWY 09 AND152 M RIGHT SIDE FM RCL	42.88 FT(13.07 M)
DVOR/DME Building(Transitional Surface)	08 06 50.24 N 098 18 25.18 E	433 M BEYOND THR RWY 09182 M LEFT SIDE FM RCL	52.62 FT(16.04 M)
Mast (Transitional Surface)	08 06 50.50 N 098 18 28.27 E	527 M BEYOND THR RWY 09181 M LEFT SIDE FM RCL	63.75 FT(19.43 M)
Fire Station Building Sign(Transitional Surface)	08 06 51.55 N 098 18 35.96 E	763 M BEYOND THR RWY 09 AND 191 M LEFT SIDE FM RCL	48.88 FT(14.90 M)
Tower(Transitional Surface)	08 06 38.10 N 098 19 23.37 E	870 M BEYOND THR RWY 27357 M LEFT SIDE FM RCL	364.73 FT(111.17 M)
Jet Blast Deflector 1(Transitional Surface)	08 06 37.40 N 098 18 09.67 E	91 M BEFORE THR RWY 09 AND 164 M RIGHT SIDE FM RCL	36.12 FT(11.01 M)
Jet Blast Deflector 2(Transitional Surface)	08 06 37.05 N 098 18 09.53 E	99 M BEFORE THR RWY 09 AND 176 M RIGHT SIDE FM RCL	36.12 FT(11.01 M)

2.2 All obstacles will be lighted at night.

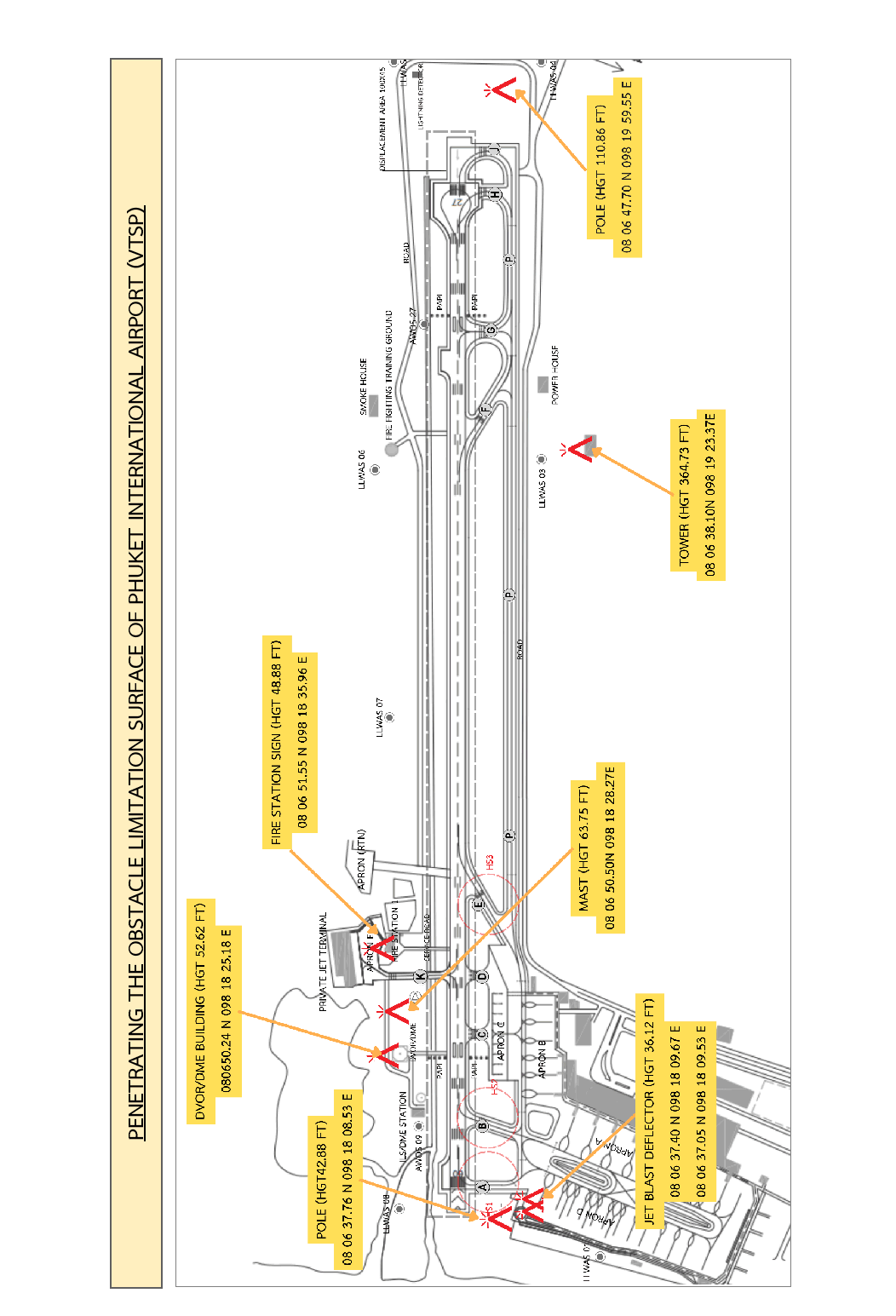

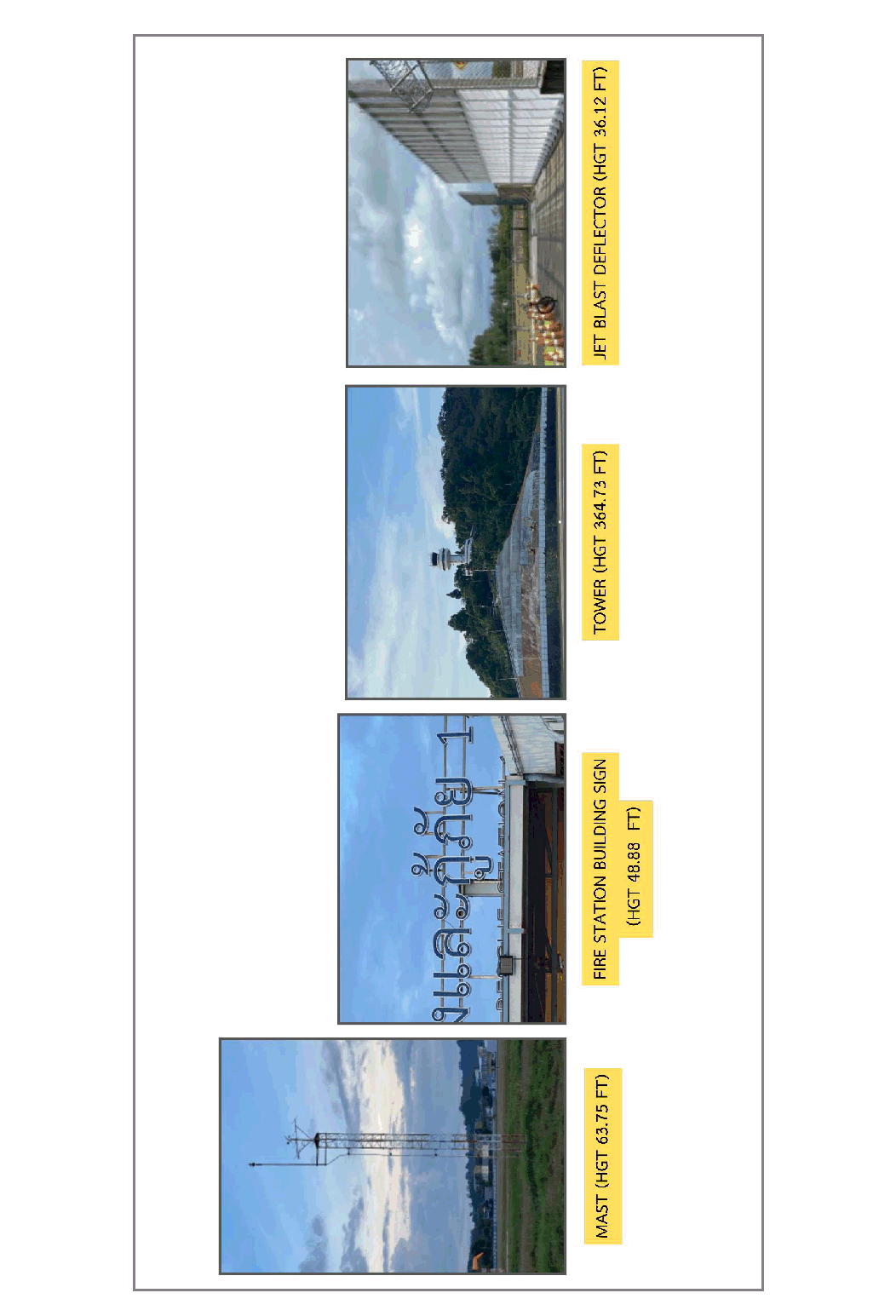

2.3 The location layout is shown in Appendix 1 and the pictures are shown in Appendix 2 and 3.

3 CONTACT

For further information contact via the following:

Unit: Aeronautical Information Services, Phuket International Airport.

Tel: + 667 635 1874

Fax: + 667 635 2347

E-mail: [email protected]
