ContactAeronautical Information Management Department Tel: +662 568 8831 Fax: +662 576 1903 AFS: VTBAYOYX Email: [email protected] Email: [email protected] | AIP Supplement for Thailand | AIP SUP A 24/25 Effective from 09 JUN 2025 to 18 JUN 2025 Published on 29 MAY 2025 |

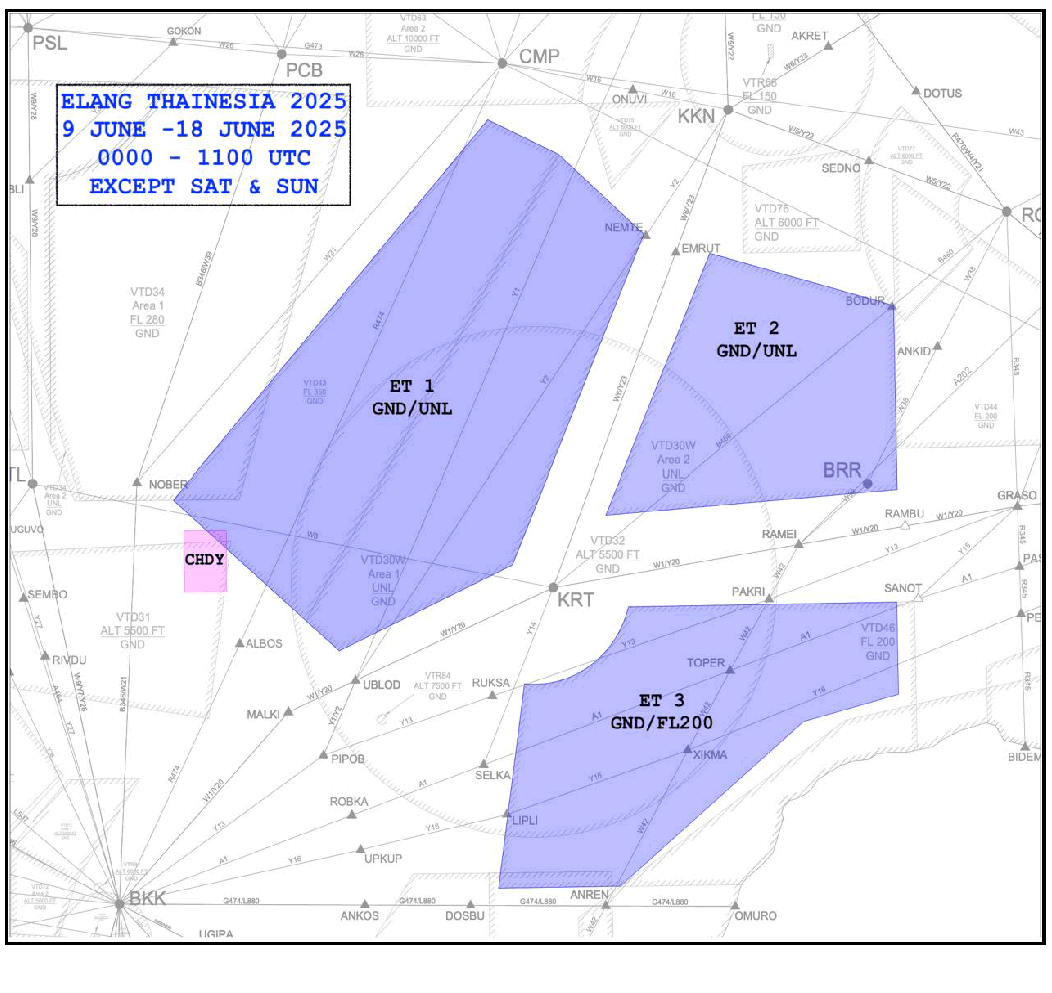

Military exercise named ELANG THAINESIA 2025 will take place within the Bangkok FIR from 9 - 18 June 2025 (except Saturday and Sunday) between 0000 - 1100 UTC details are as follows.
| Area (boundary) | Vertical limits | Period of activity(Except Saturday and Sunday) | |
|---|---|---|---|
| 2.1 |
ET - 1 The area bounded by a line joining the following points: 162705.30N 1015547.40E, 162005.40N 1021047.30E, | GND - UNL | 9 - 18 June 2025Between0000 - 1100 UTC |
| 2.2 |
ET - 2 The area bounded by a line joining the following points: 160005.50N 1024247.10E, 154905.60N 1032146.80E, | GND - UNL | 9 - 18 June 2025Between0000 - 1100 UTC |
| 2.3 |
ET - 3 The area bounded by a line joining the following points: 145059.91N 1022418.96E, 145060.00N 1032115.00E, | GND - FL200 | 9 - 18 June 2025Between0000 - 1100 UTC |
| ATSRoutes | Closed Portions | Closed Levels | Remark |
|---|---|---|---|
| B460 | BODUR - KRT | MFA - FL460 | - |
| R474 | ALBOS - CMP | MFA - FL460 | - |
| Y1 | TERCO - UBLOD | MFA - FL460 | - |
| Y2 | KKN - UBLOD | MFA - FL460 | - |
| A1 | SELKA - SANOT | MFA - FL200 | ACFT DEP from VTBD, VTBS shall cross 70 NM FM BKK FL210 or above. |
To improve safety, airspace capacity, and flight efficiency during the ELANG THAINESIA 2025 exercise, temporary measures will be established in the affected airspace to avoid military activity. Pilots must follow the clearance restrictions and flight planning procedures outlined in ENR 1.10 FLIGHT PLANNING and related NOTAMs.
In case of civil and non-exercise military aircraft experiencing an emergency that makes it necessary to enter an active exercise area should immediately notify one of the following agencies:
a. Bangkok Area Control Centre (BACC) sector concerned.
b. If unable to contact BACC an aircraft should contact OSCAR Control.
c. Frequency of these agencies are as follows:
| Units | Frequency | |
|---|---|---|
| BACC | SECTOR 1N | 124.5 MHz or 256.3 MHz |
| SECTOR 2N | 126.5 MHZ | |
| SECTOR 3N | 128.1 MHz or 263.8 MHz | |
| SECTOR 5N | 132.1 MHz or 268.5 MHz | |
| SECTOR 6N | 133.1 MHz or 285.3 MHz | |
| OSCAR | 127.0 MHz or 331.3 MHz | |
| BANGKOK APPROACH | APP North 133.4 MHzAPP East 119.1 MHz, 122.35 MHz or 262.5 MHz | |
| BANGKOK TOWER (VTBD) | 118.1 MHz or 236.6 MHz | |
| KHORAT APPROACH | 129.75 MHz or 349.0 MHz | |
| KHORAT TOWER | 122.2 MHz or 240.5 MHz | |
| NAKHON RATCHASIMA APPROACH | 123.6 MHz | |
| NAKHON RATCHASIMA TOWER | 119.8 MHz or 236.6 MHz | |
| KHON KAEN APPROACH | 123.4 MHz or 240.0 MHz | |
| KHON KAEN TOWER | 122.25 MHz or 236.6 MHz | |
| UDON APPROACH | 126.2 MHz or 265.9 MHz | |
| UDON TOWER | 122.5 MHz or 355.4 MHz | |
| UBON APPROACH | 123.5 MHz or 257.8 MHz | |
| UBON TOWER | 119.9 MHz or 274.5 MHz | |
| TAKHLI APPROACH | 124.0 MHz or 325.0 MHz | |
| TAKHLI TOWER | 133.25 MHz or 241.5 MHz | |
| KHOK KATHIAM TOWER | 122.6 MHz or 238.6 MHz | |
ELANG THAINESIA 2025 aircraft experiencing an emergency and unable to contact their appropriate control agencies will contact OSCAR on Frequency 331.3 MHz, 127.0 MHz or guard Frequency 243.0 MHz and 121.5 MHz
| Units | Contact Details |
|---|---|
| POC: ELANG THAINESIA 2025Gp.Capt.Sorachai Chiengtong | Phone: +668 4597 6215E-mail: [email protected] |
| Bangkok Air Traffic Flow Management Unit For ATFM Measures during Military Exercise |
Phone: +662 287 8024E-mail: [email protected] Website: http://atfm.aerothai.aeroAFTN: VTBBZDZX |
|
Airspace Management Cell (Thailand) For AUP/UUP |
Phone: +662 307 2132Mobile: +666 1402 4966E-mail: [email protected] Website: www.thaicmac.aerothai.aero |
This AIP Supplement will remain current until 18 June 2025 at 1100 UTC. Any changes to this supplement will be notified through NOTAM.
