AIP Supplement for Thailand

AIP SUP

A 15/25

Effective from 17 MAR 2025

to 28 MAR 2025

Published on 06 MAR 2025

  REVISED JOINT MILITARY AIR EXERCISE IN BANGKOK FIR "COPE TIGER 2025"

1  INTRODUCTION

Joint military exercise named COPE TIGER 2025 will take place within the Bangkok FIR from 17 - 28 March 2025 between 0000 - 1100 UTC (Except Saturday and Sunday), details are as follows:

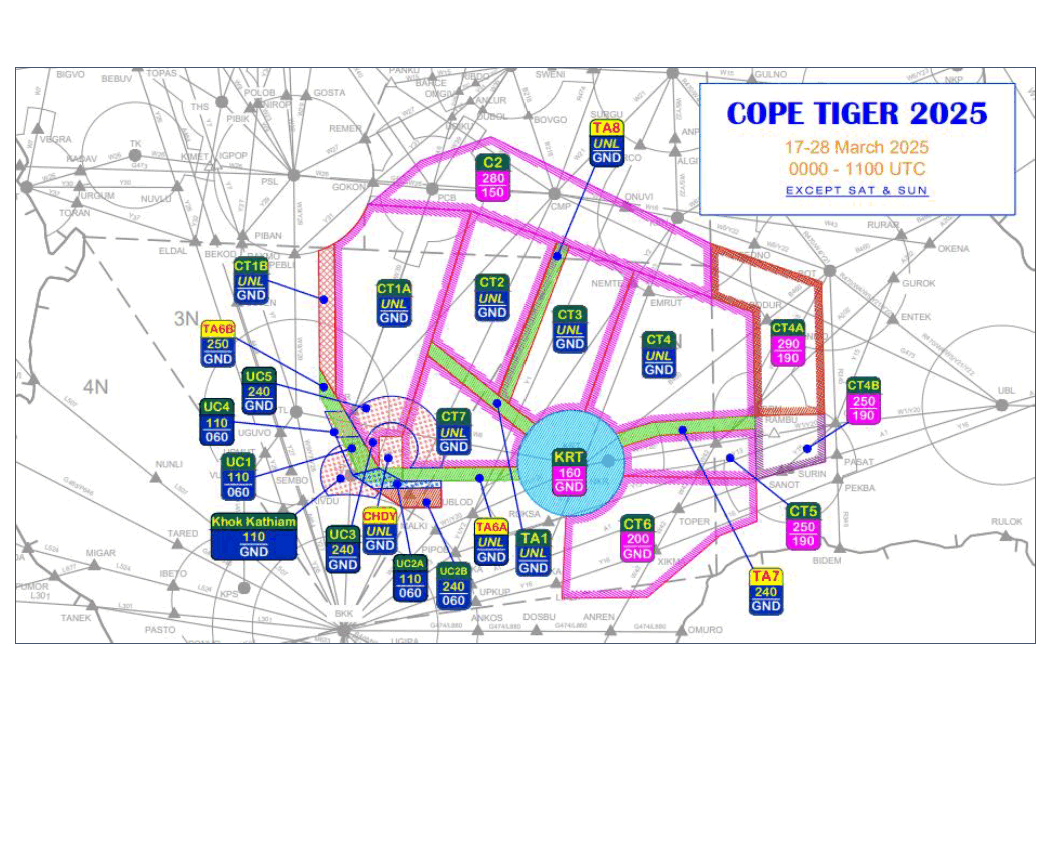

2  EXERCISE AREAS

Area (boundary)Vertical limits

Period of activity

(Except Saturday and Sunday)

2.1

Charlie 1A (CT-1A)

145500N1005000E,152232N1003321E,
162010.81N1003311E then along a 30 NM arc
counter clockwise from the Phitsanulok (PSL) DVOR/DME
(164613.34N1001728.70E) to 163454.04N1004626.50E,
163200N1012700E, 150700N1005900E, 150700N1005000E
then back to the point of origin.

GND - UNL

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

2.2

Charlie 1B (CT-1B)

152232N1003321E, 153300N1002700E,
161731.73N1002700E then along a 30 NM arc
counter clockwise from Phitsanulok (PSL) DVOR/DME
(164613.34N1001728.70E) to 162010.81N1003311E
then back to the point of origin.

GND - UNL



17 - 28 Mar 2025,
between
0000 - 1100 UTC.

2.3

Charlie 2 (CT-2)

163200N1012700E,162000N1020000E,
152220N1013630E, 154255.80N1011046.48E
then back to the point of origin.



GND - UNL

17 - 28 Mar 2025,
between
0000 - 1100 UTC.
2.4

Charlie 3 (CT-3)

162000N1020000E, 160840N1023000E,
151528.40N1020944.39E then along a 20 NM arc
counter clockwise from the Khorat (KRT) TACAN (145606.00N1020421.80E) to 151100.86N1015032.74E,
152220N1013630E then back to the point of origin

GND - UNL

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

2.5

Charlie 4 (CT-4)

160840N1023000E, 155200N1031600E,
151300N1031600E, 151100N1023600E,
150656.82N1022143.81E then along a 20 NM arc
counter clockwise from the Khorat (KRT) TACAN (145606.00N1020421.80E) to 151528.40N1020944.39E
then back to the point of origin,

Excluding: Buri Ram Terminal Control Area (BRM TMA)
and A202 Buri Ram Approach on 125.55 MHz.

GND - UNL

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

2.6

Charlie 4A (CT-4A)

161821N1030000E, 160253N1034300E,
151300N1034300E, 151300N1031600E,
155200N1031600E, 155749.15N1030000E
then back to the point of origin.

FL190 - FL290

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

2.7

Charlie 4B (CT-4B)

151300N 1031600E, 151300N 1034300E,
145500N 1034300E, 144900N 1031600E
then back to the point of origin

FL190 - FL250

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

2.8

Charlie 5 (CT-5)

150201.53N1022404.93E, 150604.64N1023820.82E,
150757.65N1031600E,144900N1031600E, 145100.40N1022419.09E then along a 20 NM arc
counter clockwise from the Khorat (KRT) TACAN (145606.00N1020421.80E) to the point of origin.

FL190 - FL250

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

2.9

Charlie 6 (CT-6)

143609.97N1020159.36E then along a 20 NM arc
counter clockwise from the Khorat (KRT) TACAN
(145606.00N 1020421.80E) to 145100.40N1022419.09E, 144900N1031600E,143300N1031600E, 142800N1030145E, 140500N1023300E,140500N1020000E
then back to the point of origin.

GND - FL200

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

2.10

Charlie 7 (CT-7)

153747.85N1010905.24E, 150707.08N1014706.27E
then along a 20 NM arc counter clockwise from the Khorat (KRT) TACAN (145606.00N1020421.80E) to 145500.02N1014345.26E, 145500N1005900E, 150700N1005900E then back to the point of origin.

GND - UNL

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

2.11

Command and Control Area (C2 Area)

170000N1013500E, 161821N1030000E, 155749.15N1030000E, 163200N1012700E, 163452.07N1004657.33E 165117.18N1010719.38E then along a 30 NM arc counter clockwise from the Phitsanulok (PSL) DVOR/DME (164613.34N 1001728.70E) to 164524N1004847E then back to the point of origin.

FL150 - FL280

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

2.12

Khok kathiam Area

An area circle by 12 NM radius from Lop Buri (LOB) TACAN (145234.33N1003935.49E).
Excluding Bangkok TMA, UC-1, UC-2A and UC-2B.

GND - 11,000 FT

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

3  CORRIDORS

Area (boundary)Vertical limits

Period of activity
(Except Saturday and Sunday)

3.1KHORAT RECOVERY/DEPARTURE CORRIDOR

GND - FL160

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

TRANSITION AREA (TA)

A circle of 20 NM radius centred on Khorat (KRT)
TACAN (145606.00N1020421.80E).

3.2KHORAT RECOVERY/DEPARTURE CORRIDOR

GND - UNL

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

TRANSITION AREA 1 (TA-1)

A 5 NM wide corridor bounded by a line joining the
following points: 150707.08N1014706.27E then along
a 20 NM arc clockwise from the Khorat (KRT) TACAN
(145606.00N1020421.80E) to151100.86N1015032.74E,
154255.80N1011046.48E, 153747.85N1010905.24E
then back to the point of origin.

The primary purpose of the recovery corridor is to
provide a safe departure/recovery route for aircraft
transiting to and from areas CT-1, CT-2, CT-3, and
CT-7. When packages are assigned CT-1, 2, 3 and 7
simultaneously the airspace includes the recovery
corridor.

3.3

TRANSITION AREA 6A (TA-6A)

A 5 NM wide corridor bounded by a line joining the
following points: 145500N1005900E,
145500.02N1014345.26E then along a 20 NM arc
counter clockwise from the Khorat (KRT)TACAN
(145606.00N1020421.80E) to
145000N1014442.22E,145000N1011400E
then back to the point of origin.

GND - UNL

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

3.4TRANSITION AREA 6B (TA-6B)A 5 NM wide corridor bounded by a line joining the
following points: 145000N1005900E,
145000N1004333.39E,152313N1002656E,
153300N1002700E,145500N1005000E,
145500N1005900E then back to point of origin.
GND - FL250

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

3.5

TRANSITION AREA 7 (TA-7)

A 5 NM wide corridor bounded by a line joining the
following points: 150656.82N1022143.81E,
151100N1023600E, 151300N1031600E,
150757.65N1031600E, 150604.64N1023820.82E,
150201.53N1022404.93E then along a 20 NM arc
counter clockwise from the Khorat (KRT) TACAN
(145606.00N1020421.80E) back to the point of origin.
Excluding Buri Ram Terminal Control Area (BRM
TMA).

GND - FL240

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

3.6

TRANSITION AREA 8 (TA-8)

A 5 NM wide corridor bounded by a line joining the
following points: 152220N1013630E,
162000N1020000E, 161810.65N1020450.37E,
151857.02N1014041.16E then back to the point of
origin.
Departure: To be assigned by CAMEL
Recovery: To be assigned by CAMEL

Note: This Corridor will only be activated when aircraft request to enter/exit C2 Area while CT-3 is being used.

GND - UNL

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

4  UAV CORRIDORS

Area (boundary)

Vertical limits

Period of activity
(Except Saturday and Sunday)

4.1

UAV CORRIDOR 1 (UC-1)

An area bounded by a line joining points:
145234N1003935E, 150700N1003319E,
150700N1004245.16E, 145500N1005000E
then back to the point of origin.

6,000 FT - 11,000 FT

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

4.2

UAV CORRIDOR 2A (UC-2A)

An area bounded by a line joining points:
145500N 1005000E, 145000N 1005900E,
145000N 1011400E, 144724N 1011400E,
144724N 1004743E, 145234N 1003935E,
then back to the point of origin.

6,000 FT - 11,000 FT

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

4.3

UAV CORRIDOR 2B (UC-2B)

An area bounded by a line joining points:
144724N1004743E, 144724N1011400E,
144000N1011400E, 144000N1005900E,
then back to the point of origin.

6,000 FT - FL150

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

4.4

UAV CORRIDOR 3 (UC-3)
UAV Operating limits: Alt 6,000 ft – FL240
(to be deconflicted with LFE)

An area bounded by a line joining the following points:
145500N1005000E, 145500N1010200.78E
then along a 10 NM arc counter clockwise from
the Chandy Tower (150209.77N1005445.88E)
to 150359.72N1004434.13E then back to the point
of origin.

GND - FL240

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

4.5

UAV CORRIDOR 4 (UC-4)

An area bounded by a line joining points:
150700N1003319E, 151640N1002900E,
151640N1003658.16E, 150700N1004245E,
then back to the point of origin.

6,000 FT - 11,000FT

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

4.6

UAV CORRIDOR 5 (UC-5)
UAV Operating limits: Alt 6,000 ft – FL240
(to be deconflicted with LFE)

An area bounded by a line joining the following points:
150357N1004435E, 151419.2N1003822.35E then along a 20 NM arc clockwise from the Chandy Tower (150209.77N1005445.88E),to 145500N1011414E, 145500.28N1010200.50E then along a 10 NM arc counter clockwise from Chandy Tower (150209.77N1005445.88E), then back to the point of origin.

GND - FL240

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

5  CHANDY RANGE

Area (boundary)Vertical limits

Period of activity
(Except Saturday and Sunday)



Chandy Range is located on KRT R-274/68 DME. Exact coordinates are as follows:
1507N10059E, 1507N10050E,
1455N10050E, 1455N10059E to point of origin.

The northern section of Chandy is the conventional range for practice ordnance delivery and the southern section is the tactical range for live ordnance delivery (During Cope Tiger 2025, No practice or live ordinance will be delivered on both ranges). Fighter aircraft entering Chandy airspace must be under control by respective control agency as per daily Flying Schedule or contact Chandy Tower on 285.4 MHz/134.75 MHz.

GND - UNL

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

6  VICTOR BLUE / AGGRESSOR AREA (DANGER FOR AIRLINE OPERATION)

Area (boundary)Vertical limits

Period of activity
(Except Saturday and Sunday)



A restricted area which lies between the Bangkok (BKK)
VOR/DME (135336.80N1003546.30E) 005°and 050°
radials from 40NM to 80NM arc.

Air operations in the vicinity of Victor Blue are prohibited
when active (Chandy Range, CT-7, and CT-1 South of
1520N).

SFC - UNL

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

7  BURIRAM TMA

Area (boundary)Vertical limits

Period of activity
(Except Saturday and Sunday)

 An area bounded by a line joining the following points:
152840N1033030E clockwise along a 20 NM arc from
Buri Ram (BRM) DVOR/DME (151422.43N1031531.59E)
to 1501N10330E, 1453N10240E then along a 35NM arc
counterclockwise around the Korat (KRT) TACAN
(145606.00N 1020421.80E) to 151130N10237E,
151224N1030024E then along a 15 NM arc clockwise
around the BRM DVOR/DME to 152918N1031751E,
154407N1032620E, then along a 30NM arc
counterclockwise around the Roi Et (ROT) DVOR/DME (160700.59N1034619.45E) to 153849N1033630E,
then back to point of origin.
2,000 FT – FL240

17 - 28 Mar 2025,
between
0000 - 1100 UTC.

8  LIST OF CLOSED ATS ROUTES

ATS
Routes

Closed PortionsClosed LevelsRemark
B346BKK - PCBMFA - FL460Route portion within C2 area levels closed between FL150-280.
W21BKK- CMPMFA - FL460Route portion within C2 area levels closed between FL150-280.
W39NOBER - PCBMFA - FL460Route portion within C2 area levels closed between FL150-280.
R474BKK - CMP MFA - FL460Route portion within C2 area levels closed between FL150-280.
Y1TERCO - UBLODMFA - FL460Route portion within C2 area levels closed between FL150-280.
Y2KKN - UBLODMFA - FL460Route portion within C2 area levels closed between FL150-280.
W6/Y23KRT - KKNMFA - FL460-
B460KRT - ROTMFA - FL460-
W38RAMEI - ROTFL190 - FL290

Aircraft operating on W38 shall be expect radar vectored by ATC unit to avoid CT4.

A202RAMEI- GUROKFL190 - FL290

Aircraft operating on A202 shall be expect radar vectored by ATC unit to avoid CT4.

W1/Y20GRASO - UBLODMFA - FL160
FL190 - FL250
Flights intended to operate into TA area are subjected to prior
coordination with “Live Fly Cell”.
Y13RUKSA - GRASOMFA - FL250-
Y15SANOT - GRASOFL190 - FL250-
A1SELKA - SANOTMFA - FL200Aircraft departure from VTBD, and VTBS shall cross 70 DME from BKK DVOR/DME at FL210 or above and expect radar vectored by ATC unit to avoid CT4B.
Y16LIPLI - PEKBAMFA - FL200RNAV equipped Aircraft Depart from VTBD, and VTBS on Y16 shall cross 70 DME from BKK DVOR/DME at FL210 or above.
G473UBL - PSLFL150 - FL290-
W8TL - KRTMFA - FL460-
W16UTTAR - KKNFL150 – FL280-
W26PCB - GOKONFL150 - FL280-
W40PCB - 20 NM
Northwest of PCB
FL150 – FL280-
W42ANREN - RAMEIMFA – FL250-
W43CMP – 50 NM
East of CMP
FL150 – FL280-
B218BOVGO - CMP FL150 - FL280-

9  CLEARANCE RESTRICTIONS AND FLIGHT PLANNING PROCEDURES

For safety, en route capacity and flight efficiency enhancements, temporary routes will be established for utilization during COPE TIGER 2025’s actives period in the affected airspace and avoiding COPE TIGER 2025 activities Clearance Restrictions and Flight Planning Procedures will be as follows

9.1  For RNAV capable aircraft

9.1.1 Departure Overfly flights from VTBD/VTBS/BKK to the following Destination airports shall be file flight plan as follows:

Departure/OverflyRoutingDestination/Overfly
VTBD/VTBS/BKKY26VTCC
Y27 IKISU W22VTCT
Y26 ELDAL Y32 KIMET DCT THSVTPO
Y26 BEBUV Y33 IBIRI DCT LPNVTCL
Y27 POLOB Y34 IDKOR DCT PAEVTCP
Y27 IBUBU W25VTCN
Y27 PIBAN Y29VTPP
Y27 PIBAN Y29 PSL W27VTUL
Y27 PIBAN Y29 PSL W26 VTPB
Y27 PIBAN Y29 PSL W27 LOY W15VTUD
Y27 IBUBU W25 NAN R215 TOMIPTOMIP/LPB
Y27 PIBAN Y29 PSL W27 LOY B218VLVT/VTN
A1 SANOT Y15 GRASO R345 ROT Y22 (for FL210 or above) VTUK
A1 SANOT Y15 GUROK DCT SKN (for FL210 or above)VTUI
A1 SANOT Y15 GUROK DCT NKP (for FL210 or above)VTUW
A1 SANOT Y15 GRASO R345 (for FL210 or above)VTUV
A1 SANOT Y15 GRASO DCT BRM (for FL210 or above)
or Y20 RAMBU DCT BRM (for FL170)
VTUO
A1 (for FL210 or above) or Y20 (for FL170) VTUU/UBL
Y16 (for FL210 or above) BUTRA
A1 SANOT Y15 GUROK A202 (for FL210 or above) SAV

Remark: All aircraft concerned are to expect radar vectoring or ATC Instruction to suit the flow of traffic and/or avoid affected airspace.

9.1.2 Arrival Overfly flights to VTBD/VTBS/BKK from the following Departure airports shall be file flight plan as follows

Departure/OverflyRoutingDestination/Overfly
VTCCY7BKK
Y7 TL DCT NAKONVTBD
Y7 TL DCT NORTAVTBS
W15 UDN Y22VTUK
VTCTW29 DUBEN Y28 BKK
W29 DUBEN Y28 TL DCT NAKON VTBD
W29 DUBEN Y28 TL DCT NORTAVTBS
VTPOTHS DCT PEBLI Y28 BKK
THS DCT PEBLI Y28 TL DCT NAKON VTBD
THS DCT PEBLI Y28 TL DCT NORTAVTBS
VTCLW23 PSL Y28 BKK
W23 PSL Y28 TL DCT NAKON VTBD
W23 PSL Y28 TL DCT NORTAVTBS
VTCPW22 PSL Y28BKK
W22 PSL Y28 TL DCT NAKONVTBD
W22 PSL Y28 TL DCT NORTAVTBS
VTCNW29 PSL Y28BKK
W29 PSL Y28 TL DCT NAKONVTBD
W29 PSL Y28 TL DCT NORTAVTBS
VTPPY28BKK
Y28 TL DCT NAKONVTBD
Y28 TL DCT NORTAVTBS
VTULY31 PEBLI Y28BKK
Y31 PEBLI Y28 TL DCT NAKON VTBD
Y31 PEBLI Y28 TL DCT NORTAVTBS
VTPBW26 PSL Y28BKK
W26 PSL Y28 TL DCT NAKONVTBD
W26 PSL Y28 TL DCT NORTAVTBS
YAKUAB346 UDIKU Y31 PEBLI Y28 BKK
B346 UDIKU Y31 PEBLI Y28 TL DCT NAKONVTBD
B346 UDIKU Y31 PEBLI Y28 TL DCT NORTA VTBS
VLVT/VTNB218 LOY Y31 PEBLI Y28BKK
B218 LOY Y31 PEBLI Y28 TL DCT NAKONVTBD
B218 LOY Y31 PEBLI Y28 TL DCT NORTAVTBS
VTUDW15 LOY Y31 PEBLI Y28BKK
W15 LOY Y31 PEBLI Y28 TL DCT NAKONVTBD
W15 LOY Y31 PEBLI Y28 TL DCT NORTAVTBS
VTUKY22 ROT R345 GRASO Y20 (for FL180 and FL260 or above)BKK
Y22 ROT R345 GRASO Y20 UBLOD DCT ENDUU
(for FL180 and FL260 or above)
VTBD
Y22 ROT R345 GRASO Y13 RUKSA DCT EASTE
(for FL260 or above) or
Y22 ROT R345 GRASO Y20 UBLOD DCT EASTE (for FL180)
VTBS
Y22 UDN W15 VTCC
VTUISKN DCT ROT R345 GRASO Y20
(for FL180 and FL260 or above)
BKK
SKN DCT ROT R345 GRASO Y20 UBLOD DCT ENDUU
(for FL180 and FL260 or above)
VTBD
SKN DCT ROT R345 GRASO Y13 RUKSA DCT EASTE
(for FL260 or above) or
SKN DCT ROT R345 GRASO Y20 UBLOD DCT EASTE (for FL180)
VTBS
VTUWY23 SKN DCT ROT R345 GRASO Y20
(for FL180 and FL260 or above)
BKK
Y23 SKN DCT ROT R345 GRASO Y20 UBLOD DCT ENDUU
(for FL180 and FL260 or above)
VTBD
Y23 SKN DCT ROT R345 GRASO Y13 RUKSA DCT EASTE
(for FL260 or above) or
Y23 SKN DCT ROT R345 GRASO Y20 UBLOD DCT EASTE
(for FL180)
VTBS
VTUVR345 GRASO Y20 (for FL180 and FL260 or above)BKK
R345 GRASO Y20 UBLOD DCT ENDUU
(for FL180 and FL260 or above)
VTBD
R345 GRASO Y13 RUKSA DCT EASTE (for FL260 or above) or
R345 GRASO Y20 UBLOD DCT EASTE (for FL180)
VTBS
VTUOBRM DCT GRASO Y20 (for FL260 or above) or
BRM DCT RAMBU Y20 (for FL180)
BKK
BRM DCT GRASO Y20 UBLOD DCT ENDUU (for FL260 or above) or
BRM DCT RAMBU Y20 UBLOD DCT ENDUU (for FL180)
VTBD
BRM DCT GRASO Y13 RUKSA DCT EASTE (for FL260 or above) or
BRM DCT RAMBU Y20 UBLOD DCT EASTE (for FL180)
VTBS
VTUU/UBLY20 (for FL180 and FL260 or above)BKK
Y20 UBLOD DCT ENDUU (for FL180 and FL260 or above)VTBD
Y20 GRASO Y13 RUKSA DCT EASTE (for FL260 or above) or
Y20 UBLOD DCT EASTE (for FL180)
VTBS
BUTRAA1 UBL Y20 (for FL180 and FL260 or above)BKK
A1 UBL Y20 UBLOD DCT ENDUU (for FL180 and FL260 or above)VTBD
A1 UBL Y20 GRASO Y13 RUKSA DCT EASTE (for FL260 or above) or
A1 UBL Y20 UBLOD DCT EASTE (for FL180)
VTBS
SAVA202 GUROK DCT RAMBU Y20 (for FL300 or above)BKK
A202 GUROK DCT RAMBU Y20 UBLOD DCT ENDUU
(for FL300 or above)
VTBD
A202 GUROK DCT RAMBU DCT PAKRI Y13 RUKSA DCT EASTE
(for FL300 or above)
VTBS

Remark: All aircraft concerned are to expect radar vectoring to suit the flow of traffic and/or avoid affected airspace.

9.2  For NON-RNAV capable aircraft

9.2.1 Departure/Overfly flights from VTBD/VTBS/BKK to the following Destination shall be file flight plan as follows:

Departure/OverflyRoutingDestination/Overfly
VTBD/VTBS/BKKA464VTCC
A464 BEKOD DCT KIMET DCT THS W25 PAE W22 VTCT
A464 BEKOD DCT KIMET DCT THSVTPO
A464 TOPAS DCT LPNVTCL
A464 BEKOD DCT KIMET DCT THS W25 VTCP/VTCN
A464 BEKOD DCT PSLVTPP
A464 BEKOD DCT PSL W27VTUL
A464 BEKOD DCT PSL W26VTPB
A464 BEKOD DCT PSL W27 LOY W15VTUD
A464 BEKOD DCT THS W25 NAN R215VLLB/LPB
A464 BEKOD DCT PSL W27 LOY B218VLVT/VTN
A1 SANOT DCT GRASO R345 ROT W5 (for FL210 or above) VTUK
A1 SANOT DCT GUROK DCT SKN (for FL210 or above) VTUI
A1 SANOT DCT GUROK DCT NKP (for FL210 or above) VTUW
A1 SANOT DCT GRASO R345 (for FL210 or above) VTUV
A1 SANOT DCT BRM (for FL210 or above) or
W1 RAMBU DCT BRM (for FL170)
VTUO
A1 (for FL210 or above) or
W1(for FL170)
VTUU/UBL
A1 (for FL210 or above) BUTRA
A1 SANOT DCT GRASO DCT GUROK A202 (for FL210 or above)SAV

Remark: All aircraft concerned are to expect radar vectoring or ATC Instruction to suit the flow of traffic and/or avoid affected airspace.

9.2.2 Arrival/Overfly flights to VTBD/VTBS/BKK from the following Departure airports shall be file flight plan as follows:

Departure/OverflyRoutingDestination/Overfly
VTCCW9BKK
W9 TL DCT NAKONVTUD
W9 TL DCT NORTAVTBS
W15 UDN W5VTUK
VTCTW22 PSL W9BKK
W22 PSL W9 TL DCT NAKONVTBD
W22 PSL W9 TL DCT NORTAVTBS
VTPOTHS DCT PSL W9BKK
THS DCT PSL W9 TL DCT NAKONVTBD
THS DCT PSL W9 TL DCT NORTAVTBS
VTCLW13 PAE W22 PSL W9BKK
W13 PAE W22 PSL W9 TL DCT NAKONVTBD
W13 PAE W22 PSL W9 TL DCT NORTAVTBS
VTCPW22 PSL W9BKK
W22 PSL W9 TL DCT NAKONVTBD
W22 PSL W9 TL DCT NORTAVTBS
VTCNW29 PSL W9BKK
W29 PSL W9 TL DCT NAKONVTBD
W29 PSL W9 TL DCT NORTAVTBS
VTPPW9BKK
W9 TL DCT NAKONVTBD
W9 TL DCT NORTAVTBS
VTULW27 PSL W9BKK
W27 PSL W9 TL DCT NAKONVTBD
W27 PSL W9 TL DCT NORTAVTBS
VTPBW26 PSL W9BKK
W26 PSL W9 TL DCT NAKONVTBD
W26 PSL W9 TL DCT NORTAVTBS
YAKUAB346 UDIKU DCT PEBLI W9BKK
B346 UDIKU DCT PEBLI W9 TL DCT NAKONVTBD
B346 UDIKU DCT PEBLI W9 TL DCT NORTAVTBS
VLVT/VTNB218 LOY W27 PSL W9BKK
B218 LOY W27 PSL W9 TL DCT NAKON VTBD
B218 LOY W27 PSL W9 TL DCT NORTA VTBS
VTUDW15 LOY W27 PSL W9BKK
W15 LOY W27 PSL W9 TL DCT NAKONVTBD
W15 LOY W27 PSL W9 TL DCT NORTA VTBS
VTUKW5 ROT R345 GRASO W1
(for FL180 and FL260 or above)
BKK
W5 ROT R345 GRASO W1 UBLOD DCT ENDUU
(for FL180 and FL260 or above)
VTBD
W5 ROT R345 GRASO W1 UBLOD DCT EASTE
(for FL180 and FL260 or above)
VTBS
W5 UDN W15VTCC
VTUISKN DCT ROT R345 GRASO W1
(for FL180 and FL260 or above)
BKK
SKN DCT ROT R345 GRASO W1 UBLOD DCT ENDUU
(for FL180 and FL260 or above)
VTBD
SKN DCT ROT R345 GRASO W1 UBLOD DCT EASTE
(for FL180 and FL260 or above)
VTBS
VTUWW6 SKN DCT ROT R345 GRASO W1
(for FL180 and FL260 or above)
BKK
W6 SKN DCT ROT R345 GRASO W1 UBLOD DCT ENDUU
(for FL180 and FL260 or above)
VTBD
W6 SKN DCT ROT R345 GRASO W1 UBLOD DCT EASTE
(for FL180 and FL260 or above)
VTBS
VTUVR345 GRASO W1
(for FL180 and FL260 or above)
BKK
R345 GRASO W1 UBLOD DCT ENDUU
(for FL180 and FL260 or above)
VTBD
R345 GRASO W1 UBLOD DCT EASTE
(for FL180 and FL260 or above)
VTBS
VTUOBRM DCT GRASO W1 (for FL260 or above) or
BRM DCT RAMBU W1 (for FL180)
BKK
BRM DCT GRASO W1 UBLOD DCT ENDUU
(for FL260 or above) or
BRM DCT RAMBU W1 UBLOD DCT ENDUU (for FL180)
VTBD
BRM DCT GRASO W1 UBLOD DCT EASTE
(for FL260 or above) or
BRM DCT RAMBU W1 UBLOD DCT EASTE (for FL180)
VTBS
VTUU/UBLW1 (for FL180 and FL260 or above)BKK
W1 UBLOD DCT ENDUU (for FL180 and FL260 or above)VTBD
W1 UBLOD DCT EASTE (for FL180 and FL260 or above)VTBS
BUTRAA1 UBL W1 (for FL180 and FL260 or above)BKK
A1 UBL W1 UBLOD DCT ENDUU (for FL180 and FL260 or above)VTBD
A1 UBL W1 UBLOD DCT EASTE (for FL180 and FL260 or above)VTBS
SAVA202 GUROK DCT GRASO W1 (for FL180 and FL260 or above)BKK
A202 GUROK DCT GRASO W1 UBLOD DCT ENDUU
(for FL180 and FL260 or above)
VTBD
A202 GUROK DCT GRASO W1 UBLOD DCT EASTE
(for FL180 and FL260 or above)
VTBS

Remark: All aircraft concerned are to expect radar vectoring to suit the flow of traffic and/or avoid affected airspace.

10  ACTION IN EVENT OF EMERGENCY

In case of civil and non exercise military aircraft experiencing an emergency that make it necessary to enter an active exercise area should immediately notify one of the following agencies:

10.1 Bangkok Area Control Centre (BACC) sector concerned.
10.2 If unable to contact BACC an aircraft should contact OSCAR Control.
10.3 Frequency of these agencies are as follows:
UNITFrequency
BACCSECTOR 1N124.5 MHz or 256.3 MHz
SECTOR 2N126.5 MHz
SECTOR 3N128.1 MHz or 263.8 MHz
SECTOR 5N132.1 MHz or 268.5 MHz
SECTOR 6N133.1 MHz or 285.3 MHz
SECTOR 5S135.5 MHz or 285.5 MHz
OSCAR 127.0 MHz or 331.3 MHz
BANGKOK APPROACHAPP North 133.4 MHz
APP East 119.1 MHz, 122.35 MHz or 262.5 MHz
BANGKOK TOWER (VTBD)118.1 MHz or 236.6 MHz
U-TAPAO APPROACH119.7 MHz or 273.3 MHz (Primary)
134.5 MHz or 238.3 MHz (Secondary)
U-TAPAO TOWER118.3 MHz or 227.0 MHz
KHORAT APPROACH129.75 MHz or 349.0 MHz
KHORAT TOWER122.2 MHz or 240.5 MHz
NAKHON RATCHASIMA APPROACH123.6 MHz
NAKHON RATCHASIMA TOWER119.8 MHz or 236.6 MHz
KHON KAEN APPROACH123.4 MHz or 240.0 MHz
KHON KAEN TOWER122.25 MHz or 236.6 MHz
UDON APPROACH126.2 MHz or 265.9 MHz
UDON TOWER122.5 MHz or 355.4 MHz
UBON APPROACH123.5 MHz or 257.8 MHz
UBON TOWER119.9 MHz or 274.5 MHz
TAKHLI APPROACH124.0 MHz or 325.0 MHz
TAKHLI TOWER133.25 MHz or 241.5 MHz
KHOK KATHIAM TOWER122.6 MHz or 238.6 MHz

COPE TIGER 2025 aircraft experiencing an emergency and unable to contact their appropriate control agencies will contact OSCAR
on Frequency 331.3 MHz, 127.0 MHz or guard Frequency 243.0 MHz and 121.5 MHz

During exercise period all VTD areas those are overlapped by COPE TIGER 2025 areas will be not active. All aircraft not concerned
with COPE TIGER 2025 exercise want to fly through exercise areas shall contact " Live Fly Cell " on phone number +668 3012 6364
for approval before submitting flight plan.

11  AIR TRAFFIC FLOW MANAGEMENT DURING COPE TIGER 2025 PERIOD

In response to the capacity constraint caused by the Joint Military Air Exercise COPE TIGER 2025 the following ATFM measures will be
implemented:

11.1  Temporary Flight Level orientation scheme

Flights operating on the following routes are requested to use the following flight level orientation scheme:

11.1.1 Northbound flight from VTBD, VTBS, BKK via A464 (Portion BKK CMA), Y26, or Y27

and flight depart from VTPI, VTBL, VTBH, VTPP via W9. - Odd FL

11.1.2 Southbound flight to VTBD, VTBS, BKK via Y7, Y28 or W9 or other airways joining W9. - Even FL

11.2  Ground Delay Program GDP through the provision of Calculated Take Off Time CTOT

GDP will be implemented by Bangkok Air Traffic Flow Management Unit (BKK ATFMU) to balance the demand and capacity over congested area. CTOT will be issued to the flights entering BACC sector 3N and 6N to land at VTBD, VTBS and VTBU.

Specific timing of GDP periods each day will be published in the ATFM Daily Plan (ADP), which will be distributed via e-mail to all stakeholder that provided their e-mail to Bangkok ATFMU one day before operations.

When GDP is active, ATS units and aircraft operators are requested to adhere to the procedure published in the AIP Thailand ENR 1.9 and Bangkok ATFMU User’s Manual.

12  POINT OF CONTACT

UnitContact Details

Live Fly Cell of Cope Tiger 2025

SQN.LDR.Toranin Metananta

Mobile: +668 3012 6364
E-mail: [email protected]

Bangkok Air Traffic Flow Management Unit

For ATFM Measures during Joint Military Exercise

Phone: +662 287 8024

E-mail: [email protected]

Website: http://atfm.aerothai.aero

AFTN: VTBBZDZX

Airspace Management Cell (Thailand)

For AUP/UUP

Phone: +662 307 2132

Mobile: +666 1402 4966

E-mail: [email protected]

Website: www.thaicmac.aerothai.aero

13  VALIDITY

This AIP Supplement supersedes AIP Supplement A10/25 and will remain current until 28 March 2025 at 1100 UTC. Any changes to this supplement will be notified through NOTAM.

14  EXERCISE AREA MAP
